Neuron 5 SRAM SX Eagle
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 639mm | 626mm | 596mm | 656mm | 587mm |
| Reach | 480mm | 455mm | 430mm | 510mm | 410mm |
| Headtube length | 125mm | 110mm | 100mm | 143mm | 90mm |
| Headtube angle | 66deg | 66deg | 66deg | 66deg | 66deg |
| BB height | — | — | — | — | — |
| BB drop | 38mm | 38mm | 18mm | 38mm | 18mm |
| Trail | — | — | — | — | — |
| Fork length | — | — | — | — | — |
| Fork offset | — | — | — | — | — |
| Front center | — | — | — | — | — |
| Chainstay length | 440mm | 440mm | 430mm | 440mm | 430mm |
| Wheelbase | 1234mm | 1203mm | 1164mm | 1271mm | 1139mm |
| Top tube | 639mm | 611mm | 579mm | 674mm | 556mm |
| Standover height | 766mm | 760mm | 760mm | 772mm | 756mm |
| Seat tube length | 460mm | 425mm | 390mm | 500mm | 390mm |
| Seat tube angle | 76deg | 76deg | 76deg | 76deg | 76deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | 170mm | 170mm | 165mm | 170mm | 165mm |
| Stem length | 50mm | 50mm | 50mm | 50mm | 50mm |
| Handlebar width | 760mm | 760mm | 740mm | 760mm | 740mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | 170mm | 170mm | 150mm | 170mm | 125mm |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Canyon Neuron aluminium full-suspension frame (AL), 12x148mm rear axle
Suspension
Rear shock

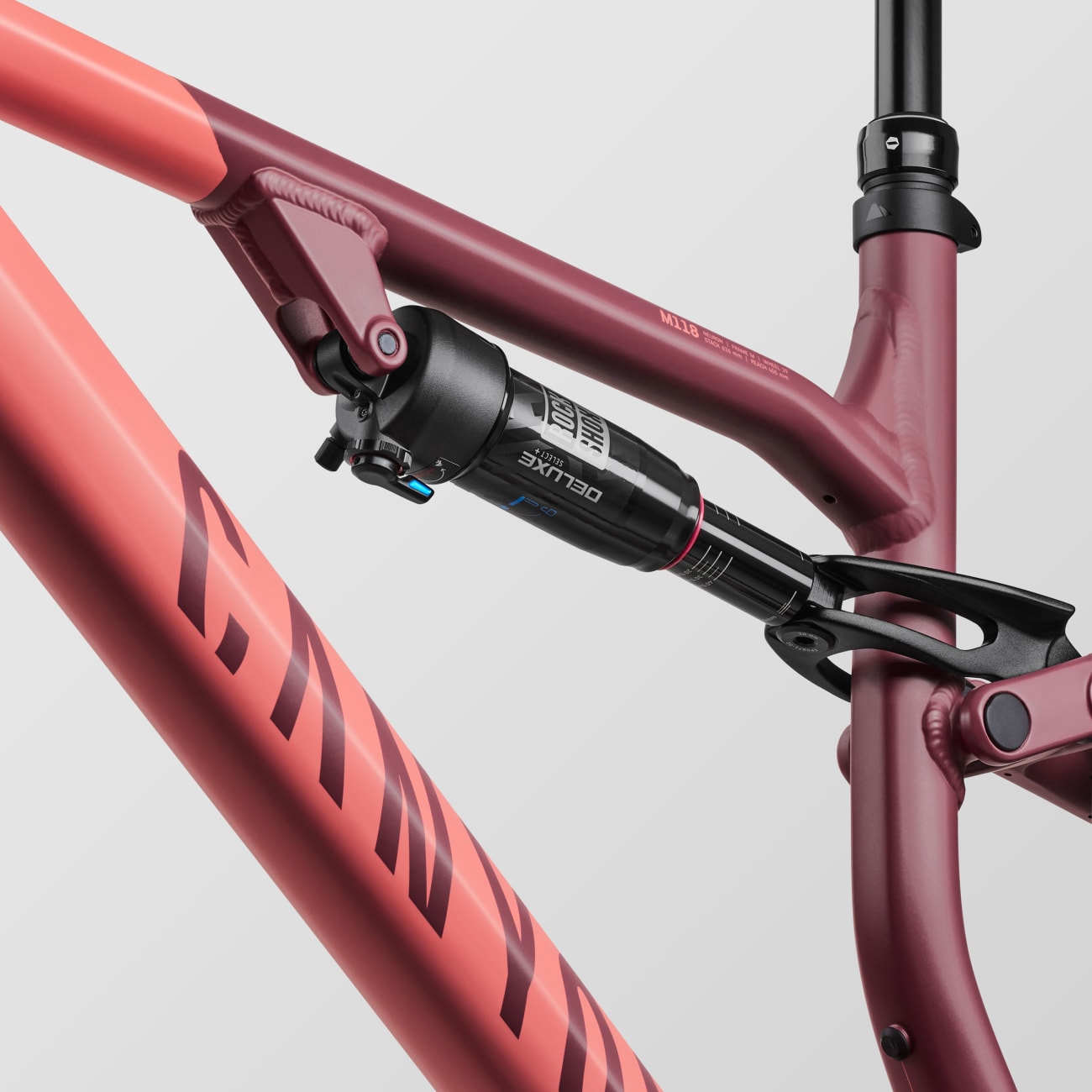

RockShox Deluxe Select+
Fork

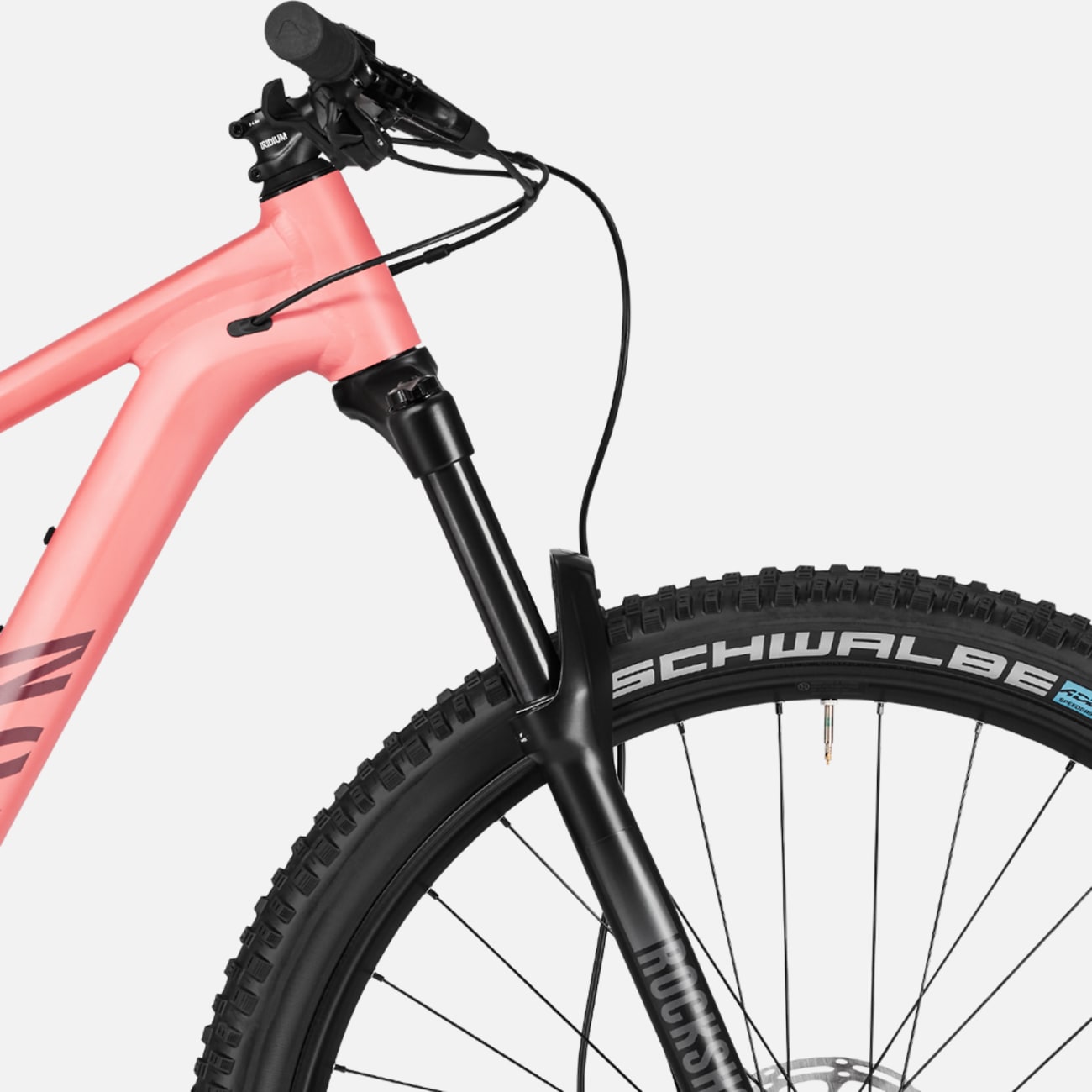

RockShox Recon Silver RL, 140mm travel, 15x110mm, 32mm stanchions, tapered steerer (1 1/8"–1.5")
Brakes
Front brake
SRAM Level T hydraulic disc
Rear brake
SRAM Level T hydraulic disc
Front rotor
SRAM Centerline Rounded, 180mm
Rear rotor
SRAM Centerline Rounded, 180mm
Drivetrain
Shift levers
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle
Cassette

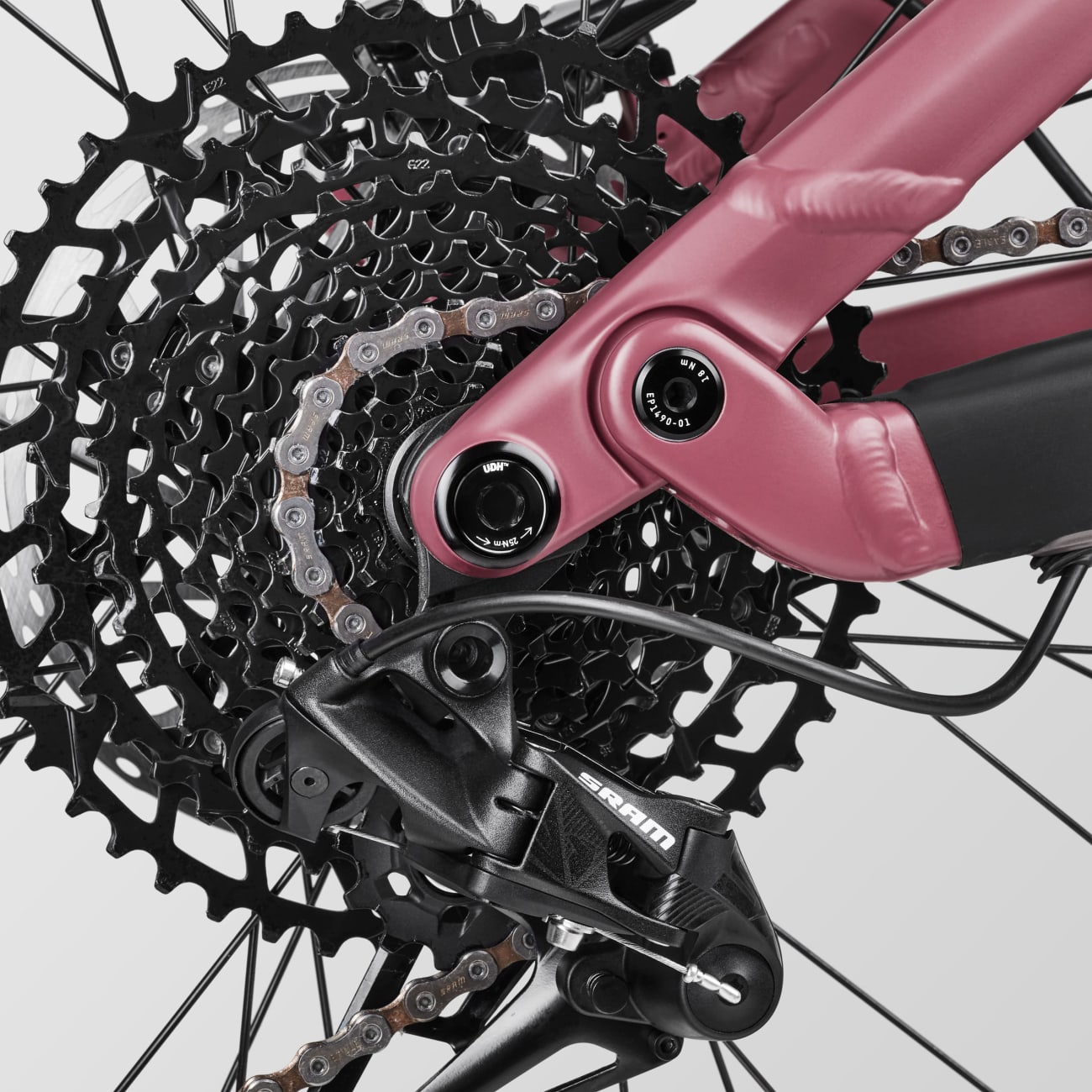

SRAM PG-1230 Eagle, 12-speed, 11-50T

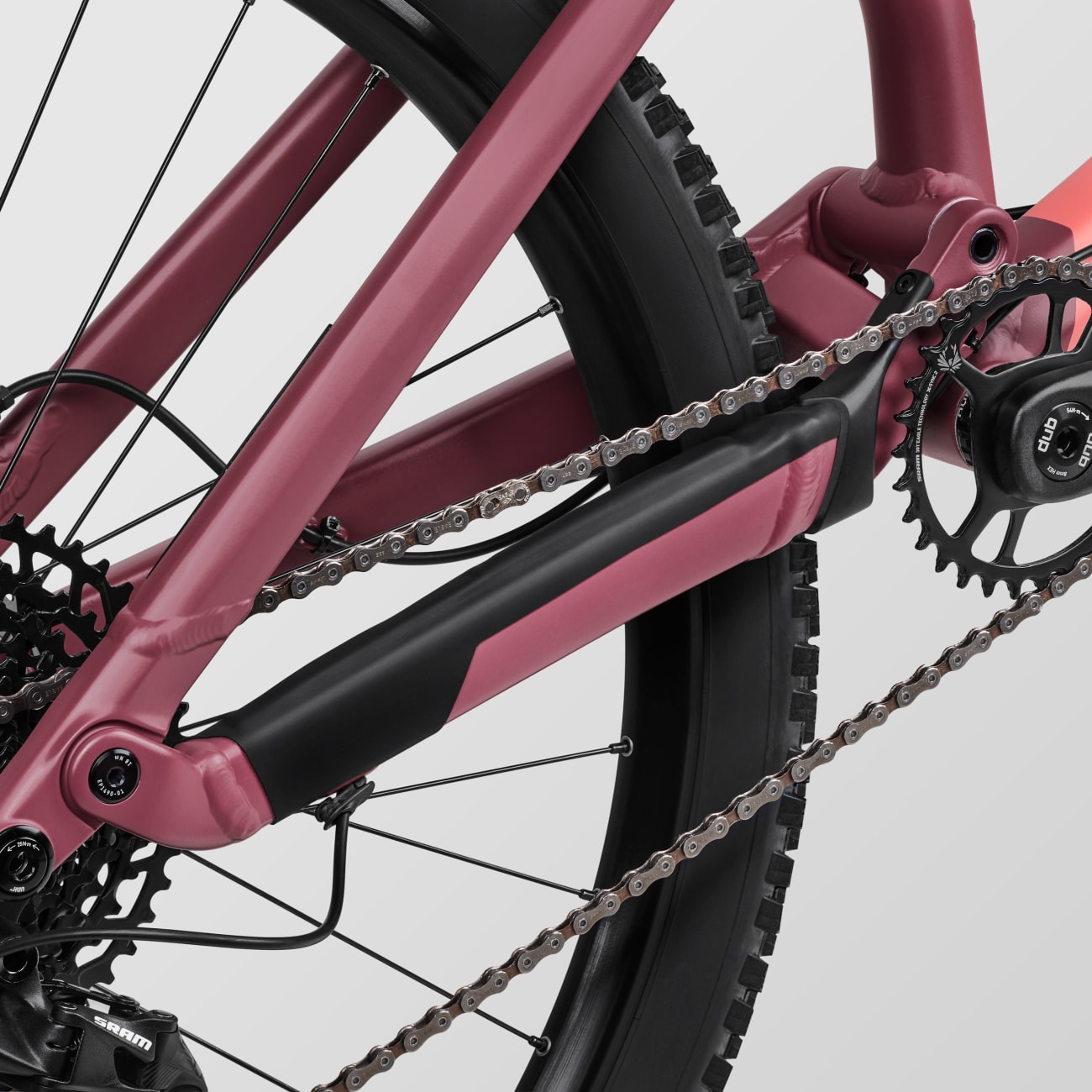

Chain
SRAM SX Eagle
Crankset

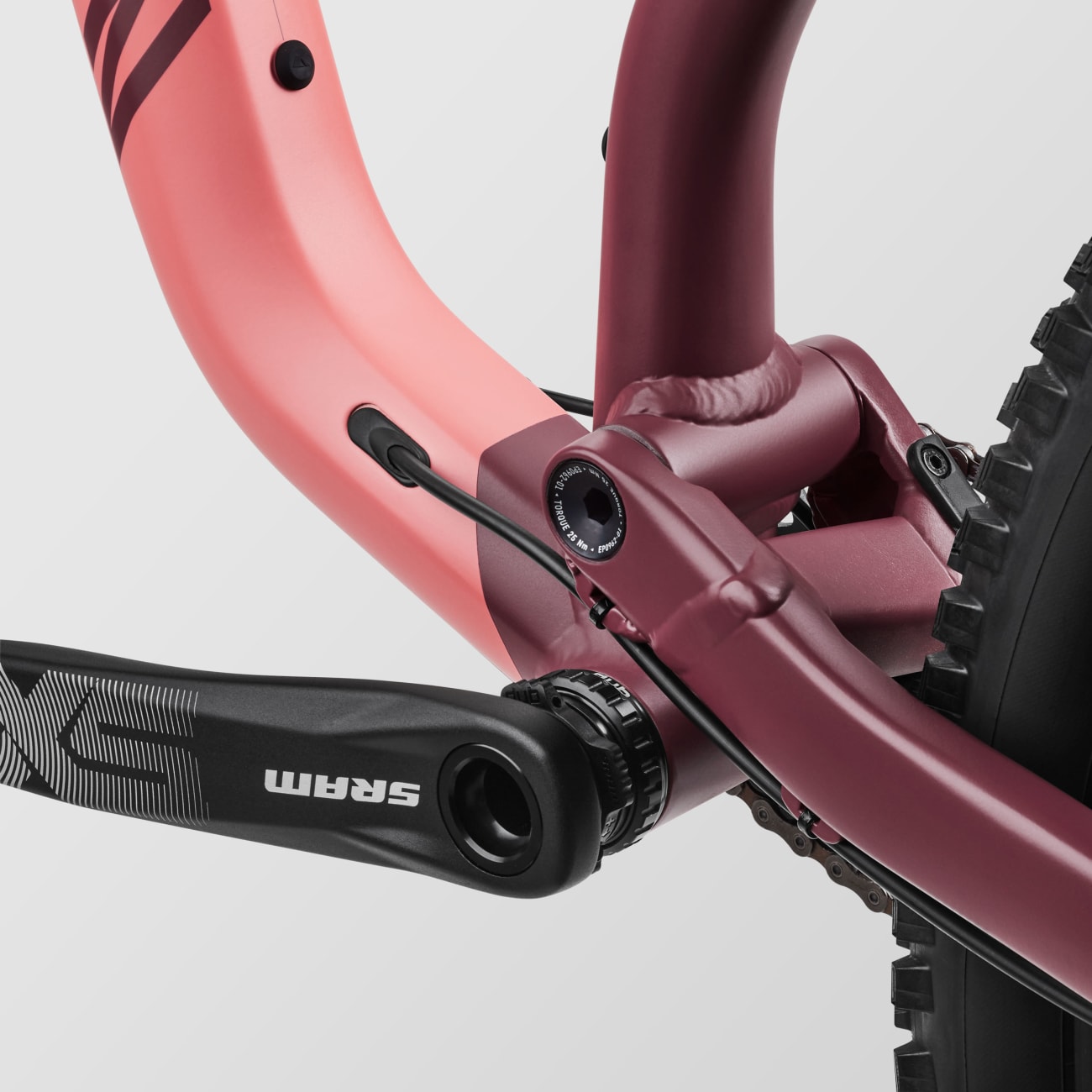

SRAM SX Eagle, 1x
Bottom bracket
SRAM DUB BSA, BSA 73
Cockpit
Stem
Iridium Stem (1 1/8" steerer)
Handlebars
Iridium Flatbar, aluminium, 5mm rise
Grips
Canyon Lock-On
Saddle
Selle Italia X3
Seatpost
Canyon SP0081, 30.9mm, aluminium
Wheels & Tires
Front wheel
Iridium 30, 15x110mm, Center Lock, 30mm internal width
Rear wheel
Iridium 30, 12x148mm, Center Lock, 30mm internal width
Front tire
Schwalbe Nobby Nic, 2.4"
Rear tire
Schwalbe Wicked Will, 2.4"
