Canyon
Lux Trail CF 6 Shimano Deore M6100 12-Speed (3993)
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 612mm | 598mm | 589mm | 626mm | 589mm |
| Reach | 480mm | 460mm | 438mm | 500mm | 412mm |
| Headtube length | 115mm | 100mm | 90mm | 130mm | 90mm |
| Headtube angle | 67deg | 67deg | 67deg | 67deg | 67deg |
| BB height | — | — | — | — | — |
| BB drop | 38mm | 38mm | 38mm | 38mm | 38mm |
| Trail | — | — | — | — | — |
| Fork length | — | — | — | — | — |
| Fork offset | — | — | — | — | — |
| Front center | — | — | — | — | — |
| Chainstay length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1206mm | 1180mm | 1155mm | 1232mm | 1129mm |
| Top tube | 633mm | 609mm | 585mm | 656mm | 559mm |
| Standover height | 777mm | 772mm | 768mm | 783mm | 768mm |
| Seat tube length | 450mm | 420mm | 420mm | 480mm | 415mm |
| Seat tube angle | 76deg | 76deg | 76deg | 76deg | 76deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | 175mm | 175mm | 170mm | 175mm | 170mm |
| Stem length | 50mm | 50mm | 50mm | 50mm | 50mm |
| Handlebar width | 760mm | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | 150mm | 150mm | 125mm | 150mm | 100mm |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Canyon Lux Trail CF (carbon), 12x148mm rear axle
Suspension
Rear shock
FOX Float SL Performance Elite Remote

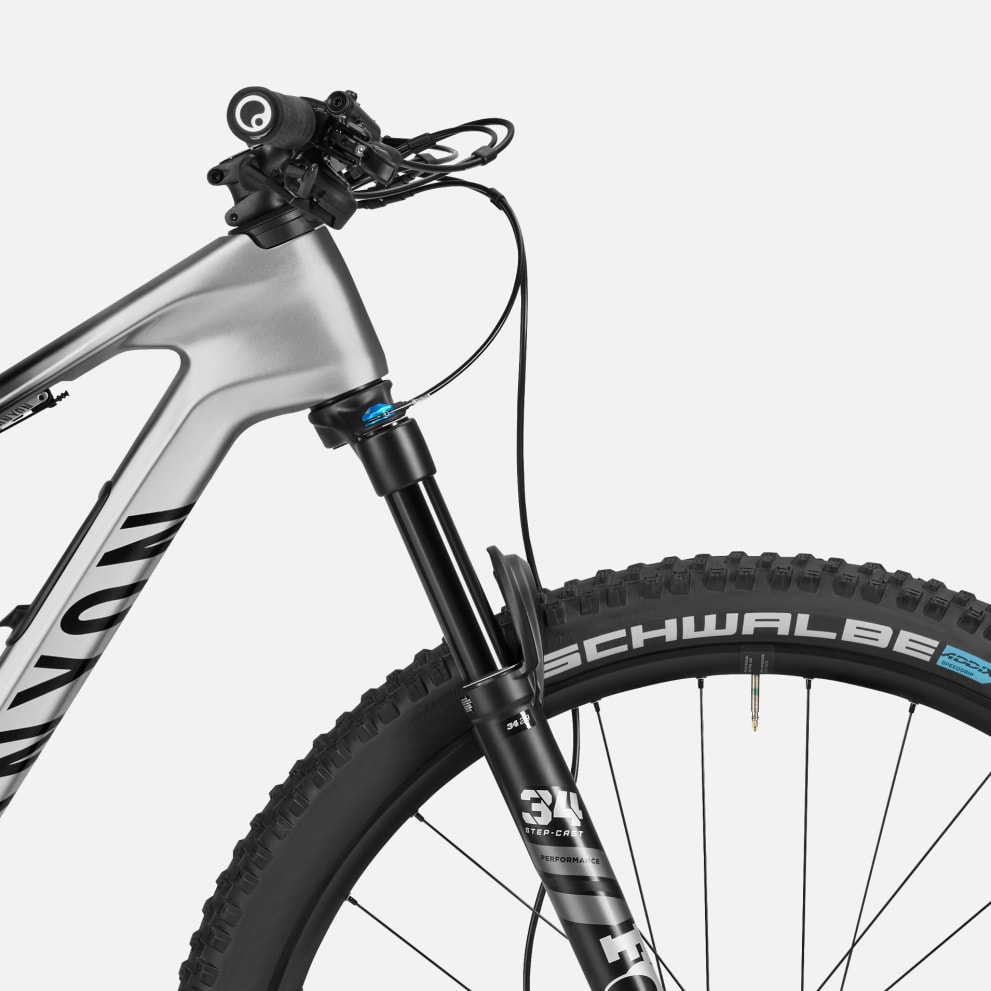

Fork
FOX 34 Stepcast Performance, 120mm travel, 3-position remote, 44mm offset, 15x110mm axle, tapered 1 1/8"–1.5" steerer
Brakes
Front brake
Shimano SLX M7120, 4-piston hydraulic disc
Rear brake
Shimano SLX M7110, 2-piston hydraulic disc
Front rotor
Shimano RT66, 180mm
Rear rotor
Shimano RT66, 160mm
Drivetrain
Shift levers
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100, 12-speed (long cage)
Cassette
Shimano Deore M6100, 12-speed, 10-51T
Chain
Shimano Deore M6100, 12-speed
Crankset
Shimano Deore M6120, 1x
Bottom bracket
Token TK878EX, BSA 68/73
Cockpit

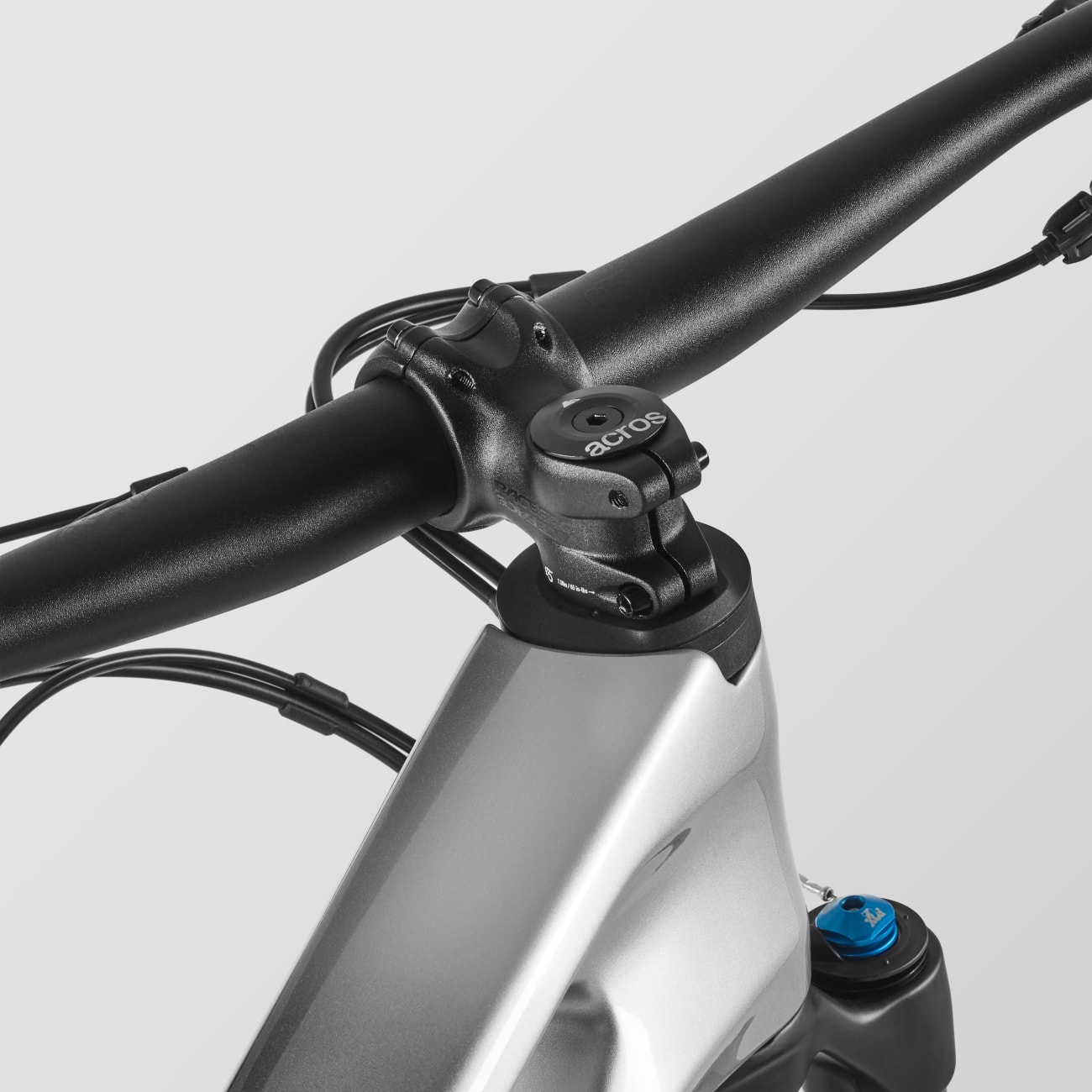

Stem
Race Face Ride, 35.0mm clamp
Handlebars
Race Face Ride Riserbar, 35.0mm clamp, 10mm rise
Grips
Ergon GXR
Saddle
Ergon SM10 Sport (Men)
Seatpost
FOX Transfer SL Performance Elite, 31.6mm (aluminium)
Wheels & Tires
Front wheel
DT Swiss AM LN 370, alloy rim, 30mm internal, 15x110mm, 6-bolt
Rear wheel
DT Swiss AM LN 370, alloy rim, 30mm internal, 12x148mm, 6-bolt
Front tire
Schwalbe Wicked Will SR TLE EVO, 2.4"
Rear tire
Schwalbe Racing Ralph SG TLE EVO, 2.35"
