Endurace CF 7 Shimano 105 12sp
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 2XL | 2XS | 3XS | L | M | S | XL | XS |
|---|---|---|---|---|---|---|---|---|
| Stack | 656mm | 529mm | 510mm | 611mm | 590mm | 568mm | 637mm | 548mm |
| Reach | 415mm | 354mm | 350mm | 387mm | 378mm | 375mm | 405mm | 370mm |
| Headtube length | 232mm | 138mm | 123mm | 186mm | 165mm | 146mm | 212mm | 129mm |
| Headtube angle | 73.3deg | 71.5deg | 70.3deg | 73deg | 72.75deg | 71.8deg | 73.3deg | 70.8deg |
| BB height | — | — | — | — | — | — | — | — |
| BB drop | 73mm | 60mm | 60mm | 73mm | 73mm | 73mm | 73mm | 73mm |
| Trail | — | — | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — | — | — |
| Front center | — | — | — | — | — | — | — | — |
| Chainstay length | 415mm | 405mm | 405mm | 415mm | 415mm | 415mm | 415mm | 415mm |
| Wheelbase | 1044mm | 958mm | 959mm | 1006mm | 993mm | 993mm | 1029mm | 991mm |
| Top tube | 609mm | 511mm | 501mm | 568mm | 553mm | 543mm | 594mm | 532mm |
| Standover height | 891mm | 734mm | 708mm | 840mm | 815mm | 788mm | 867mm | 763mm |
| Seat tube length | 612mm | 432mm | 402mm | 552mm | 522mm | 492mm | 582mm | 462mm |
| Seat tube angle | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg |
Spec geometry
| Geometry | 2XL | 2XS | 3XS | L | M | S | XL | XS |
|---|---|---|---|---|---|---|---|---|
| Crank length | 175mm | 170mm | 170mm | 172.5mm | 172.5mm | 170mm | 175mm | 170mm |
| Stem length | 120mm | 80mm | 70mm | 110mm | 100mm | 90mm | 110mm | 80mm |
| Handlebar width | — | — | — | — | — | — | — | — |
| Handlebar reach | 74mm | 74mm | 74mm | 74mm | 74mm | 74mm | 74mm | 74mm |
| Handlebar drop | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
| Saddle width | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame

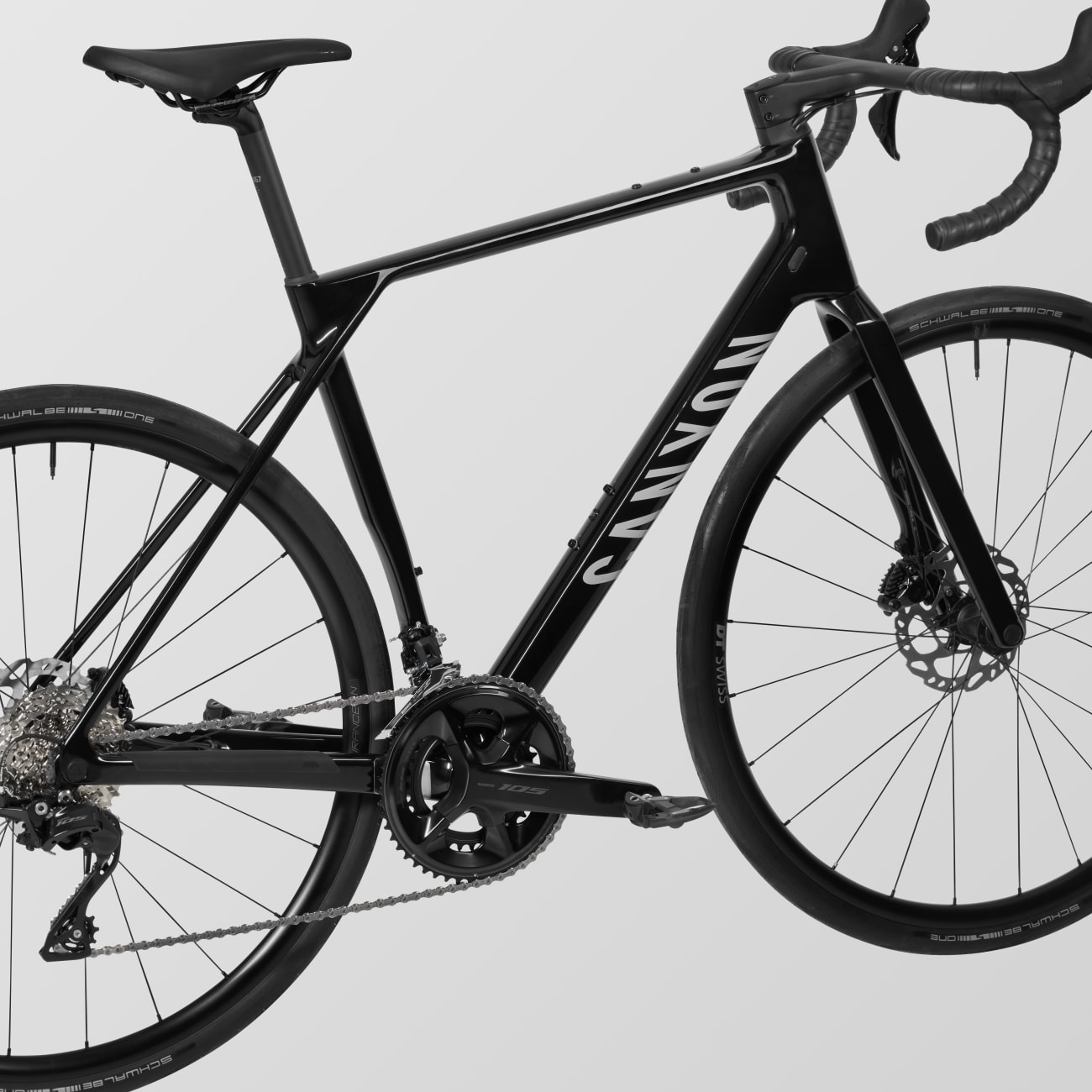

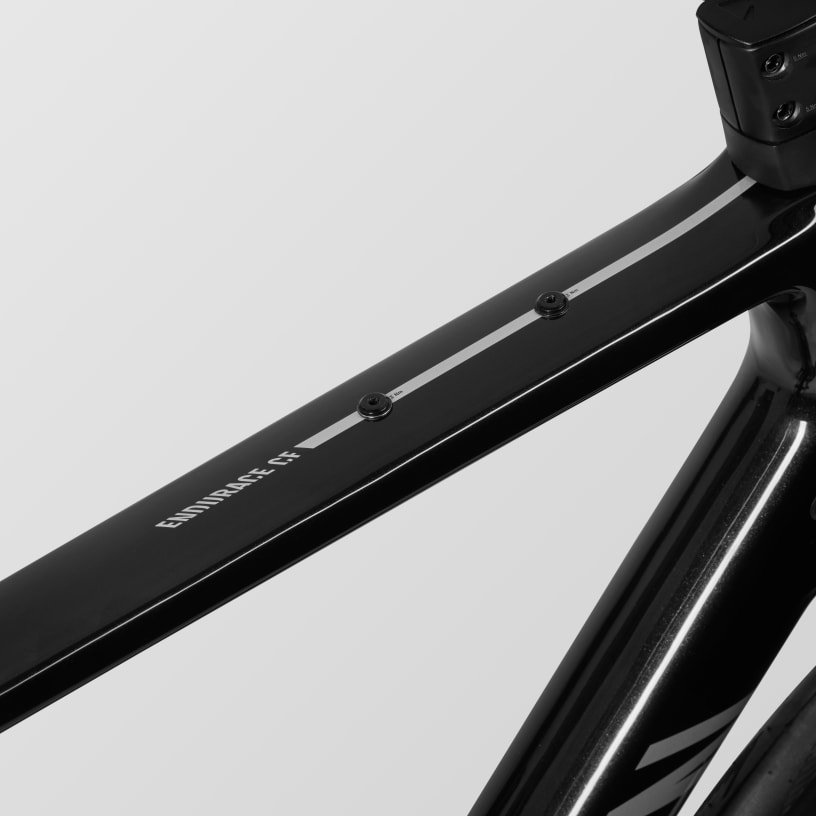

Canyon Endurace CF (Carbon (CF), 12x142mm rear axle, 35mm tire clearance)
Suspension
Fork
Canyon FK0110 CF Disc (Carbon (CF), 12x100mm front axle, 1 1/4" steerer, 35mm tire clearance)
Brakes
Front brake
Shimano 105 ST-R7120 hydraulic disc (2-piston)
Rear brake
Shimano 105 ST-R7120 hydraulic disc (2-piston)
Front rotor
Shimano SM-RT70, 160mm (Center Lock)
Rear rotor
Shimano SM-RT70, 160mm (Center Lock)
Drivetrain
Shift levers
Shimano 105 ST-R7120 (hydraulic STI levers, 2x12)
Rear derailleur
Shimano 105 RD-R7100, 12-speed
Front derailleur
Shimano 105 FD-R7100
Cassette
Shimano CS-HG710, 12-speed, 11-36T
Chain
Shimano Deore M6100
Crankset
Shimano 105 R7100 (2x)
Bottom bracket
Shimano Pressfit BB-RS500 (PF86)
Cockpit
Stem

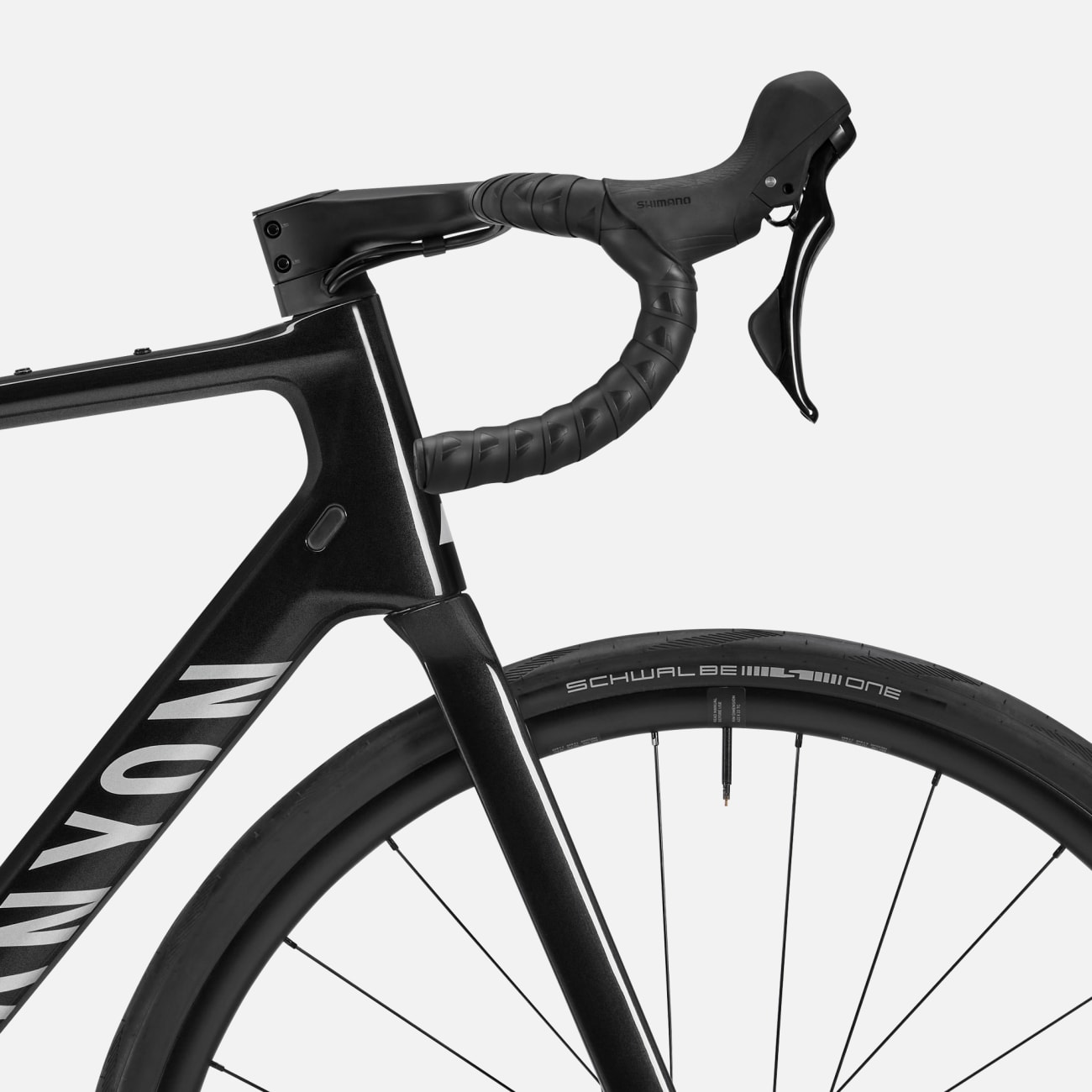

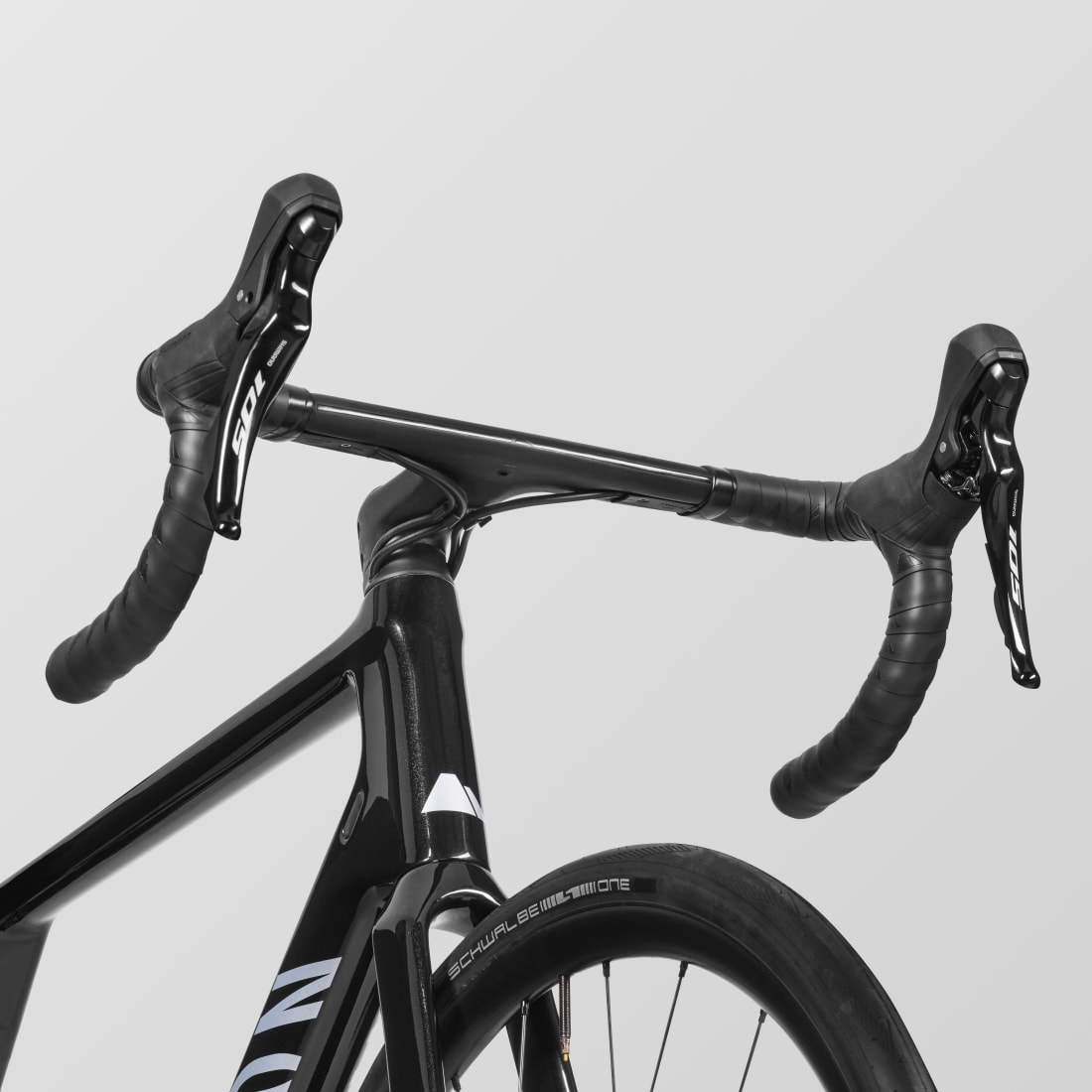

Canyon CP0030 Aerocockpit (integrated)
Handlebars
Canyon CP0030 Aerocockpit (integrated)
Saddle
Selle Royal SRX
Seatpost
Canyon SP0057 VCLS, 27.2mm, 20mm setback
Wheels & Tires
Front wheel
DT Swiss Endurance LN (12x100mm, Center Lock, 22mm rim height, 22mm internal, alloy)
Rear wheel
DT Swiss Endurance LN SH11 (12x142mm, Center Lock, 22mm rim height, 22mm internal, alloy)
Front tire

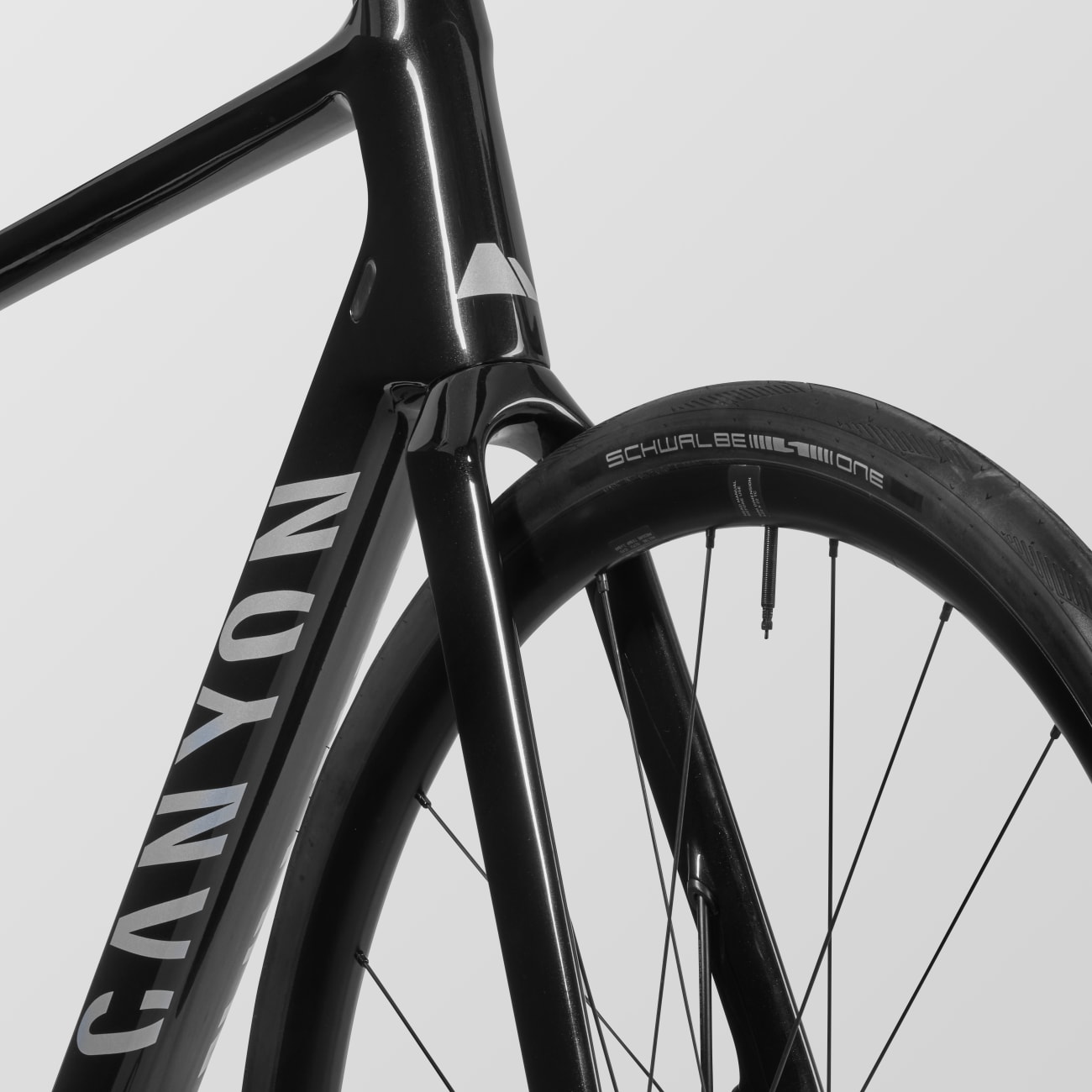

Schwalbe One, 32mm
Rear tire
Schwalbe One, 32mm
