Canyon
Aeroad CF SLX 7 Di2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 2XL | 2XS | L | M | S | XL | XS |
|---|---|---|---|---|---|---|---|
| Stack | 624mm | 498mm | 580mm | 560mm | 539mm | 606mm | 520mm |
| Reach | 429mm | 372mm | 401mm | 393mm | 390mm | 419mm | 378mm |
| Headtube length | 206mm | 88mm | 162mm | 142mm | 121mm | 188mm | 107mm |
| Headtube angle | 73.8deg | 70deg | 73.3deg | 73.25deg | 72.8deg | 73.5deg | 71.2deg |
| BB height | — | — | — | — | — | — | — |
| BB drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — | — |
| Front center | — | — | — | — | — | — | — |
| Chainstay length | 415mm | 410mm | 413mm | 410mm | 410mm | 415mm | 410mm |
| Wheelbase | 1042mm | 975mm | 1003mm | 988mm | 982mm | 1029mm | 979mm |
| Top tube | 609mm | 516mm | 569mm | 555mm | 546mm | 594mm | 529mm |
| Standover height | 874mm | 720mm | 828mm | 801mm | 775mm | 851mm | 748mm |
| Seat tube length | 621mm | 441mm | 561mm | 531mm | 501mm | 591mm | 471mm |
| Seat tube angle | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg | 73.5deg |
Spec geometry
| Geometry | 2XL | 2XS | L | M | S | XL | XS |
|---|---|---|---|---|---|---|---|
| Crank length | 175mm | 170mm | 172.5mm | 172.5mm | 170mm | 175mm | 170mm |
| Stem length | 120mm | 80mm | 110mm | 100mm | 90mm | 110mm | 90mm |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | -10mm | -10mm | -10mm | -10mm | -10mm | -10mm | -10mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Canyon Aeroad CF SLX (Carbon/CF), tyre clearance 32 mm, 12x142 mm rear axle
Suspension
Fork
Canyon FK0137 CF Disc (Carbon/CF), tyre clearance 32 mm, 12x100 mm axle
Brakes
Front brake
Shimano 105 R7170 hydraulic disc (2-piston)
Rear brake
Shimano 105 R7170 hydraulic disc (2-piston)
Front rotor
160 mm (Shimano SM-RT70, Center Lock)
Rear rotor
140 mm (Shimano rotor)
Drivetrain
Shift levers
Shimano 105 R7170 Di2 shift/brake levers
Rear derailleur
Shimano 105 Di2
Front derailleur
Shimano 105 Di2 FD-R7150
Cassette
Shimano 105 R7101, 12-speed, 11-34T
Chain
Shimano CN-M7100, 12-speed
Crankset
Shimano 105 crankset, 2x
Bottom bracket
Shimano Pressfit BB-RS500 (PF86)
Cockpit
Stem

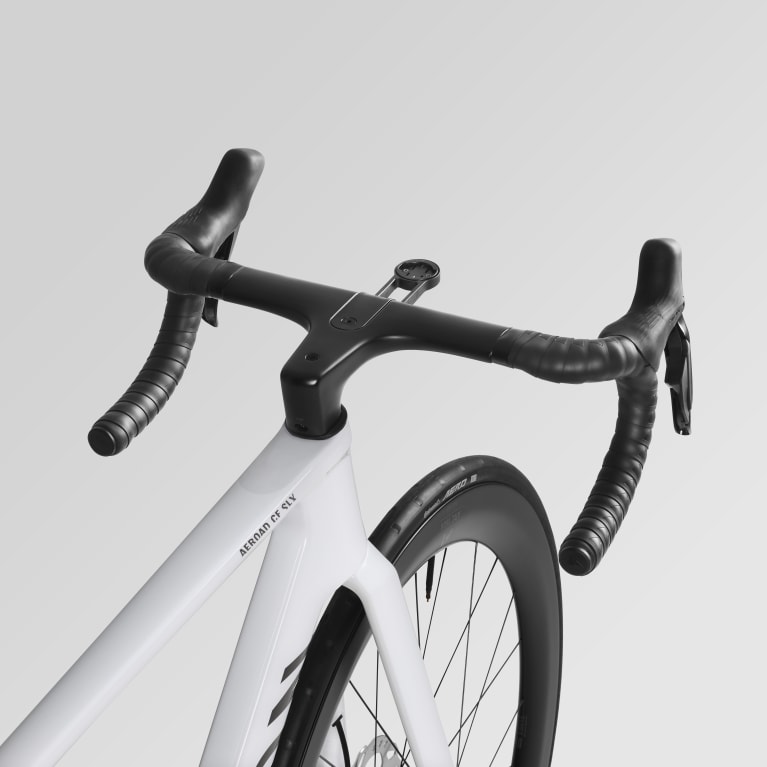

Canyon CP0048 integrated aero carbon cockpit
Handlebars
Canyon CP0048 integrated aero carbon cockpit
Saddle
Selle Italia SLR Boost Superflow S, 130 mm

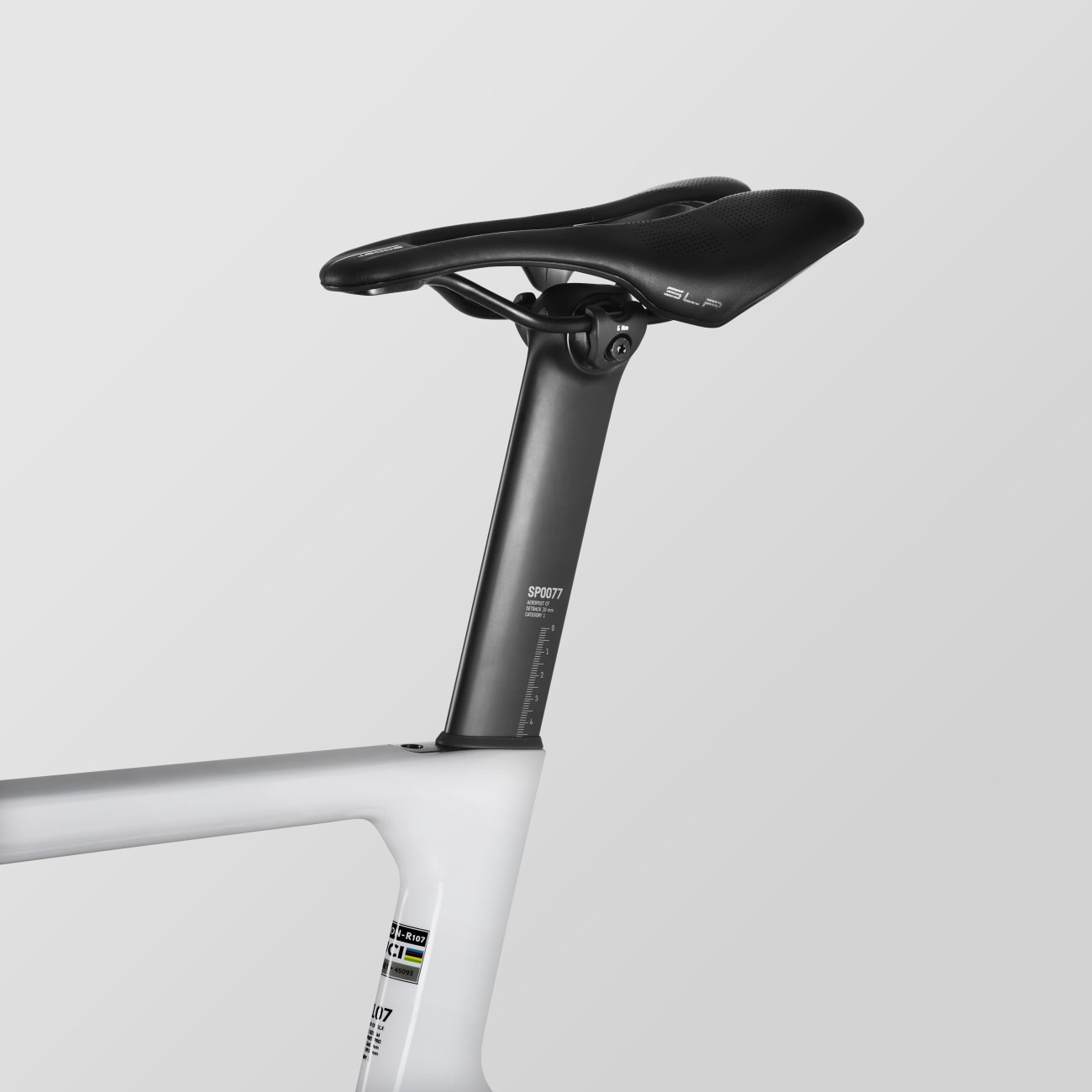

Seatpost
Canyon SP0077 carbon seatpost, -10 mm setback
Wheels & Tires
Front wheel
DT Swiss ARC 1600, carbon, 55 mm depth, 22 mm internal, Center Lock, 12x100 mm
Rear wheel
DT Swiss ARC 1600, carbon, 55 mm depth, 22 mm internal, Center Lock, 12x142 mm, Shimano HG freehub
Front tire
Continental Aero 111, 26 mm
Rear tire
Continental Grand Prix 5000 S TR, 28 mm
