Cannondale

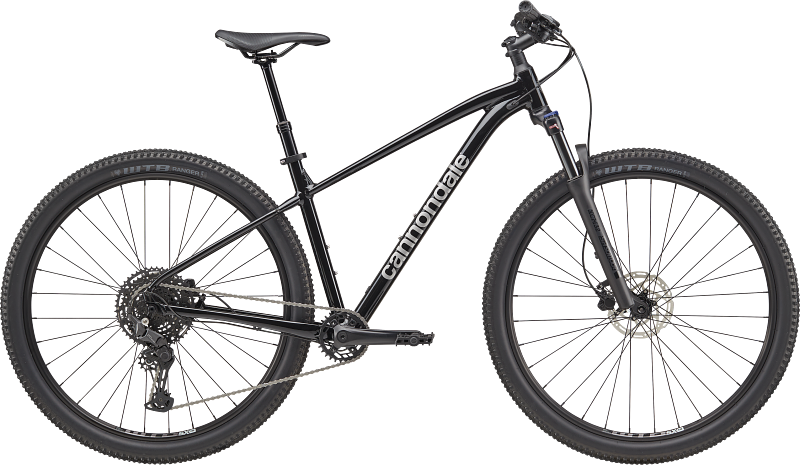

Trail 1
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
No geometry data available yet.
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
Suspension
Fork
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"); 80mm travel, 42mm offset (27.5")
Brakes
Front brake
Tektro M275 hydraulic disc
Rear brake
Tektro M275 hydraulic disc
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
Shimano CUES U6000, 10-speed
Rear derailleur
Shimano CUES U6000
Cassette
Shimano CUES, 10-speed, 11-48T
Chain
KMC X10, 10-speed
Crankset
Prowheel Charm 30T
Bottom bracket
ProWheel, square taper
Cockpit
Stem
Cannondale 4, 6061 Alloy, 31.8, 6°
Handlebars
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale
Saddle
Cannondale Trail
Seatpost
JD Dropper, internal routing, 31.6, 130mm
Wheels & Tires
Front wheel
WTB SX19, 32h; Shimano TC500, 15x110mm; Stainless Steel, 14g
Rear wheel
WTB SX19, 32h; Shimano TC500, 12x142mm; Stainless Steel, 14g
Front tire
WTB Trail Boss Comp, 30 TPI — XS/S: 27.5x2.25
Rear tire
WTB Trail Boss Comp, 30 TPI — M/L/XL: 29x2.25
