Cannondale

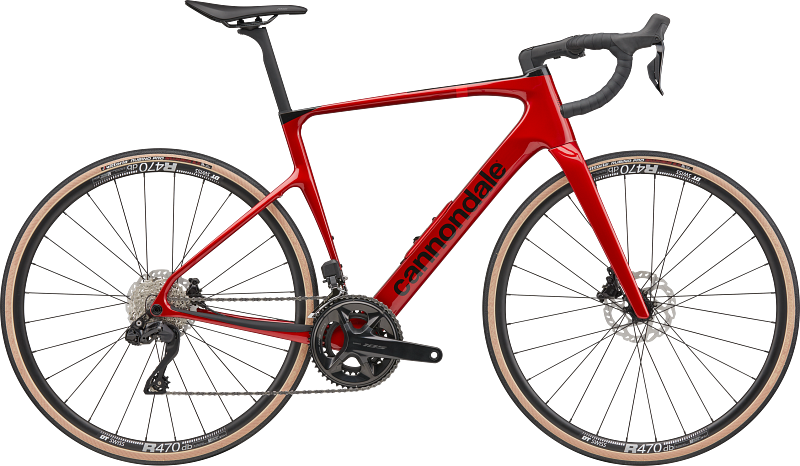

Synapse Carbon 4
Gallery
Images
action
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Stack | 510mm | 530mm | 550mm | 570mm | 590mm | 610mm | 640mm |
| Reach | 366mm | 371mm | 376mm | 381mm | 387mm | 393mm | 402mm |
| Headtube length | 91mm | 108mm | 127mm | 150mm | 171mm | 196mm | 227mm |
| Headtube angle | 69.8deg | 70.9deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg |
| BB height | 278mm | 278mm | 278mm | 280mm | 280mm | 283mm | 283mm |
| BB drop | 75mm | 75mm | 75mm | 73mm | 73mm | 70mm | 70mm |
| Trail | 71mm | 64mm | 61mm | 61mm | 61mm | 61mm | 61mm |
| Fork length | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front center | 589mm | 592mm | 600mm | 612mm | 624mm | 638mm | 657mm |
| Chainstay length | 425mm | 425mm | 425mm | 425mm | 430mm | 430mm | 430mm |
| Wheelbase | 1003mm | 1005mm | 1013mm | 1026mm | 1044mm | 1058mm | 1077mm |
| Top tube | 522mm | 533mm | 544mm | 555mm | 567mm | 580mm | 598mm |
| Standover height | 714mm | 722mm | 752mm | 785mm | 815mm | 843mm | 878mm |
| Seat tube length | 407mm | 407mm | 443mm | 480mm | 520mm | 550mm | 590mm |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg |
Spec geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Crank length | 165mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 80mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Handlebar width | 400mm | 400mm | 400mm | 420mm | 420mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
Suspension
Fork
Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Brakes
Front brake
Shimano 105 R7170 hydraulic disc (flat mount)
Rear brake
Shimano 105 R7170 hydraulic disc (flat mount)
Front rotor
Shimano RT70, 160mm (Center Lock)
Rear rotor
Shimano RT70, 160mm (Center Lock)
Drivetrain
Shift levers
Shimano 105 Di2 R7170, wireless, 12-speed
Rear derailleur
Shimano 105 Di2 7150
Front derailleur
Shimano 105 Di2 7150, braze-on
Cassette
Shimano 105 7100, 12-speed, 11-34T
Chain
Shimano 105 7100, 12-speed
Crankset
Shimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5mm (54-56cm), 175mm (58-61cm)
Bottom bracket
Shimano BSA 68
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48cm), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
Handlebars
Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Vento Argo X5, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)
Wheels & Tires
Front wheel
DT Swiss R470 DB, 28h; Shimano RS470, 12x100mm, Center Lock; Stainless Steel, 14g
Rear wheel
DT Swiss R470 DB, 28h; Shimano RS470, 12x142mm, Center Lock; Stainless Steel, 14g
Front tire
Vittoria Rubino Pro IV, 700x32c
Rear tire
Vittoria Rubino Pro IV, 700x32c
