Cannondale

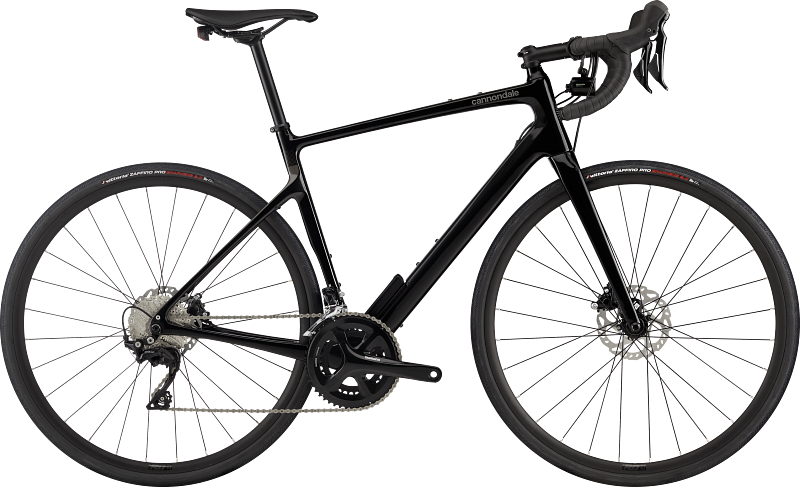

Synapse Carbon 3 L
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Stack | 510mm | 530mm | 550mm | 570mm | 590mm | 610mm | 640mm |
| Reach | 366mm | 371mm | 376mm | 381mm | 387mm | 393mm | 402mm |
| Headtube length | 91mm | 108mm | 127mm | 150mm | 171mm | 196mm | 227mm |
| Headtube angle | 69.8deg | 70.9deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg |
| BB height | 278mm | 278mm | 278mm | 280mm | 280mm | 283mm | 283mm |
| BB drop | 75mm | 75mm | 75mm | 73mm | 73mm | 70mm | 70mm |
| Trail | 71mm | 64mm | 61mm | 61mm | 61mm | 61mm | 61mm |
| Fork length | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front center | 589mm | 592mm | 600mm | 612mm | 624mm | 638mm | 657mm |
| Chainstay length | 425mm | 425mm | 425mm | 425mm | 430mm | 430mm | 430mm |
| Wheelbase | 1003mm | 1005mm | 1013mm | 1026mm | 1044mm | 1058mm | 1077mm |
| Top tube | 522mm | 533mm | 544mm | 555mm | 567mm | 580mm | 598mm |
| Standover height | 714mm | 722mm | 752mm | 785mm | 815mm | 843mm | 878mm |
| Seat tube length | 407mm | 407mm | 443mm | 480mm | 520mm | 550mm | 590mm |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg |
Spec geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount disc, 12x142mm thru-axle, internal routing w/ Switch Plate, removable fender bridge, hidden rack/fender mounts
Suspension
Fork
Cannondale Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, internal routing, hidden fender mounts
Brakes
Front brake
Shimano 105 hydraulic disc
Rear brake
Shimano 105 hydraulic disc
Front rotor
160mm Shimano RT70 (Center Lock)
Rear rotor
160mm Shimano RT70 (Center Lock)
Drivetrain
Shift levers
Shimano 105 hydraulic disc, 11-speed
Rear derailleur
Shimano 105 GS
Front derailleur
Shimano 105, braze-on
Cassette
Shimano 105, 11-speed, 11-34T
Chain
Shimano HG701, 11-speed
Crankset
Shimano RS510, 50/34
Bottom bracket
Shimano BSA (threaded)
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebars
Cannondale 3, 6061 Alloy, Compact
Grips
Fabric Knurl Bar Tape
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm (48-56) / 27.2x400mm (58-61)
Wheels & Tires
Front wheel
RD 2.1, 28h, 21mm inner width; Formula CL-712, 12x100mm, Center Lock; Stainless steel, 14g
Rear wheel
RD 2.1, 28h, 21mm inner width; Formula RXC-400, 12x142mm, Center Lock; Stainless steel, 14g
Front tire
Vittoria Zaffiro Pro Reflective, 700x30c
Rear tire
Vittoria Zaffiro Pro Reflective, 700x30c
Weight
Weight
9.55 kg / 21.1 lbs (56cm)
