Cannondale

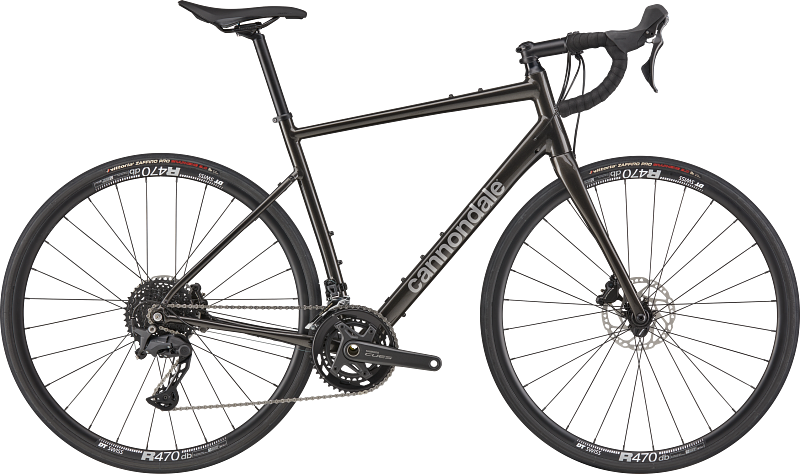

Synapse 2
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Stack | 510mm | 530mm | 550mm | 570mm | 590mm | 610mm | 640mm |
| Reach | 366mm | 371mm | 376mm | 381mm | 387mm | 393mm | 402mm |
| Headtube length | 91mm | 108mm | 127mm | 150mm | 171mm | 196mm | 227mm |
| Headtube angle | 69.8deg | 70.9deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg |
| BB height | 278mm | 278mm | 278mm | 280mm | 280mm | 283mm | 283mm |
| BB drop | 75mm | 75mm | 75mm | 73mm | 73mm | 70mm | 70mm |
| Trail | 71mm | 64mm | 61mm | 61mm | 61mm | 61mm | 61mm |
| Fork length | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front center | 589mm | 592mm | 600mm | 612mm | 624mm | 638mm | 657mm |
| Chainstay length | 425mm | 425mm | 425mm | 425mm | 430mm | 430mm | 430mm |
| Wheelbase | 1003mm | 1005mm | 1013mm | 1026mm | 1044mm | 1058mm | 1077mm |
| Top tube | 522mm | 533mm | 544mm | 555mm | 567mm | 580mm | 598mm |
| Standover height | 714mm | 722mm | 752mm | 785mm | 815mm | 843mm | 878mm |
| Seat tube length | 407mm | 407mm | 443mm | 480mm | 520mm | 550mm | 590mm |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg |
Spec geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale Synapse, SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat mount, 142x12 thru-axle, removable fender bridge, hidden rack/fender mounts
Suspension
Fork
Cannondale Synapse Carbon, integrated crown race, 12x100mm thru-axle, internal routing, flat mount brake, fender mounts
Brakes
Front brake
Shimano CUES hydraulic disc
Rear brake
Shimano CUES hydraulic disc
Front rotor
Shimano RT64, 160mm (Center Lock)
Rear rotor
Shimano RT64, 160mm (Center Lock)
Drivetrain
Shift levers
Shimano CUES U6030, 10-speed
Rear derailleur
Shimano CUES RD-U6020
Front derailleur
Shimano CUES FD-U6030
Cassette
Shimano CUES CS-LG300, 10-speed, 11-39T
Chain
Shimano CN-LG500, 10-speed
Crankset
Shimano CUES FC-U6040, 46/32
Bottom bracket
Shimano RS500
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebars
Cannondale 3, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Wheels & Tires
Front wheel
DT Swiss R470 DB, 28h, tubeless compatible; Formula CL-712, 12x100mm, Center Lock; Stainless steel, 14g
Rear wheel
DT Swiss R470 DB, 28h, tubeless compatible; Formula RXC-400, 12x142mm, Center Lock; Stainless steel, 14g
Front tire
Vittoria Zaffiro Pro V, 700x30c, reflective strip
Rear tire
Vittoria Zaffiro Pro V, 700x30c, reflective strip
