Cannondale

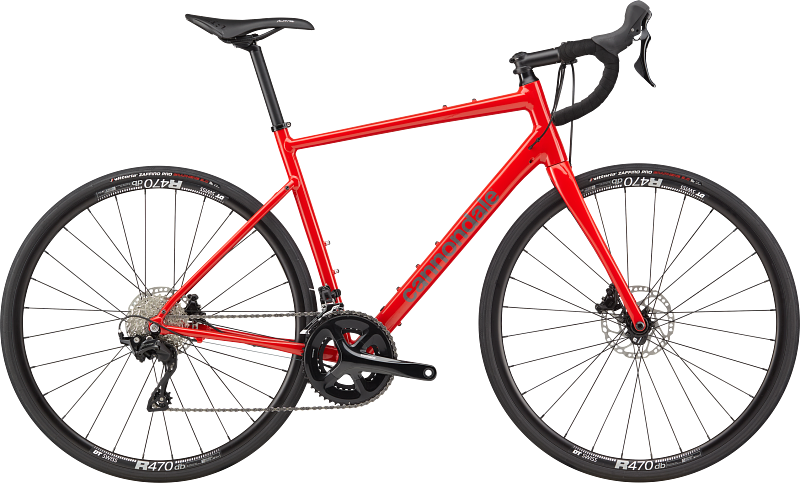

Synapse 1
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Stack | 510mm | 530mm | 550mm | 570mm | 590mm | 610mm | 640mm |
| Reach | 366mm | 371mm | 376mm | 381mm | 387mm | 393mm | 402mm |
| Headtube length | 91mm | 108mm | 127mm | 150mm | 171mm | 196mm | 227mm |
| Headtube angle | 69.8deg | 70.9deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg | 71.3deg |
| BB height | 278mm | 278mm | 278mm | 280mm | 280mm | 283mm | 283mm |
| BB drop | 75mm | 75mm | 75mm | 73mm | 73mm | 70mm | 70mm |
| Trail | 71mm | 64mm | 61mm | 61mm | 61mm | 61mm | 61mm |
| Fork length | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm | 393mm |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front center | 589mm | 592mm | 600mm | 612mm | 624mm | 638mm | 657mm |
| Chainstay length | 425mm | 425mm | 425mm | 425mm | 430mm | 430mm | 430mm |
| Wheelbase | 1003mm | 1005mm | 1013mm | 1026mm | 1044mm | 1058mm | 1077mm |
| Top tube | 522mm | 533mm | 544mm | 555mm | 567mm | 580mm | 598mm |
| Standover height | 714mm | 722mm | 752mm | 785mm | 815mm | 843mm | 878mm |
| Seat tube length | 407mm | 407mm | 443mm | 480mm | 520mm | 550mm | 590mm |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg |
Spec geometry
| Geometry | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Lightweight SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat mount, 142x12 thru-axle, hidden rack/fender mounts
Suspension
Fork
Synapse Carbon, integrated crown race, 12x100mm thru-axle, internal routing, flat mount brake, fender mounts
Brakes
Front brake
Shimano 105 7170 hydraulic disc
Rear brake
Shimano 105 7170 hydraulic disc
Front rotor
160mm Shimano RT64 Center Lock
Rear rotor
160mm Shimano RT64 Center Lock
Drivetrain
Shift levers
Shimano 105 7100, 12-speed
Rear derailleur
Shimano 105 7100, 12-speed
Front derailleur
Shimano 105 7100, braze-on
Cassette
Shimano 105 7100, 12-speed, 11-34
Chain
Shimano 105 7100, 12-speed
Crankset
Shimano RS520, 50/34
Bottom bracket
Shimano BB-RS500, BSA
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebars
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Aliante R5, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Wheels & Tires
Front wheel
DT Swiss R470 DB, 28h; Formula CL-712, 12x100mm, Center Lock; Stainless Steel, 14g
Rear wheel
DT Swiss R470 DB, 28h; Formula RXC-400, 12x142mm, Center Lock; Stainless Steel, 14g
Front tire
Zaffiro Pro Bright Black Reflective, 700x30c
Rear tire
Zaffiro Pro Bright Black Reflective, 700x30c
