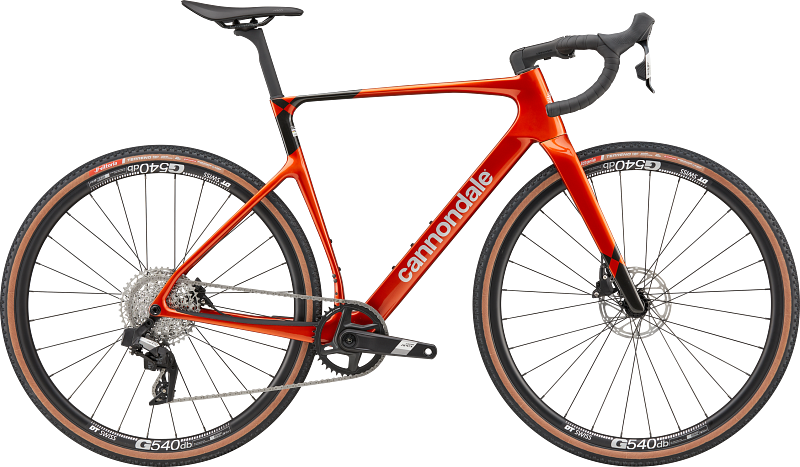

Cannondale
SuperX 4 AXS
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry

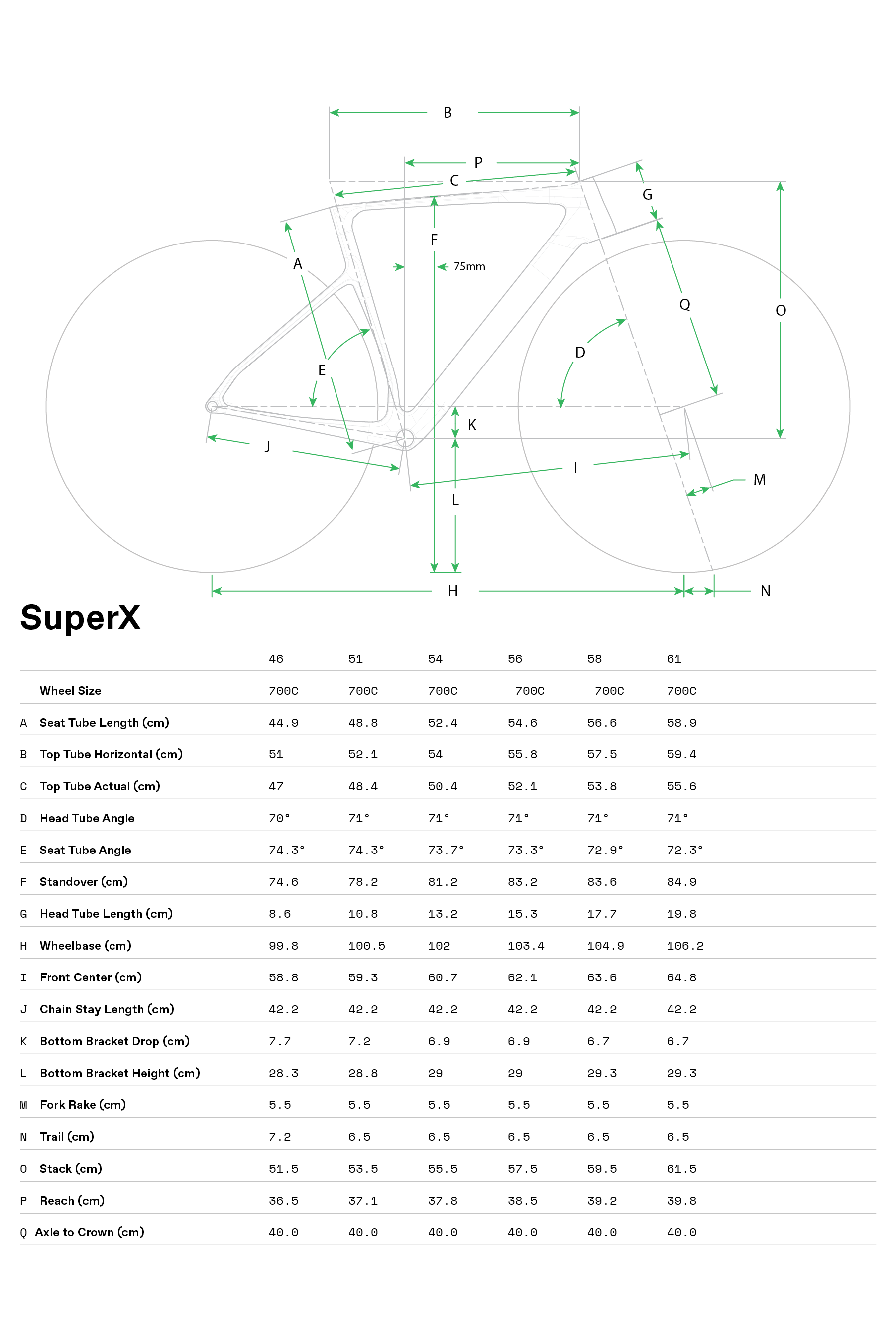

Frame geometry
| Geometry | 46 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 515mm | 535mm | 555mm | 575mm | 595mm | 615mm |
| Reach | 365mm | 371mm | 378mm | 385mm | 392mm | 398mm |
| Headtube length | 86mm | 108mm | 132mm | 153mm | 177mm | 198mm |
| Headtube angle | 70deg | 71deg | 71deg | 71deg | 71deg | 71deg |
| BB height | 283mm | 288mm | 290mm | 290mm | 293mm | 293mm |
| BB drop | 77mm | 72mm | 69mm | 69mm | 67mm | 67mm |
| Trail | 72mm | 65mm | 65mm | 65mm | 65mm | 65mm |
| Fork length | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front center | 588mm | 593mm | 607mm | 621mm | 636mm | 648mm |
| Chainstay length | 422mm | 422mm | 422mm | 422mm | 422mm | 422mm |
| Wheelbase | 998mm | 1005mm | 1020mm | 1034mm | 1049mm | 1062mm |
| Top tube | 510mm | 521mm | 540mm | 558mm | 575mm | 594mm |
| Standover height | 746mm | 782mm | 812mm | 832mm | 836mm | 849mm |
| Seat tube length | 449mm | 488mm | 524mm | 546mm | 566mm | 589mm |
| Seat tube angle | 74.3deg | 74.3deg | 73.7deg | 73.3deg | 72.9deg | 72.3deg |
Spec geometry
| Geometry | 46 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 90mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Handlebar width | 400mm | 400mm | 420mm | 420mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 0mm | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Suspension
Fork
SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Brakes
Front brake
SRAM Apex hydraulic disc
Rear brake
SRAM Apex hydraulic disc
Front rotor
SRAM CenterLine 160mm, Center Lock
Rear rotor
SRAM CenterLine 160mm, Center Lock
Drivetrain
Shift levers
SRAM Apex AXS, 12-speed
Rear derailleur
SRAM Apex AXS XPLR, 12-speed
Cassette
SRAM Apex XPLR PG-1231, 12-speed, 11-44T
Chain
SRAM Apex, 12-speed
Crankset
SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51cm), 172.5mm (54-56cm), 175mm (58-61cm)
Bottom bracket
SRAM DUB BSA Road 68 Wide
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51cm), 100mm (54-56cm), 110mm (58-61cm)
Handlebars
Vision Trimax Aero Alloy: 400mm (46-51cm), 420mm (54-61cm)
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Vento Argo X5, S-Alloy rails, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)
Wheels & Tires
Front wheel
DT Swiss G540, 24mm internal width, 28h, tubeless ready; DT Swiss 370, 12x100mm, Center Lock; DT Swiss Champion
Rear wheel
DT Swiss G540, 24mm internal width, 28h, tubeless ready; DT Swiss 370 LN Ratchet System, 12x142mm, Center Lock; DT Swiss Champion
Front tire
Vittoria Terreno T50, 700x40c, tubeless ready
Rear tire
Vittoria Terreno T50, 700x40c, tubeless ready
