Cannondale

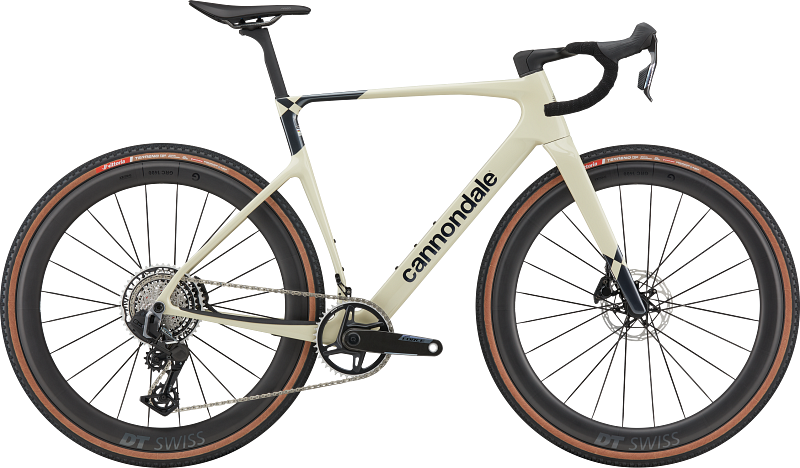

SuperX 1

Price TBDSKU: C17025U

Gallery

Images

Geometry

Frame geometry

Geometry	46	51	54	56	58	61
Stack	515mm	535mm	555mm	575mm	595mm	615mm
Reach	365mm	371mm	378mm	385mm	392mm	398mm
Headtube length	86mm	108mm	132mm	153mm	177mm	198mm
Headtube angle	70deg	71deg	71deg	71deg	71deg	71deg
BB height	283mm	288mm	290mm	290mm	293mm	293mm
BB drop	77mm	72mm	69mm	69mm	67mm	67mm
Trail	72mm	65mm	65mm	65mm	65mm	65mm
Fork length	400mm	400mm	400mm	400mm	400mm	400mm
Fork offset	55mm	55mm	55mm	55mm	55mm	55mm
Front center	588mm	593mm	607mm	621mm	636mm	648mm
Chainstay length	422mm	422mm	422mm	422mm	422mm	422mm
Wheelbase	998mm	1005mm	1020mm	1034mm	1049mm	1062mm
Top tube	510mm	521mm	540mm	558mm	575mm	594mm
Standover height	746mm	782mm	812mm	832mm	836mm	849mm
Seat tube length	449mm	488mm	524mm	546mm	566mm	589mm
Seat tube angle	74.3deg	74.3deg	73.7deg	73.3deg	72.9deg	72.3deg

Spec geometry

Geometry	46	51	54	56	58	61
Crank length	165mm	170mm	170mm	—	172.5mm	175mm
Stem length	90mm	90mm	100mm	100mm	110mm	120mm
Handlebar width	400mm	400mm	420mm	420mm	420mm	420mm
Handlebar reach	—	—	—	—	—	—
Handlebar drop	—	—	—	—	—	—
Saddle width	140mm	140mm	140mm	140mm	140mm	140mm
Dropper post travel	—	—	—	—	—	—
Seatpost offset	0mm	15mm	15mm	15mm	15mm	15mm

Specs

Full specs

Frame

Cannondale SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder

Suspension

Fork

Cannondale SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset

Brakes

Front brake

SRAM Force AXS hydraulic disc

Rear brake

SRAM Force AXS hydraulic disc

Front rotor

SRAM CenterLine X 160mm (centerlock)

Rear rotor

SRAM CenterLine X 160mm (centerlock)

Drivetrain

Shift levers

SRAM Force AXS, 13-speed

Rear derailleur

SRAM Force XPLR AXS, 13-speed

Cassette

SRAM Force XPLR XG-1371, 10-46T, 13-speed

Chain

SRAM Force 13-speed

Crankset

SRAM Force XPLR AXS Wide Power Meter: 165mm (46cm), 170mm (51-54cm), 172.5mm (58cm), 175mm (61cm)

Bottom bracket

SRAM DUB BSA Road 68 Wide

Cockpit

Stem

Cannondale SystemBar R-One (integrated bar/stem), full carbon, internal routing

Handlebars

Cannondale SystemBar R-One (integrated bar/stem), full carbon, internal routing: 90x400mm (46-51cm), 100x420mm (54-56cm), 110x420mm (58cm), 120x420mm (61cm)

Grips

Cannondale Bar Tape, 3.5mm

Saddle

Fizik Vento Argo X3, Kium rails, 140mm

Seatpost

Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Wheels & Tires

Front wheel

DT Swiss GRC 1400 DICUT, carbon, 24mm internal width, 50mm depth, 24h, tubeless ready; DT Swiss 240, centerlock, straight pull, 12x100mm, Ratchet EXP 36; DT Swiss Aero Comp

Rear wheel

DT Swiss GRC 1400 DICUT, carbon, 24mm internal width, 50mm depth, 24h, tubeless ready; DT Swiss 240, centerlock, straight pull, 12x142mm, Ratchet EXP 36; DT Swiss Aero Comp

Front tire

Vittoria Terreno T50, 700x40c, tubeless ready

Rear tire

Vittoria Terreno T50, 700x40c, tubeless ready
