Cannondale
SuperSix EVO 2
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 50.5mm | 52mm | 53.5mm | 55.5mm | 57.5mm | 59.5mm | 62.5mm |
| Reach | 37mm | 37.4mm | 37.8mm | 38.4mm | 38.9mm | 39.5mm | 40.3mm |
| Headtube length | 10mm | 11.4mm | 13mm | 15.4mm | 16.5mm | 18.8mm | 22mm |
| Headtube angle | 70.9deg | 71.2deg | 71.2deg | 71.2deg | 73deg | 73deg | 73deg |
| BB height | 26.8mm | 26.8mm | 26.8mm | 27.1mm | 27.1mm | 27.3mm | 27.3mm |
| BB drop | 7.4mm | 7.4mm | 7.4mm | 7.2mm | 7.2mm | 6.9mm | 6.9mm |
| Trail | 6mm | 5.8mm | 5.8mm | 5.8mm | 5.8mm | 5.8mm | 5.8mm |
| Fork length | — | — | — | — | — | — | — |
| Fork offset | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 4.5mm | 4.5mm | 4.5mm |
| Front center | 58.2mm | 58.9mm | 59.8mm | 61.1mm | 59.4mm | 60.7mm | 62.4mm |
| Chainstay length | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm |
| Wheelbase | 98.1mm | 98.7mm | 99.6mm | 101mm | 99.4mm | 100.7mm | 102.4mm |
| Top tube | 51.2mm | 52mm | 52.8mm | 54.6mm | 56.2mm | 57.8mm | 60.3mm |
| Standover height | 69.8mm | 72.7mm | 75.6mm | 78.8mm | 80.7mm | 83.6mm | 86.6mm |
| Seat tube length | 40mm | 43.8mm | 47.7mm | 51.5mm | 53.4mm | 56.7mm | 60mm |
| Seat tube angle | 74.3deg | 74.3deg | 74.3deg | 73.7deg | 73.3deg | 72.9deg | 72.3deg |
Spec geometry
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Suspension
Fork
Cannondale SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Brakes
Front brake
Shimano Ultegra Di2 R8170 hydraulic disc (flat mount)
Rear brake
Shimano Ultegra Di2 R8170 hydraulic disc (flat mount)
Front rotor
160mm Shimano MT800 (Center Lock)
Rear rotor
140mm Shimano MT800 (Center Lock)
Drivetrain
Shift levers
Shimano Ultegra Di2 R8170, wireless, 2x12
Rear derailleur
Shimano Ultegra Di2 R8150
Front derailleur
Shimano Ultegra Di2 R8150
Cassette
Shimano Ultegra R8100, 11-30, 12-speed
Chain
Shimano Ultegra, 12-speed
Crankset
Shimano Ultegra R8100, 52/36
Bottom bracket
Shimano BB-RS500, BSA (68mm threaded)
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebars
Vision Trimax Carbon Aero
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Prologo Dimension STN NDR, Stainless Steel Rails
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Wheels & Tires
Front wheel

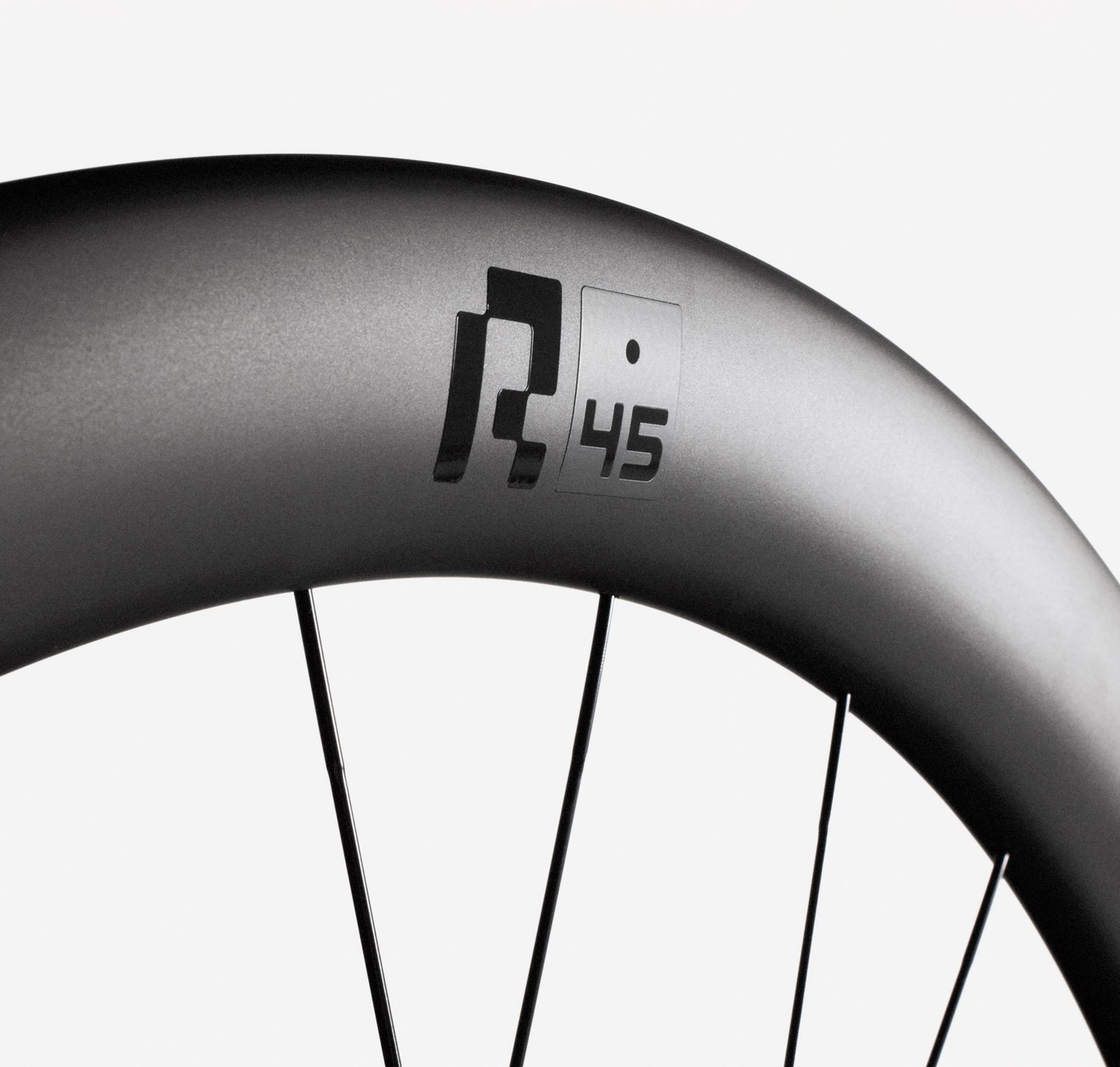

HollowGram R 45, Carbon, 24h, 45mm deep, 21mm inner width, tubeless ready; HollowGram Road, sealed bearing, 12x100mm, Center Lock, 24h, straight-pull; Formula Grand Forza, double-butted, straight-pull
Rear wheel
HollowGram R 45, Carbon, 28h, 45mm deep, 21mm inner width, tubeless ready; HollowGram Road, 12x142mm, Center Lock, Formula internals, 28h, straight-pull; Formula Grand Forza, double-butted, straight-pull
Front tire
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
Rear tire
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
