Cannondale
SuperSix EVO 1
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 50.5mm | 52mm | 53.5mm | 55.5mm | 57.5mm | 59.5mm | 62.5mm |
| Reach | 37mm | 37.4mm | 37.8mm | 38.4mm | 38.9mm | 39.5mm | 40.3mm |
| Headtube length | 10mm | 11.4mm | 13mm | 15.4mm | 16.5mm | 18.8mm | 22mm |
| Headtube angle | 70.9deg | 71.2deg | 71.2deg | 71.2deg | 73deg | 73deg | 73deg |
| BB height | 26.8mm | 26.8mm | 26.8mm | 27.1mm | 27.1mm | 27.3mm | 27.3mm |
| BB drop | 7.4mm | 7.4mm | 7.4mm | 7.2mm | 7.2mm | 6.9mm | 6.9mm |
| Trail | 6mm | 5.8mm | 5.8mm | 5.8mm | 5.8mm | 5.8mm | 5.8mm |
| Fork length | — | — | — | — | — | — | — |
| Fork offset | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 4.5mm | 4.5mm | 4.5mm |
| Front center | 58.2mm | 58.9mm | 59.8mm | 61.1mm | 59.4mm | 60.7mm | 62.4mm |
| Chainstay length | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm |
| Wheelbase | 98.1mm | 98.7mm | 99.6mm | 101mm | 99.4mm | 100.7mm | 102.4mm |
| Top tube | 51.2mm | 52mm | 52.8mm | 54.6mm | 56.2mm | 57.8mm | 60.3mm |
| Standover height | 69.8mm | 72.7mm | 75.6mm | 78.8mm | 80.7mm | 83.6mm | 86.6mm |
| Seat tube length | 40mm | 43.8mm | 47.7mm | 51.5mm | 53.4mm | 56.7mm | 60mm |
| Seat tube angle | 74.3deg | 74.3deg | 74.3deg | 73.7deg | 73.3deg | 72.9deg | 72.3deg |
Spec geometry
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Suspension
Fork
Cannondale SuperSix EVO Carbon fork, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Brakes
Front brake
SRAM Force AXS hydraulic disc
Rear brake
SRAM Force AXS hydraulic disc
Front rotor
160mm SRAM Paceline Center Lock
Rear rotor
160mm SRAM Paceline Center Lock
Drivetrain
Shift levers
SRAM Force AXS, 12-speed
Rear derailleur
SRAM Force AXS
Front derailleur
SRAM Force AXS, braze-on
Cassette
SRAM Force XG-1270, 10-33, 12-speed
Chain
SRAM Force, 12-speed
Crankset
SRAM Force AXS Power Meter, 48/35
Bottom bracket
SRAM DUB BSA
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebars
Vision Trimax Carbon Aero
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Prologo Dimension TiRox NDR
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Wheels & Tires
Front wheel

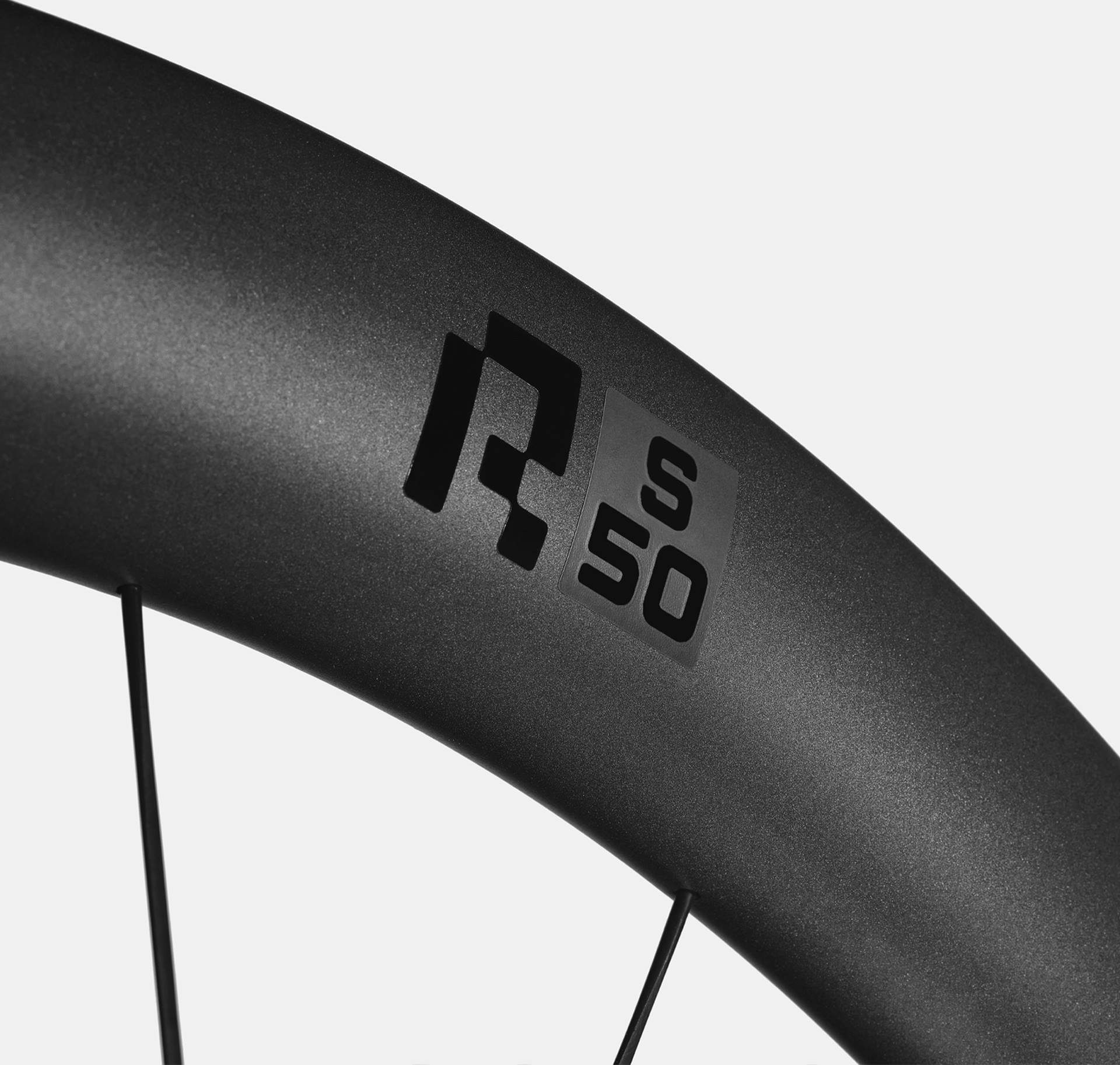

HollowGram R-S 50, Carbon, 20h front, 50mm deep, 21mm inner width, tubeless ready; HollowGram, sealed bearing 12x100mm Center Lock; Formula Grand Forza, double butted, straight pull
Rear wheel
HollowGram R-S 50, Carbon, 24h rear, 50mm deep, 21mm inner width, tubeless ready; HollowGram, 12x142mm Center Lock w/ DT Swiss 240 internals; Formula Grand Forza, double butted, straight pull
Front tire
Vittoria Corsa N.EXT, 700x28c, tubeless ready
Rear tire
Vittoria Corsa N.EXT, 700x28c, tubeless ready
