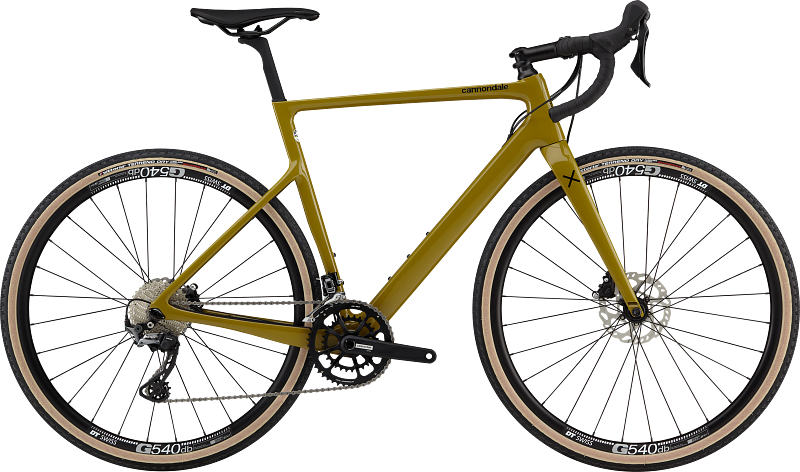

Cannondale
SuperSix EVO SE 2
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | 46cm | 51-58cm |
|---|---|---|
| Crank length | — | — |
| Stem length | — | — |
| Handlebar width | — | — |
| Handlebar reach | — | — |
| Handlebar drop | — | — |
| Saddle width | — | — |
| Dropper post travel | — | — |
| Seatpost offset | 0mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
SuperSix EVO CX Carbon, internal cable routing w/ Switchplate, 12x142mm Speed Release thru-axle, PF30-83 Ai, flat mount disc, integrated seatpost binder
Suspension
Fork
SuperSix EVO CX Carbon, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2", 55mm offset
Brakes
Front brake
Shimano GRX 400 hydraulic disc
Rear brake
Shimano GRX 400 hydraulic disc
Front rotor
160mm Shimano RT70 (Center Lock)
Rear rotor
160mm Shimano RT70 (Center Lock)
Drivetrain
Shift levers
Shimano GRX 600, 11-speed
Rear derailleur
Shimano GRX 810, Shadow RD+
Front derailleur
Shimano GRX 810, braze-on
Cassette
Shimano 105, 11-34, 11-speed
Chain
Shimano HG601, 11-speed
Crankset
Cannondale 1, PF83a w/ SpideRing, 46/30
Bottom bracket
Cannondale Alloy PressFit30
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebars
Cannondale 2, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Prologo Dimension AGX, STN
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (46cm), 15mm offset (51-58cm)
Wheels & Tires
Front wheel
DT Swiss G540, 28h, 24mm internal width, tubeless ready; Formula CL-712, 12x100mm Center Lock; Stainless Steel, 14g
Rear wheel
DT Swiss G540, 28h, 24mm internal width, tubeless ready; Formula RXC-400, 12x142mm Center Lock, Ai offset; Stainless Steel, 14g
Front tire
Vittoria Terreno Dry TNT, 700x40c, tubeless ready
Rear tire
Vittoria Terreno Dry TNT, 700x40c, tubeless ready
