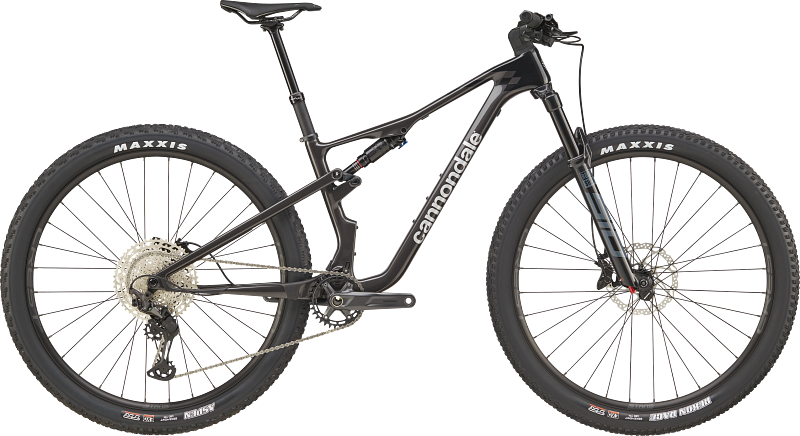

Cannondale
Scalpel 4
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | M-XL | S |
|---|---|---|
| Crank length | — | — |
| Stem length | — | — |
| Handlebar width | 760mm | 760mm |
| Handlebar reach | — | — |
| Handlebar drop | — | — |
| Saddle width | — | — |
| Dropper post travel | 150mm | 125mm |
| Seatpost offset | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
Suspension
Rear shock
RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45
Fork
RockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset
Brakes
Front brake
Shimano MT501 hydraulic disc
Rear brake
Shimano MT501 hydraulic disc
Front rotor
180mm Shimano RT54
Rear rotor
160mm Shimano RT54
Drivetrain
Shift levers
Shimano Deore 6100, 12-speed
Rear derailleur
Shimano XT
Cassette
Shimano Deore, 10-51T, 12-speed
Chain
Shimano Deore, 12-speed
Crankset
Shimano M5121, 32T
Bottom bracket
Shimano BSA 73mm
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8mm, -6°
Handlebars
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale XC Silicone
Saddle
Prologo Dimension NDR, STN rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6mm, 125mm (S), 150mm (M-XL)
Wheels & Tires
Front wheel
Stan's NoTubes Crest S2, 32h, tubeless ready; Shimano TC-500, 15x110mm thru-axle; Stainless Steel, 14g
Rear wheel
Stan's NoTubes Crest S2, 32h, tubeless ready; Shimano MT410B, 12x148mm thru-axle; Stainless Steel, 14g
Front tire
Maxxis Rekon Race WT, 29x2.4, EXO Protection, tubeless ready
Rear tire
Maxxis Aspen WT, 29x2.4, EXO Protection, tubeless ready
