Cannondale

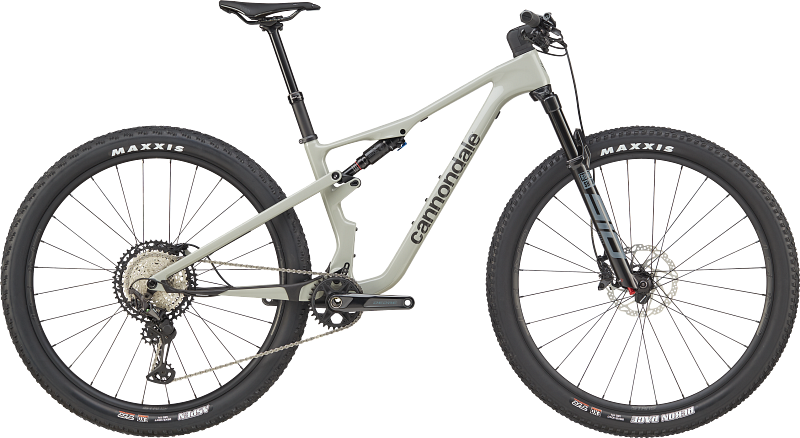

Scalpel 3
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | 150mm | 150mm | 125mm | 150mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
Suspension
Rear shock
RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45
Fork
RockShox SID Select, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset
Brakes
Front brake
Shimano Deore M6100 hydraulic disc (lever: Shimano Deore M6100)
Rear brake
Shimano Deore M6100 hydraulic disc (lever: Shimano Deore M6100)
Front rotor
180mm Shimano RT54
Rear rotor
160mm Shimano RT54
Drivetrain
Shift levers
Shimano XT, 12-speed
Rear derailleur
Shimano XT
Cassette
Shimano XT, 12-speed, 10-51T
Chain
Shimano SLX M7100, 12-speed
Crankset
Shimano Deore M6120, 32T
Bottom bracket
Shimano BSA 73mm
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8mm, -6°
Handlebars
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale XC Silicone
Saddle
Prologo Dimension NDR, STN rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6mm, 125mm (S), 150mm (M-XL)
Wheels & Tires
Front wheel
Stan's NoTubes Crest MK4, 28h, tubeless ready; Shimano TC-500, 15x110mm thru-axle; DT Swiss Competition Race
Rear wheel
Stan's NoTubes Crest MK4, 28h, tubeless ready; Shimano TC-500, 12x148mm thru-axle; DT Swiss Competition Race
Front tire
Maxxis Rekon Race WT, 29x2.4, EXO Protection, tubeless ready
Rear tire
Maxxis Aspen WT, 29x2.4, EXO Protection, tubeless ready
