Cannondale

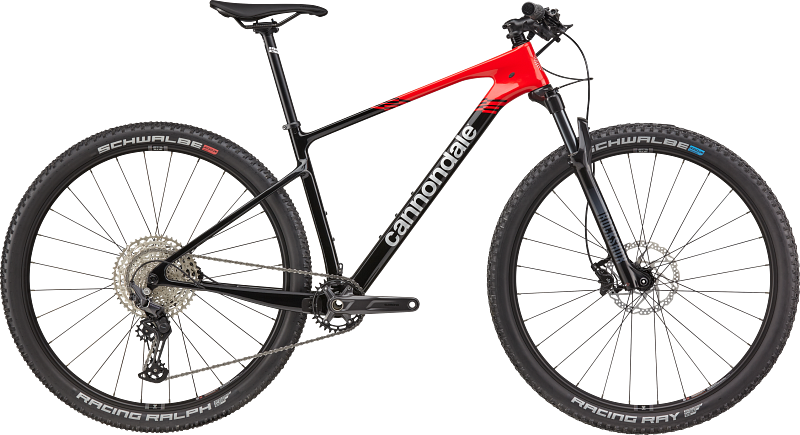

Scalpel HT Carbon 3
Gallery
Images
lifestyle
Geometry
Geometry
>
Geometry
Geometry
No geometry data available yet.
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Suspension
Fork
RockShox Recon Silver RL, 110mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset, remote lockout
Brakes
Front brake
Shimano MT400 4-piston hydraulic disc
Rear brake
Shimano MT400 4-piston hydraulic disc
Front rotor
180mm Shimano RT54 (Center Lock)
Rear rotor
160mm Shimano RT54 (Center Lock)
Drivetrain
Shift levers
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100 SGS
Cassette
Shimano Deore M6100, 10-51T, 12-speed
Chain
Shimano Deore M6100, 12-speed
Crankset
Shimano MT512, 55mm chainline, 32T
Bottom bracket
PF30 83A to 24mm thread-together BB
Cockpit
Stem
Cannondale C2, 6061 alloy, 31.8mm, 7°
Handlebars
Cannondale 2 Flat, butted 2014 alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
SRAM Silicone
Saddle
Cannondale Scoop Shallow Elite, cro-mo rails
Seatpost
RaceFace Ride, 27.2mm, 400mm
Wheels & Tires
Front wheel
WTB ST i25 TCS, 32h, tubeless ready; Shimano TC500, 15x110mm, Center Lock; Stainless steel, 14g
Rear wheel
WTB ST i25 TCS, 32h, tubeless ready; Shimano TC500, 12x148mm, MicroSpline, Center Lock; Stainless steel, 14g
Front tire
Maxxis Rekon Race WT, 29x2.4, EXO Protection, tubeless ready
Rear tire
Maxxis Aspen WT, 29x2.4, EXO Protection, tubeless ready
