Cannondale
Habit 4
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry

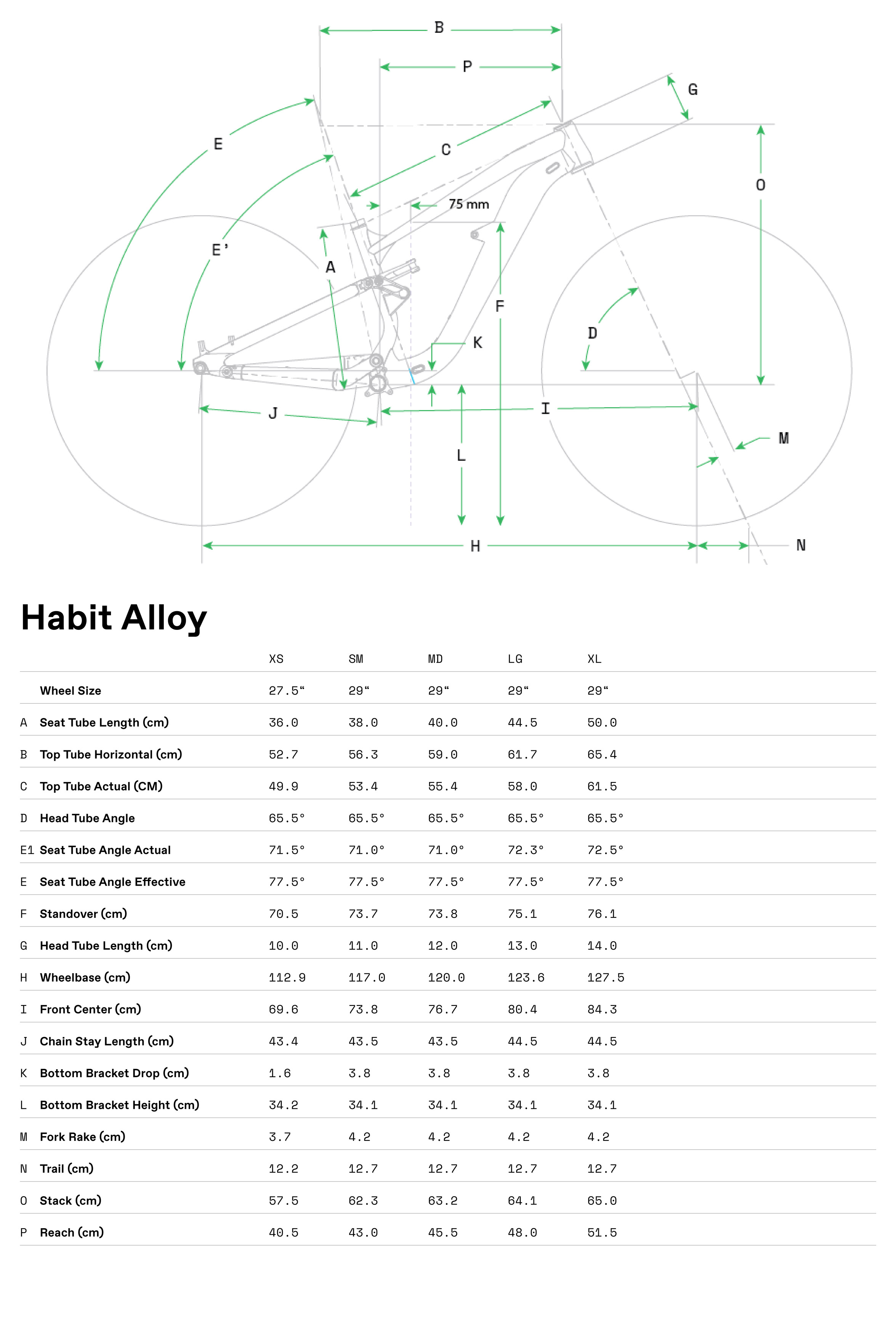

Frame geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Stack | 641mm | 632mm | 623mm | 650mm | 575mm |
| Reach | 480mm | 455mm | 430mm | 515mm | 405mm |
| Headtube length | 130mm | 120mm | 110mm | 140mm | 100mm |
| Headtube angle | 65.5deg | 65.5deg | 65.5deg | 65.5deg | 65.5deg |
| BB height | 341mm | 341mm | 341mm | 341mm | 342mm |
| BB drop | 38mm | 38mm | 38mm | 38mm | 16mm |
| Trail | 127mm | 127mm | 127mm | 127mm | 122mm |
| Fork length | — | — | — | — | — |
| Fork offset | 42mm | 42mm | 42mm | 42mm | 37mm |
| Front center | 796mm | 767mm | 738mm | 835mm | 696mm |
| Chainstay length | 440mm | 435mm | 434mm | 445mm | 434mm |
| Wheelbase | 1234mm | 1200mm | 1170mm | 1278mm | 1129mm |
| Top tube | 617mm | 590mm | 563mm | 654mm | 527mm |
| Standover height | 751mm | 735mm | 730mm | 762mm | 705mm |
| Seat tube length | 445mm | 400mm | 380mm | 500mm | 360mm |
| Seat tube angle | 72deg | 71deg | 70.5deg | 73deg | 71.5deg |
Spec geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | 780mm | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | 150mm | 150mm | 130mm | 150mm | 130mm |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Suspension
Rear shock
RockShox Deluxe Select, DebonAir, adjustable rebound
Fork
RockShox Recon RL, 140mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
Brakes
Front brake
Shimano MT200 hydraulic disc
Rear brake
Shimano MT200 hydraulic disc
Front rotor
180mm Shimano RT30, Center Lock
Rear rotor
180mm Shimano RT30, Center Lock
Drivetrain
Shift levers
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100
Cassette
Shimano Deore M6100, 12-speed, 11-51T
Chain
KMC X12, 12-speed
Crankset
Shimano FC-5121, 30T, 55mm chainline
Bottom bracket
Shimano BSA 73
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebars
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Saddle
Cannondale Ergo XC
Seatpost
TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)
Wheels & Tires
Front wheel
WTB STX i25 TCS, 32h, tubeless ready; Shimano MT400, 15x110mm thru-axle; Stainless Steel, 14g
Rear wheel
WTB STX i25 TCS, 32h, tubeless ready; Shimano MT410, 12x148mm thru-axle; Stainless Steel, 14g
Front tire
Maxxis Rekon, 29x2.4 (27.5x2.4 - XS), EXO
Rear tire
Maxxis Rekon, 29x2.4 (27.5x2.4 - XS), EXO
