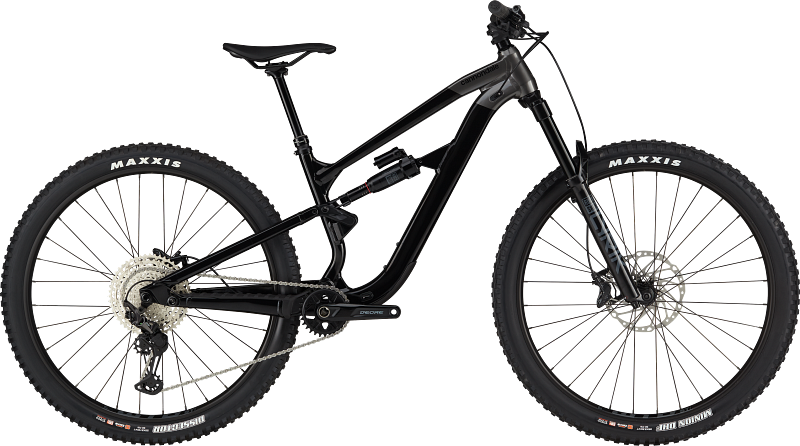

Cannondale
Habit LT LT 2
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Stack | 644mm | 635mm | 626mm | 653mm | 578mm |
| Reach | 475mm | 450mm | 425mm | 510mm | 400mm |
| Headtube length | 130mm | 120mm | 110mm | 140mm | 100mm |
| Headtube angle | 64.7deg | 64.7deg | 64.7deg | 64.7deg | 64.7deg |
| BB height | 344mm | 344mm | 344mm | 344mm | 345mm |
| BB drop | 34mm | 34mm | 34mm | 34mm | 13mm |
| Trail | 130mm | 130mm | 130mm | 130mm | 126mm |
| Fork length | — | — | — | — | — |
| Fork offset | 42mm | 42mm | 42mm | 42mm | 37mm |
| Front center | 807mm | 771mm | 742mm | 847mm | 700mm |
| Chainstay length | 445mm | 435mm | 435mm | 445mm | 434mm |
| Wheelbase | 1240mm | 1204mm | 1175mm | 1280mm | 1133mm |
| Top tube | 617mm | 590mm | 563mm | 654mm | 527mm |
| Standover height | 757mm | 748mm | 743mm | 767mm | 711mm |
| Seat tube length | 445mm | 400mm | 380mm | 500mm | 360mm |
| Seat tube angle | 77.1deg | 77.1deg | 77.1deg | 77.1deg | 77deg |
Spec geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | 780mm | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | 170mm | 150mm | 125mm | 170mm | 125mm |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale Habit SmartForm C1 Alloy, 140mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Suspension
Rear shock
RockShox Super Deluxe Select, DebonAir, adjustable rebound
Fork
RockShox Lyrik, 150mm, DebonAir, 15x110mm thru-axle, tapered steerer, 42mm offset
Brakes
Front brake
Shimano Deore M6120 4-piston hydraulic disc
Rear brake
Shimano Deore M6120 4-piston hydraulic disc
Front rotor
203mm Shimano RT64
Rear rotor
180mm Shimano RT64
Drivetrain
Shift levers
Shimano SLX, 12-speed
Rear derailleur
Shimano XT
Cassette
Shimano Deore, 12-speed, 10-51T
Chain
Shimano SLX, 12-speed
Crankset
Shimano FC-6120, 30T, 55mm chainline
Bottom bracket
Shimano BSA 73
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebars
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale TrailShroom
Saddle
Cannondale Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (XS-S), 150mm (M), 170mm (L-XL)
Wheels & Tires
Front wheel
WTB ST i30 TCS, 32h, tubeless ready; Formula, 15x110mm thru-axle; DT Swiss Champion
Rear wheel
WTB ST i30 TCS, 32h, tubeless ready; Shimano TC500, 12x148mm thru-axle; DT Swiss Champion
Front tire
Maxxis Minion DHF, 29x2.5 (27.5x2.5 - XS), EXO, tubeless ready
Rear tire
Maxxis Dissector, 29x2.4 (27.5x2.5 - XS), 3C, EXO+, tubeless ready
