Teammachine SLR 01 Two
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 47 | 51 | 54 | 56 | 58 | 61 | Size 47-51 | Size 54-61 |
|---|---|---|---|---|---|---|---|---|
| Stack | 506mm | 530mm | 550mm | 565mm | 584mm | 608mm | — | — |
| Reach | 367mm | 377mm | 386mm | 392mm | 401mm | 409mm | — | — |
| Headtube length | 108mm | 133mm | 149mm | 165mm | 184mm | 211mm | — | — |
| Headtube angle | 71.5deg | 71.5deg | 72.3deg | 72.3deg | 72.3deg | 72.3deg | — | — |
| BB height | — | — | — | — | — | — | — | — |
| BB drop | 69mm | 69mm | 69mm | 69mm | 69mm | 69mm | — | — |
| Trail | 63mm | 63mm | 63mm | 63mm | 63mm | 63mm | — | — |
| Fork length | 369mm | 369mm | 369mm | 369mm | 369mm | 369mm | — | — |
| Fork offset | 48mm | 48mm | 43mm | 43mm | 43mm | 43mm | — | — |
| Front center | 568mm | 586mm | 589mm | 599mm | 614mm | 630mm | — | — |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | — | — |
| Wheelbase | 968mm | 986mm | 989mm | 1000mm | 1015mm | 1030mm | — | — |
| Top tube | 515mm | 532mm | 552mm | 562mm | 582mm | 598mm | — | — |
| Standover height | 717mm | 752mm | 779mm | 797mm | 817mm | 843mm | — | — |
| Seat tube length | 422mm | 464mm | 491mm | 509mm | 530mm | 555mm | — | — |
| Seat tube angle | 74deg | 74deg | 73.5deg | 73.5deg | 73deg | 73deg | — | — |
Spec geometry
| Geometry | 47 | 51 | 54 | 56 | 58 | 61 | Size 47-51 | Size 54-61 |
|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | 70mm | 70mm |
| Handlebar drop | — | — | — | — | — | — | 127mm | 127mm |
| Saddle width | — | — | — | — | — | — | 140mm | 140mm |
| Dropper post travel | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 10mm | 10mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Suspension
Fork
Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Brakes
Front brake
SHIMANO Dura Ace (BR-R9270)
Rear brake
SHIMANO Dura Ace (BR-R9270)
Front rotor
SHIMANO Dura Ace (RT-CL900) | 160mm
Rear rotor
SHIMANO Dura Ace (RT-CL900) | 160mm
Drivetrain
Shift levers
SHIMANO Dura Ace Di2 (ST-R9270)
Rear derailleur
SHIMANO Dura Ace Di2 (RD-R9250)
Front derailleur
SHIMANO Dura Ace Di2 (FD-R9250)
Cassette
SHIMANO Dura Ace (CS-R9200) | 11-30T
Chain
SHIMANO CN-M9100
Crankset
SHIMANO Dura Ace (FC-R9200) | 52-36T | 4iiii Precision Gen3+ Power Meter (Dual Side)
Bottom bracket
SHIMANO Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Cockpit
Stem
ICS Carbon Evo | One Piece Full Carbon Cockpit
Handlebars
ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare
Saddle
Fizik Argo Vento R1 | 140mm
Seatpost
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset
Wheels & Tires
Front wheel
DT Swiss ARC 1100 DICUT | 38mm; DT Swiss 180 DICUT | Ratchet EXP 36
Rear wheel
DT Swiss ARC 1100 DICUT | 38mm; DT Swiss 180 DICUT | Ratchet EXP 36
Front tire
Pirelli P Zero Race TLR RS | Tubeless | 26mm
Rear tire
Pirelli P Zero Race TLR RS | Tubeless | 26mm
Weight
Weight

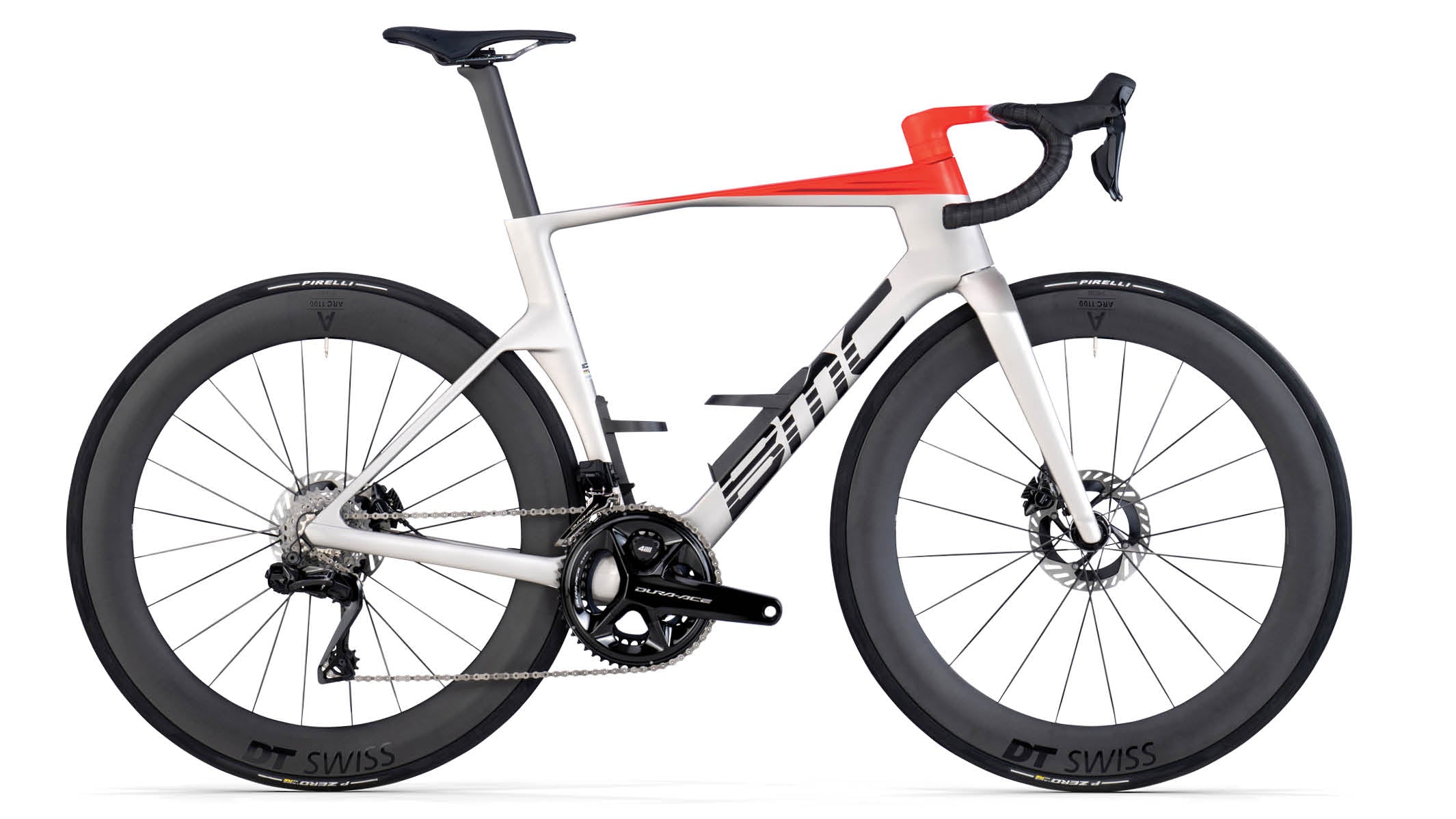

6.6kg (without pedals) | Size 54 as pictured with all accessories
