BMC
Roadmachine Three
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 47 | 51 | 54 | 56 | 58 | 61 | All |
|---|---|---|---|---|---|---|---|
| Stack | 525mm | 550mm | 570mm | 595mm | 620mm | 645mm | — |
| Reach | 370mm | 379mm | 383mm | 388mm | 393mm | 398mm | — |
| Headtube length | 112mm | 138mm | 154mm | 181mm | 207mm | 233mm | — |
| Headtube angle | 71.4deg | 71.4deg | 72.2deg | 72.2deg | 72.2deg | 72.2deg | — |
| BB height | — | — | — | — | — | — | — |
| BB drop | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm | — |
| Trail | 63mm | 63mm | 63mm | 63mm | 63mm | 63mm | — |
| Fork length | 379mm | 379mm | 379mm | 379mm | 379mm | 379mm | — |
| Fork offset | 50mm | 50mm | 45mm | 45mm | 45mm | 45mm | — |
| Front center | 579mm | 596mm | 594mm | 607mm | 620mm | 633mm | — |
| Chainstay length | 415mm | 415mm | 415mm | 415mm | 415mm | 415mm | — |
| Wheelbase | 982mm | 1000mm | 997mm | 1010mm | 1023mm | 1036mm | — |
| Top tube | 520mm | 537mm | 546mm | 559mm | 571mm | 581mm | — |
| Standover height | 726mm | 762mm | 786mm | 807mm | 828mm | 849mm | — |
| Seat tube length | 414mm | 461mm | 488mm | 508mm | 529mm | 550mm | — |
| Seat tube angle | 74.2deg | 74.2deg | 74.2deg | 74.2deg | 74.2deg | 74.2deg | — |
Spec geometry
| Geometry | 47 | 51 | 54 | 56 | 58 | 61 | All |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | 70mm |
| Handlebar drop | — | — | — | — | — | — | 125mm |
| Saddle width | — | — | — | — | — | — | 145mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Roadmachine Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Suspension
Fork
Roadmachine Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61
Brakes
Front brake
SHIMANO 105 (BR-R7170)
Rear brake
SHIMANO 105 (BR-R7170)
Front rotor
SHIMANO SM-RT64 | Centerlock | 160mm
Rear rotor
SHIMANO SM-RT64 | Centerlock | 160mm
Drivetrain
Shift levers
SHIMANO 105 (ST-R7120)
Rear derailleur
SHIMANO 105 (RD-R7100)
Front derailleur
SHIMANO 105 (FD-R7100)
Cassette
SHIMANO (CS-HG710) | 11-36T
Chain
SHIMANO CN-M6100
Crankset
SHIMANO 105 (FC-R7100) | 50-34T
Bottom bracket
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Cockpit
Stem
BMC RSM 01 | Integrated Cockpit System Technology
Handlebars
BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare
Saddle
Selle Italia Model X Superflow | FeC Alloy Rail | 145mm
Seatpost
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Wheels & Tires
Front wheel
PRD23 | 23mm; SHIMANO HB-TC500-12 | Center Lock | 28H
Rear wheel
PRD23 | 23mm; SHIMANO FH-TC500-HL | Center Lock | 28H
Front tire
Vittoria Rubino V | Tube type | 32mm [or] Vittoria Rubino IV | Tube type | 28mm
Rear tire
Vittoria Rubino V | Tube type | 32mm [or] Vittoria Rubino IV | Tube type | 28mm
Weight
Weight

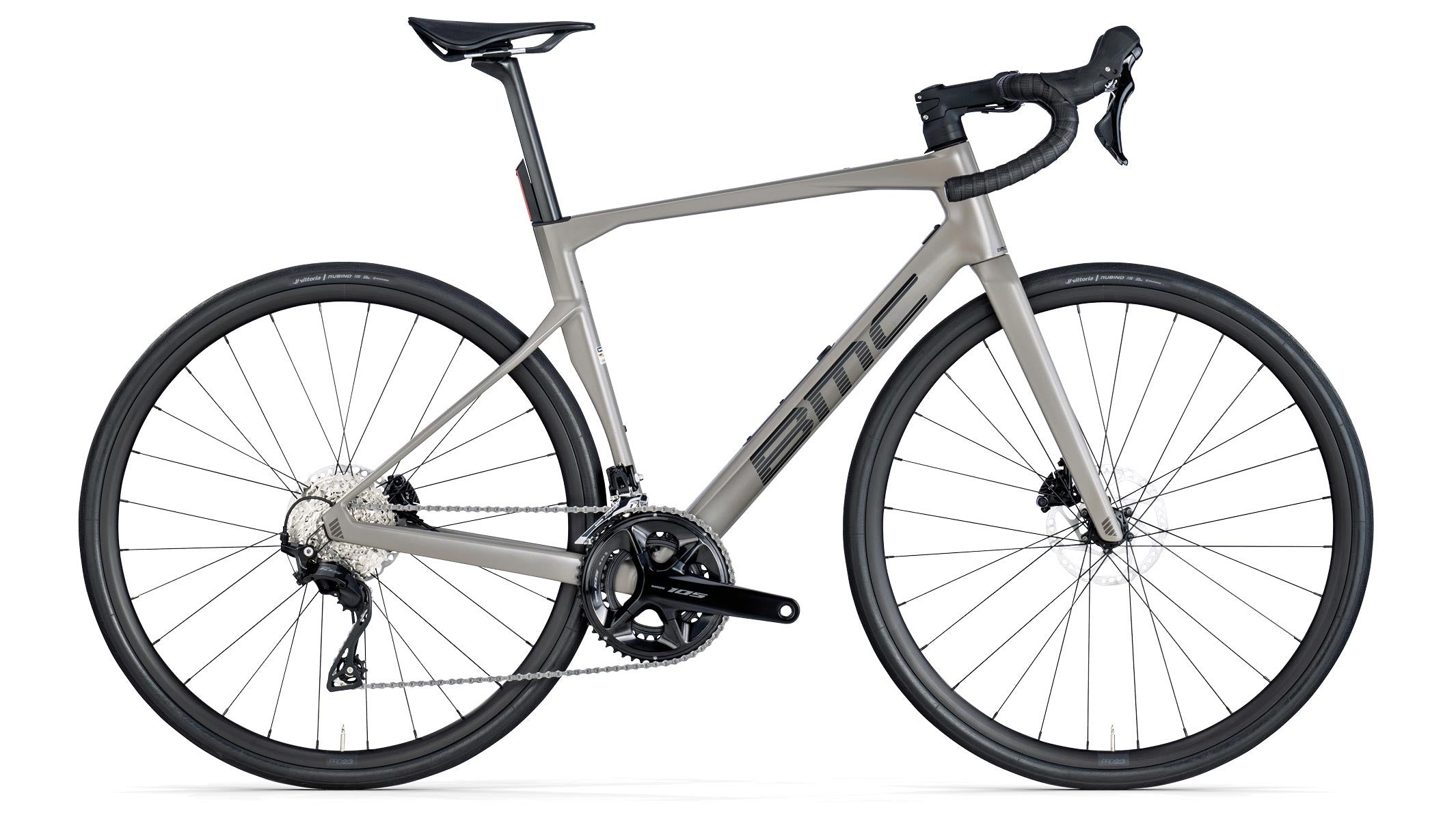

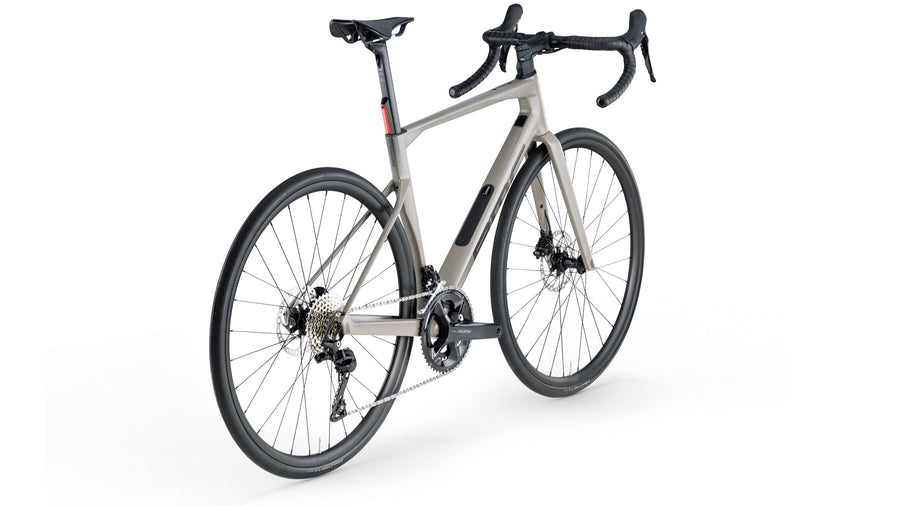

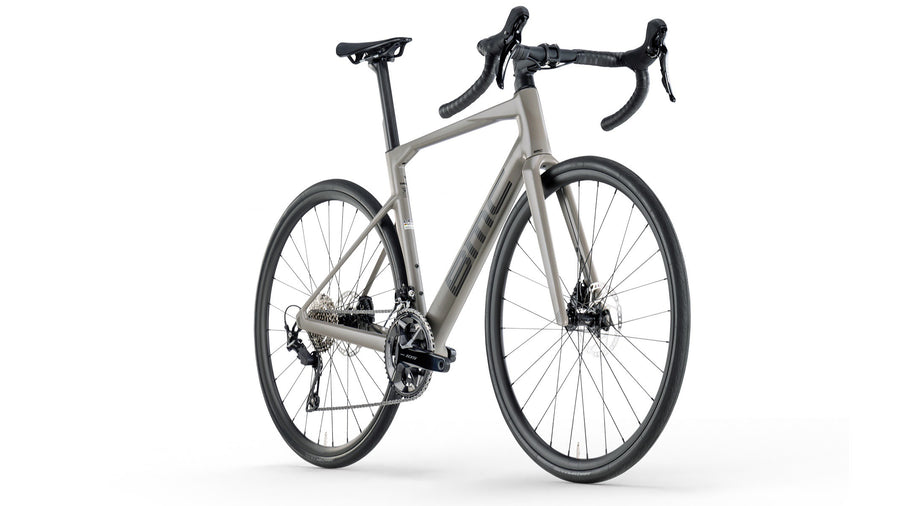

9.1kg (without pedals) | Size 54 as pictured with all accessories
