Bianchi

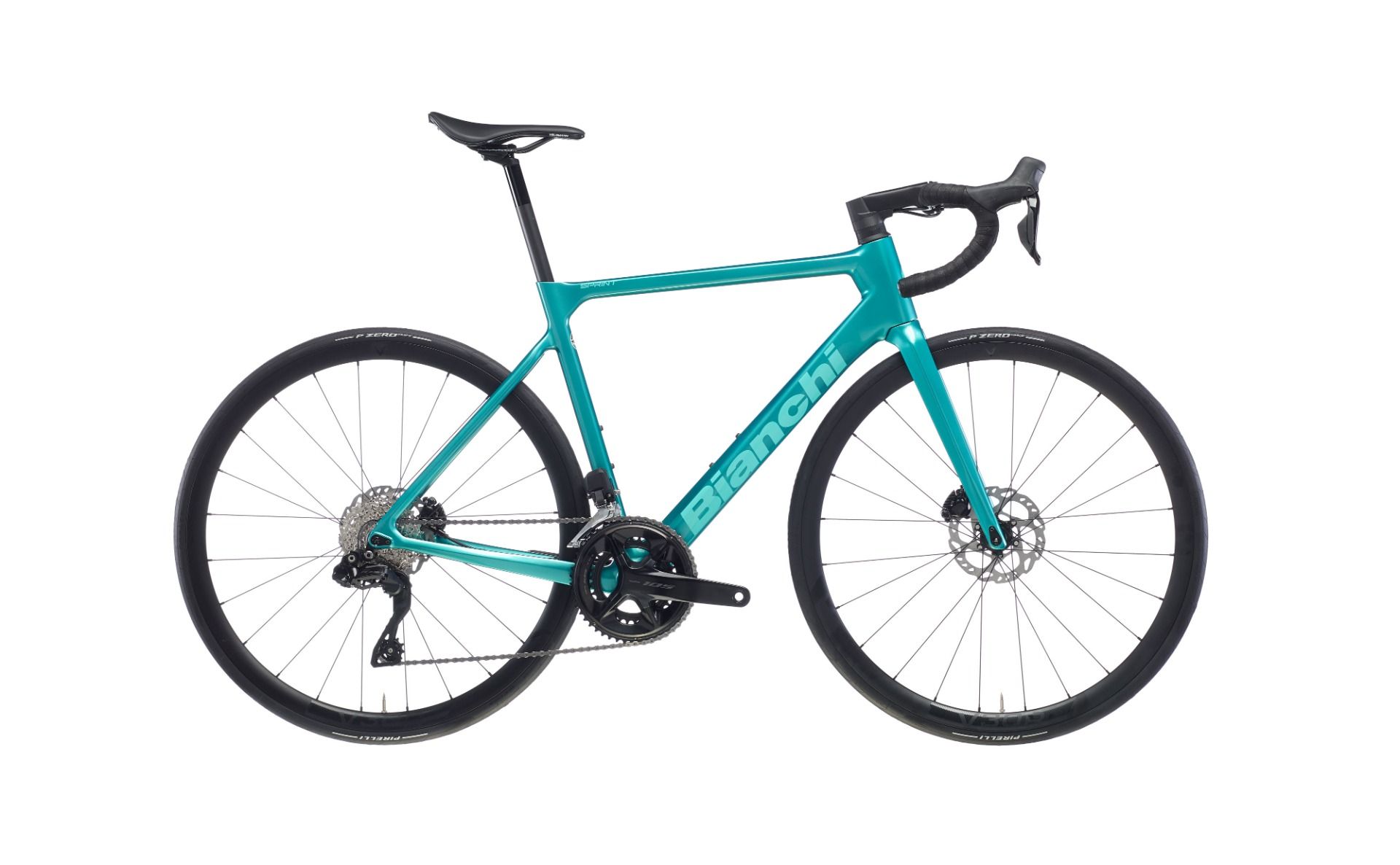

Sprint 105 Di2 12sp
Gallery
Images
lifestyle
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 | 610 |
|---|---|---|---|---|---|---|---|
| Stack | 497mm | 505mm | 529mm | 545mm | 561mm | 580mm | 599mm |
| Reach | 377mm | 383mm | 384mm | 388mm | 393mm | 396mm | 397mm |
| Headtube length | 105mm | 110mm | 125mm | 140mm | 155mm | 175mm | 195mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 73deg | 73deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — | — |
| BB drop | 60mm | 60mm | 68mm | 68mm | 68mm | 68mm | 68mm |
| Trail | — | — | — | — | — | — | — |
| Fork length | 373mm | 373mm | 373mm | 373mm | 373mm | 373mm | 373mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 580mm | 582mm | 583mm | 588mm | 593mm | 603mm | 607mm |
| Chainstay length | 410mm | 410mm | 410mm | 413mm | 413mm | 413mm | 415mm |
| Wheelbase | 982mm | 983mm | 984mm | 991mm | 996mm | 1006mm | 1012mm |
| Top tube | 515mm | 525mm | 535mm | 550mm | 560mm | 575mm | 585mm |
| Standover height | — | — | — | — | — | — | — |
| Seat tube length | 420mm | 450mm | 480mm | 500mm | 520mm | 540mm | 560mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 | 610 |
|---|---|---|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 172.5mm | 175mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm | 120mm |
| Handlebar width | 400mm | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Sprint carbon monocoque frame, mechanical/electronic compatible, BB-PressFit 86.5x41 (BB86), head tube 1.4"-1.5", integrated seat clamp, full carbon dropouts, flat mount disc, 12x142 thru-axle (sizes 47-50-53-55-57-59-61cm)
Suspension
Fork
Bianchi Full Carbon Aero Road fork, 1.4"->1.5" integrated head, flat mount disc, 12x100 thru-axle
Brakes
Front brake
Shimano 105 hydraulic disc, BR-R7170 (part of the Shimano 105 Di2 lever system)
Rear brake
Shimano 105 hydraulic disc, BR-R7170 (part of the Shimano 105 Di2 lever system)
Front rotor
Shimano SM-RT70, Center Lock, 160mm
Rear rotor
Shimano SM-RT70, Center Lock, 160mm
Drivetrain
Shift levers
Shimano 105 Di2, ST-R7170, 12-speed
Rear derailleur
Shimano 105 Di2, RD-R7150, 12-speed
Front derailleur
Shimano 105 Di2, FD-R7150, 12-speed
Cassette
Shimano 105 12-speed, CS-R7100, 11-34T
Chain
Shimano 12-speed, CN-M7100
Crankset
Shimano 105 12-speed, FC-R7100 (crank length: 170mm-47/53cm; 172.5mm-55/59cm; 175mm-61cm)
Bottom bracket
Shimano SM-BB72-41B, press fit for road (BB86/41mm)
Cockpit
Stem
Velomann alloy 6061, -7°; length: 80mm (44cm), 90mm (47/50cm), 100mm (53cm), 110mm (55/57cm), 120mm (59/61cm)
Handlebars
Velomann Compact, alloy 6061, 31.8mm clamp, reach 80mm, drop 130mm; width: 400mm (44/53cm), 420mm (55/59cm), 440mm (61cm)
Grips
Bianchi cork bar tape, black
Saddle
Velomann Seta
Seatpost
Velomann alloy 6061, 15mm offset, 27.2mm; length: 300mm (44cm), 350mm (47/61cm)
Wheels & Tires
Front wheel
Velomann alloy disc wheel, 30mm rim profile, clincher 622x19C, Team TC j-bend hub, round 2.0mm spokes (black), with rim tape; front axle HH12 (12x100)
Rear wheel
Velomann alloy disc wheel, 30mm rim profile, clincher 622x19C, Team TC j-bend hub, round 2.0mm spokes (black), with rim tape; rear axle HH12/142 (12x142)
Front tire
Vittoria Rubino IV G2.0 Graphene, 700x25, 60 TPI
Rear tire
Vittoria Rubino IV G2.0 Graphene, 700x25, 60 TPI
