Bianchi

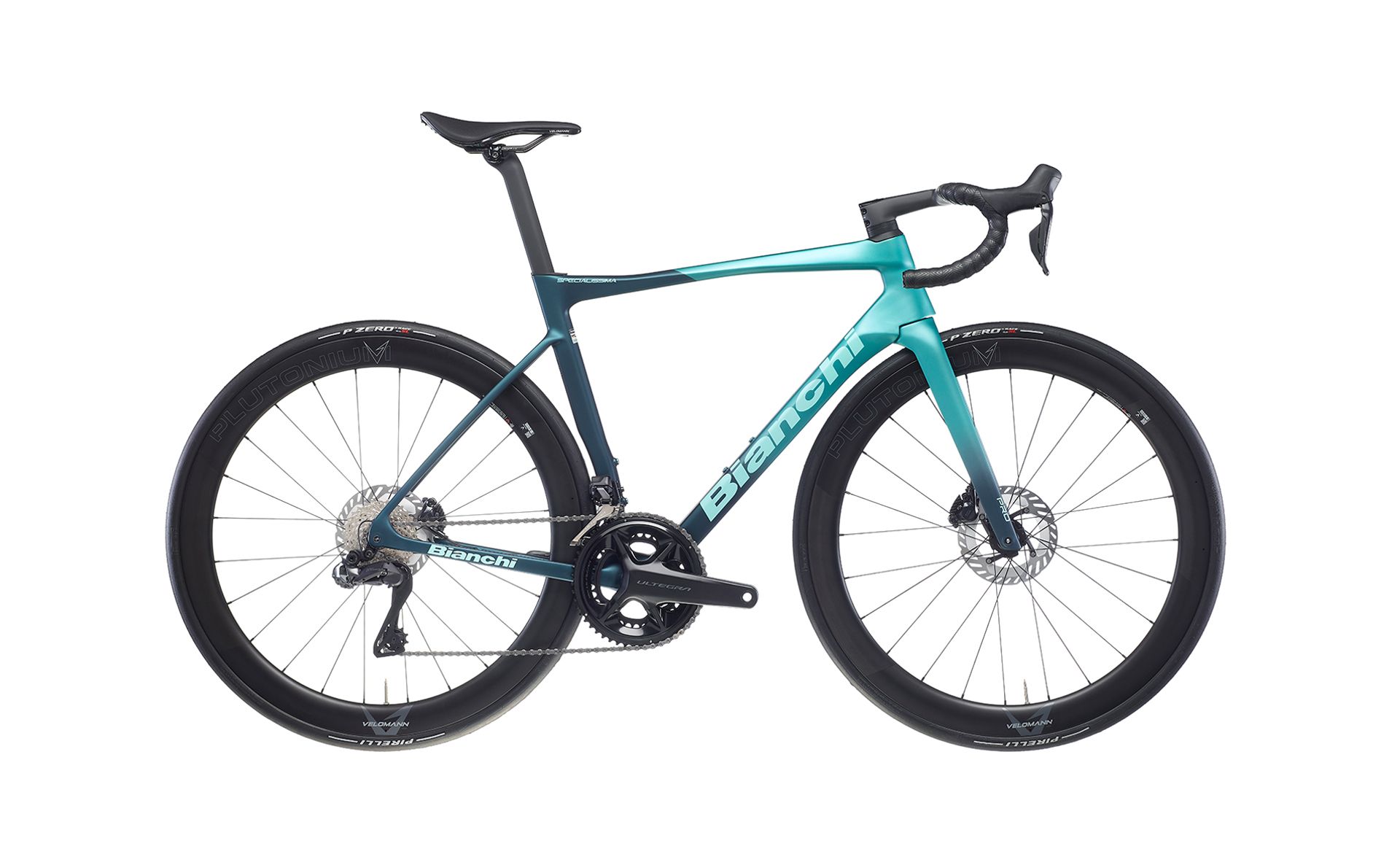

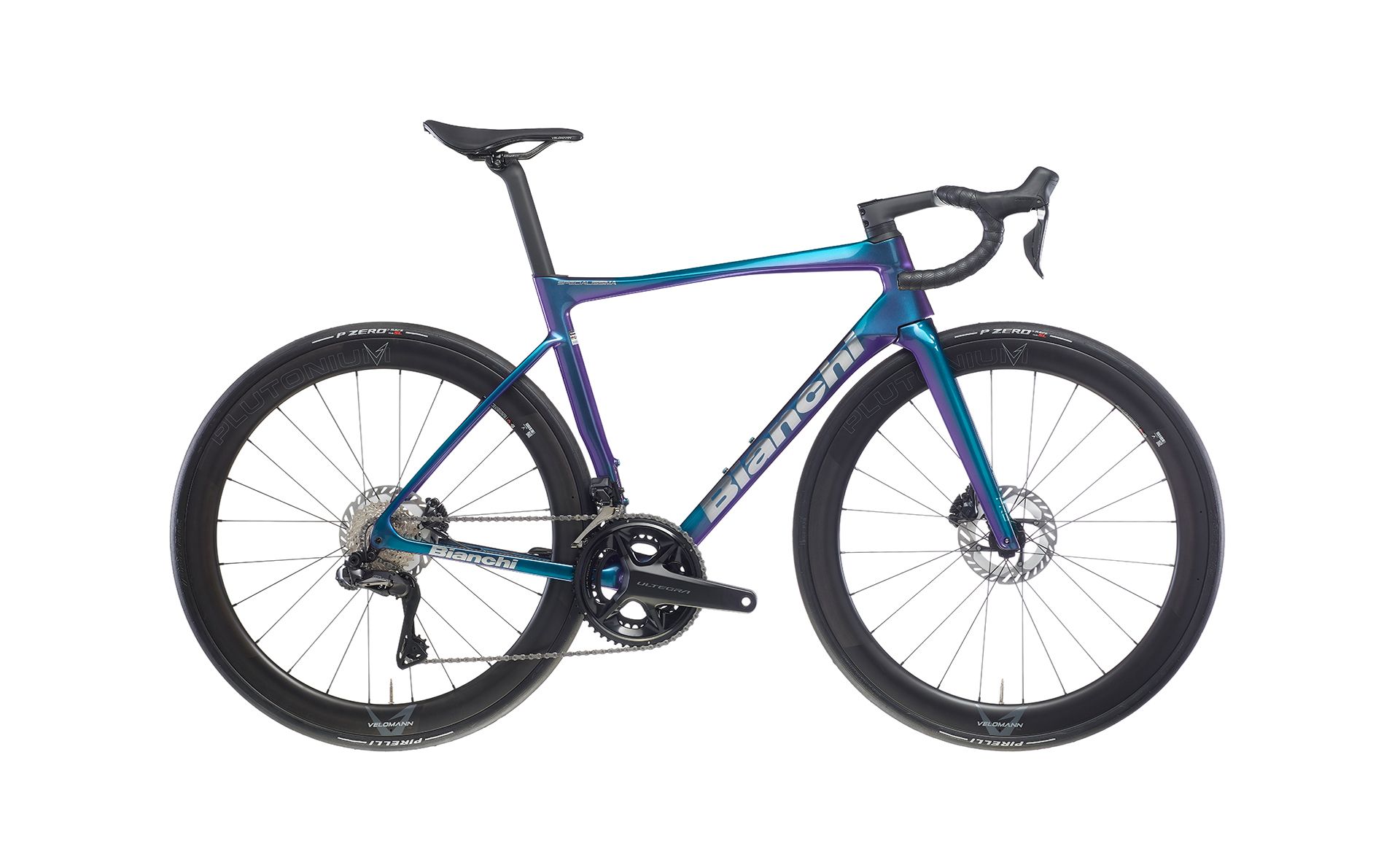

Specialissima Pro SRAM Force AXS E1 12sp
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 486mm | 494mm | 520mm | 536mm | 552mm | 571mm |
| Reach | 379mm | 387mm | 386mm | 391mm | 397mm | 400mm |
| Headtube length | 100mm | 105mm | 120mm | 135mm | 150mm | 170mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | — | — | — | — | — | — |
| Trail | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 514mm | 524mm | 535mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 420mm | 450mm | 480mm | 500mm | 520mm | 540mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 380mm | 380mm | 400mm | 400mm | 400mm | 420mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Specialissima PRO carbon HM with Bianchi CV System, only electronic groupsets, fully internal cable routing, headset Acros ICR, direct mount brakes, BB-PressFit 86.5x41 (sizes 47-50-53-55-57-59)
Suspension
Fork
Bianchi Specialissima PRO full Carbon High Modulus aero with Bianchi CV System, integrated head, disc, 1.5" head, 12x100 mm thru axle
Brakes
Front brake
Sram Force E1, hydraulic disc brake
Rear brake
Sram Force E1, hydraulic disc brake
Front rotor
Sram Paceline, Center Lock, 160 mm
Rear rotor
Sram Paceline, Center Lock, 160 mm
Drivetrain
Shift levers
Sram Force AXS E1
Rear derailleur
Sram Force AXS E1, 12sp
Front derailleur
Sram Force AXS E1
Cassette
Sram Force XG 1270 E1, 12-speed, 10-33T (10-11-12-13-14-15-17-19-21-24-28-33T)
Chain
Sram Force E1
Crankset
Sram Force E1, Quarq Power Meter, 48x35T (crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm))
Bottom bracket
Sram Press-Fit Road 86.5x41
Cockpit
Stem
Bianchi Reparto Corse integrated handlebar, carbon, for Acros Integrated Cable Routing headset, drop 125 mm, reach 80 mm (size: 90/380 mm (47-50 cm); 100/400 mm (53 cm); 110/400 mm (55-57 cm); 120/420 mm (59 cm))
Handlebars
Included in the stem
Grips
Bianchi Arrow premium tape, 2.5 mm thickness, full black
Saddle
Velomann Mitora 139 Lite, open flow, carbon rails 7x9.1 mm, carbon-reinforced nylon shell, 250x139 mm
Seatpost
Bianchi Specialissima, full carbon, aero shape, 20 mm offset (length: 280 mm (47 cm); 300 mm (50-53 cm); 350 mm (55-59 cm))
Wheels & Tires
Front wheel
Velomann Palladium, carbon rim, 33 mm profile, 700x21c, 24h, XDR body
Rear wheel
Velomann Palladium, carbon rim, 33 mm profile, 700x21c, 24h, XDR body
Front tire
Pirelli P ZERO Race TLR, 28-622, 127 TPI, SPEEDCore
Rear tire
Pirelli P ZERO Race TLR, 28-622, 127 TPI, SPEEDCore
