Bianchi

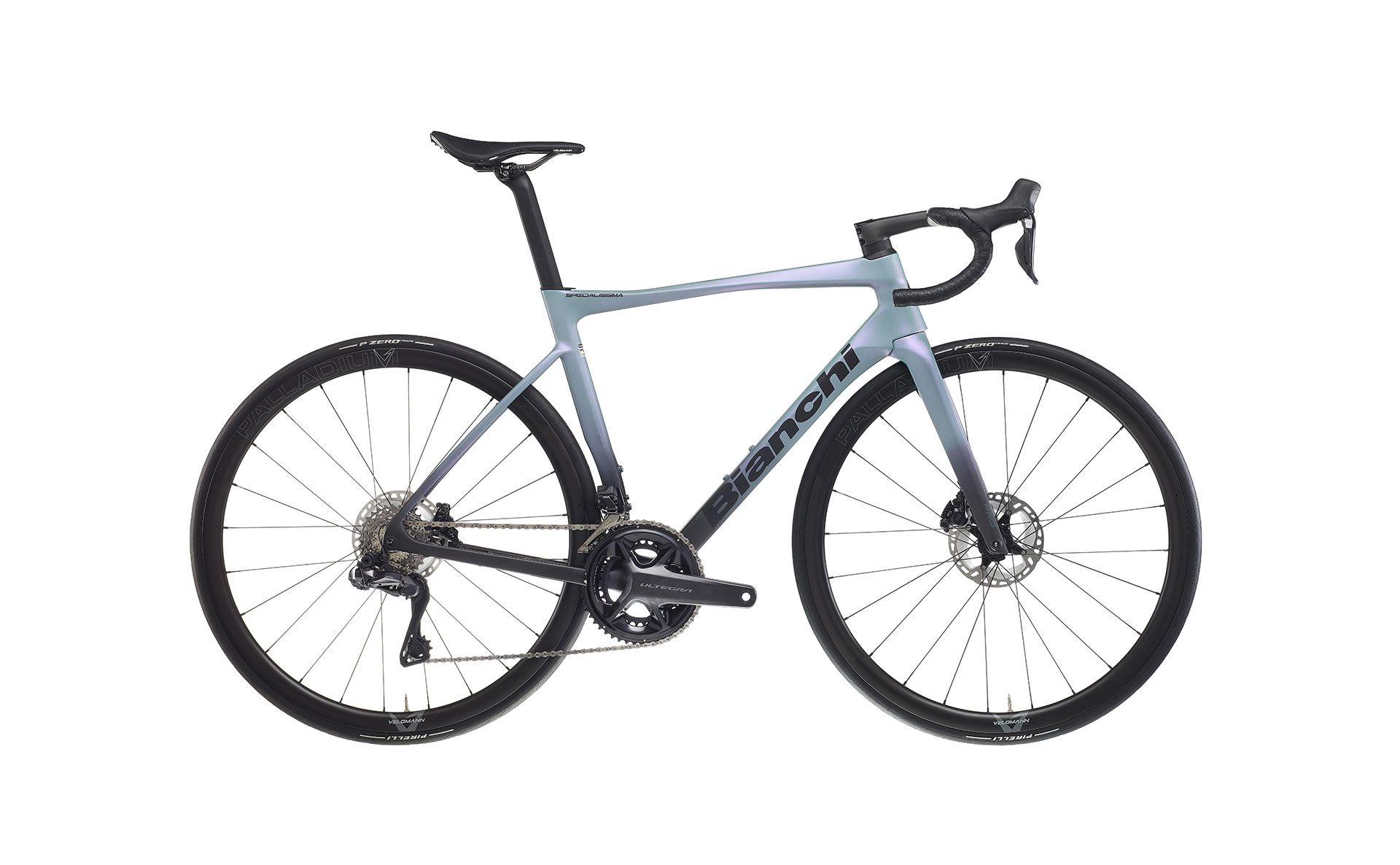

Specialissima Pro Shimano Ultegra Di2 12sp
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 486mm | 494mm | 520mm | 536mm | 552mm | 571mm |
| Reach | 379mm | 387mm | 386mm | 391mm | 397mm | 400mm |
| Headtube length | 100mm | 105mm | 120mm | 135mm | 150mm | 170mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | — | — | — | — | — | — |
| Trail | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 514mm | 524mm | 535mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 420mm | 450mm | 480mm | 500mm | 520mm | 540mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 380mm | 380mm | 400mm | 400mm | 400mm | 420mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Specialissima PRO carbon HM with Bianchi CV System, only electronic groupsets, fully internal cable routing, headset Acros ICR, direct mount brakes, BB-PressFit 86.5x41, sizes 47-50-53-55-57-59cm
Suspension
Fork
Bianchi Specialissima PRO full Carbon HM with CV, aero, integrated head, disc, 1.5" head, 12x100mm thru axle
Brakes
Front brake
Shimano Ultegra BR-R8170 hydraulic disc brake
Rear brake
Shimano Ultegra BR-R8170 hydraulic disc brake
Front rotor
Shimano RT-CL800 Center Lock w/ Ice Tech, 160mm
Rear rotor
Shimano RT-CL800 Center Lock w/ Ice Tech, 160mm
Drivetrain
Shift levers
Shimano Ultegra Di2 hydraulic disc brake for road, ST-R8170
Rear derailleur
Shimano Ultegra Di2 12sp RD-R8150
Front derailleur
Shimano Ultegra Di2 FD-R8150, brazed-on type, down swing, top gear 50-54T, for rear 12-speed
Cassette
Shimano Ultegra CS-R8100 12-speed, 11-30T (11-12-13-14-15-16-17-19-21-24-27-30T)
Chain
Shimano Ultegra 12 sp CN-M8100
Crankset
Shimano Ultegra 12sp FC-R8100 with 4iiii Precision 3+ power meter, 52/36T (Crank Length: 165mm (47-50cm), 170mm (53-55cm), 172.5mm (57-59cm))
Bottom bracket
Shimano SM-BB72-41B, press fit for road
Cockpit
Stem
Reparto Corse integrated handlebar (carbon) for Acros ICR system, drop 125mm, reach 80mm (Ext: 90/380 (47-50cm); 100/400 (53cm); 110/400 (55-57cm); 120/420 (59cm))
Handlebars
Included in the stem (integrated bar/stem)
Grips
Velo Black soft Microfiber tapes
Saddle
Velomann Mitora 139 Hyper Carbon, nylon carbon shell, carbon rails (250x139mm, 180g ±2)
Seatpost
Specialissima Full Carbon Aero special dimension seatpost, 20mm offset (length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm)
Wheels & Tires
Front wheel
Velomann Palladium wheelset, 33mm profile, 700x21c, 24h, HG11, spoke pattern 2-to-1, tubeless-ready, sealed cartridge bearings (wheelset weight 1450g ±5%)
Rear wheel
Velomann Palladium wheelset, 33mm profile, 700x21c, 24h, HG11, spoke pattern 2-to-1, tubeless-ready, sealed cartridge bearings (wheelset weight 1450g ±5%)
Front tire
Pirelli P ZERO Race SL TLR, 28-622, 120TPI
Rear tire
Pirelli P ZERO Race SL TLR, 28-622, 120TPI
