Bianchi

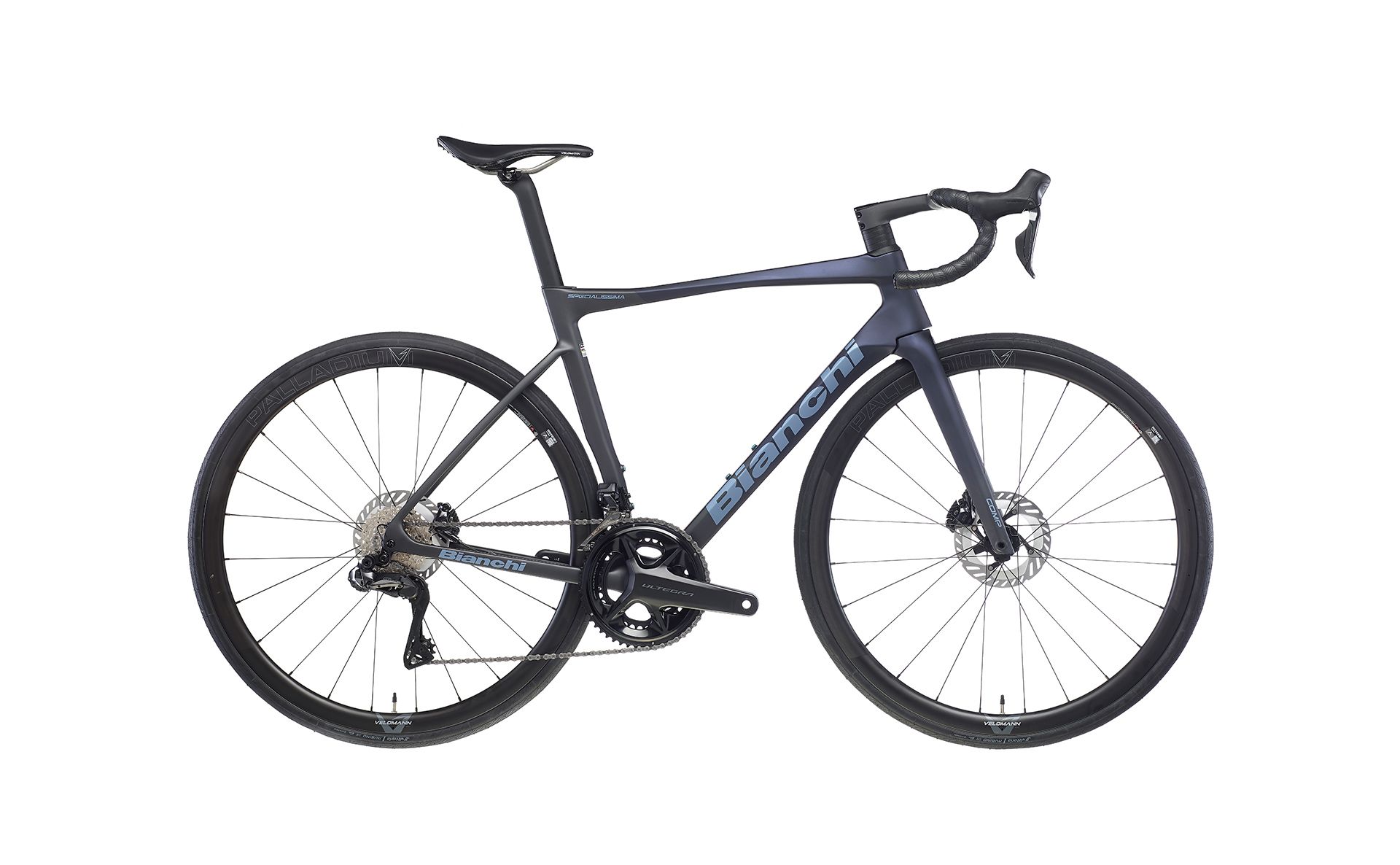

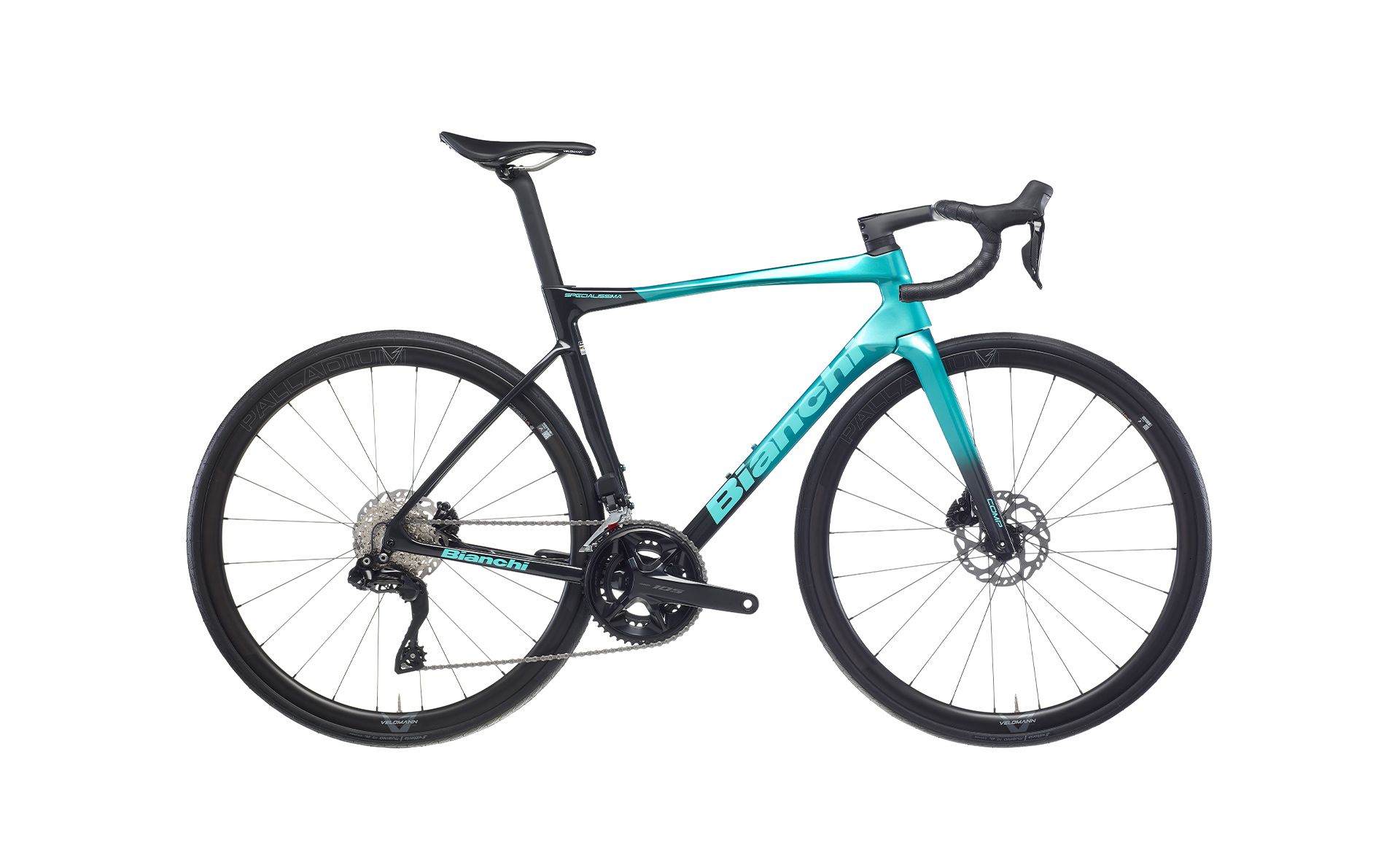

Specialissima Comp SRAM Rival AXS E1 12sp
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 486mm | 494mm | 520mm | 536mm | 552mm | 571mm |
| Reach | 379mm | 387mm | 386mm | 391mm | 397mm | 400mm |
| Headtube length | 100mm | 105mm | 120mm | 135mm | 150mm | 170mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | — | — | — | — | — | — |
| Trail | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 514mm | 524mm | 535mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 420mm | 450mm | 480mm | 500mm | 520mm | 540mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 380mm | 380mm | 400mm | 400mm | 400mm | 420mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Specialissima COMP full carbon, only electronic groupsets, fully internal cable routing, headset Acros ICR, direct mount brakes, BB PressFit 86.5x41 (sizes 47-50-53-55-57-59)
Suspension
Fork
Bianchi Specialissima COMP full carbon aero fork, integrated head, disc, 1.5" head, 12x100mm thru axle
Brakes
Front brake
SRAM Rival E1, hydraulic disc brake
Rear brake
SRAM Rival E1, hydraulic disc brake
Front rotor
SRAM CenterLine, Center Lock, 160mm
Rear rotor
SRAM CenterLine, Center Lock, 160mm
Drivetrain
Shift levers
SRAM Rival AXS E1
Rear derailleur
SRAM Rival AXS E1, 12-speed
Front derailleur
SRAM Rival AXS E1
Cassette
SRAM Rival XG-1250 D1, 12-speed, 10-36T (10-11-12-13-15-17-19-21-24-28-32-36)
Chain
SRAM Rival E1
Crankset
SRAM Rival E1, 48/35T; crank length: 165mm (47-50cm), 170mm (53-55cm), 172.5mm (57-59cm)
Bottom bracket
SRAM PressFit Road 86.5x41
Cockpit
Stem
Reparto Corse integrated handlebar (carbon), for Acros ICR system; drop 125mm, reach 80mm; ext/width: 90/380 (47-50cm), 100/400 (53cm), 110/400 (55-57cm), 120/420 (59cm)
Handlebars
Included in the stem (integrated bar/stem)
Grips
Bianchi Arrow premium bar tape, 2.5mm thickness, full black
Saddle
Velomann Mitora 139, AISI rail, width 139mm, length 250mm
Seatpost
Bianchi Specialissima full carbon aero seatpost, 20mm offset; length: 280mm (47cm), 300mm (50-53cm), 350mm (55-59cm)
Wheels & Tires
Front wheel
Velomann Palladium wheelset, carbon rim, 33mm profile, 700x21c, 24h, XDR body
Rear wheel
Velomann Palladium wheelset, carbon rim, 33mm profile, 700x21c, 24h, XDR body
Front tire
Vittoria Rubino V, 28-622, TLR, full black, G2.0 Graphene + Silica, 100 TPI
Rear tire
Vittoria Rubino V, 28-622, TLR, full black, G2.0 Graphene + Silica, 100 TPI
