Bianchi

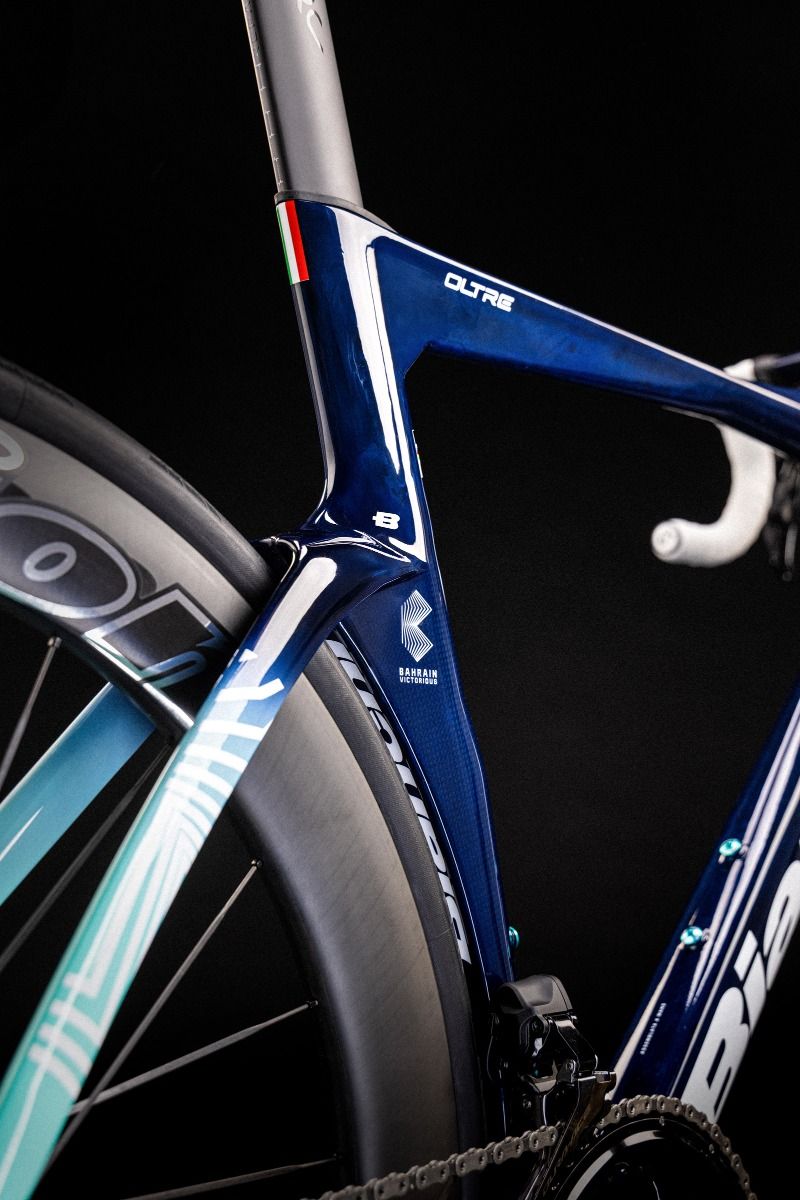

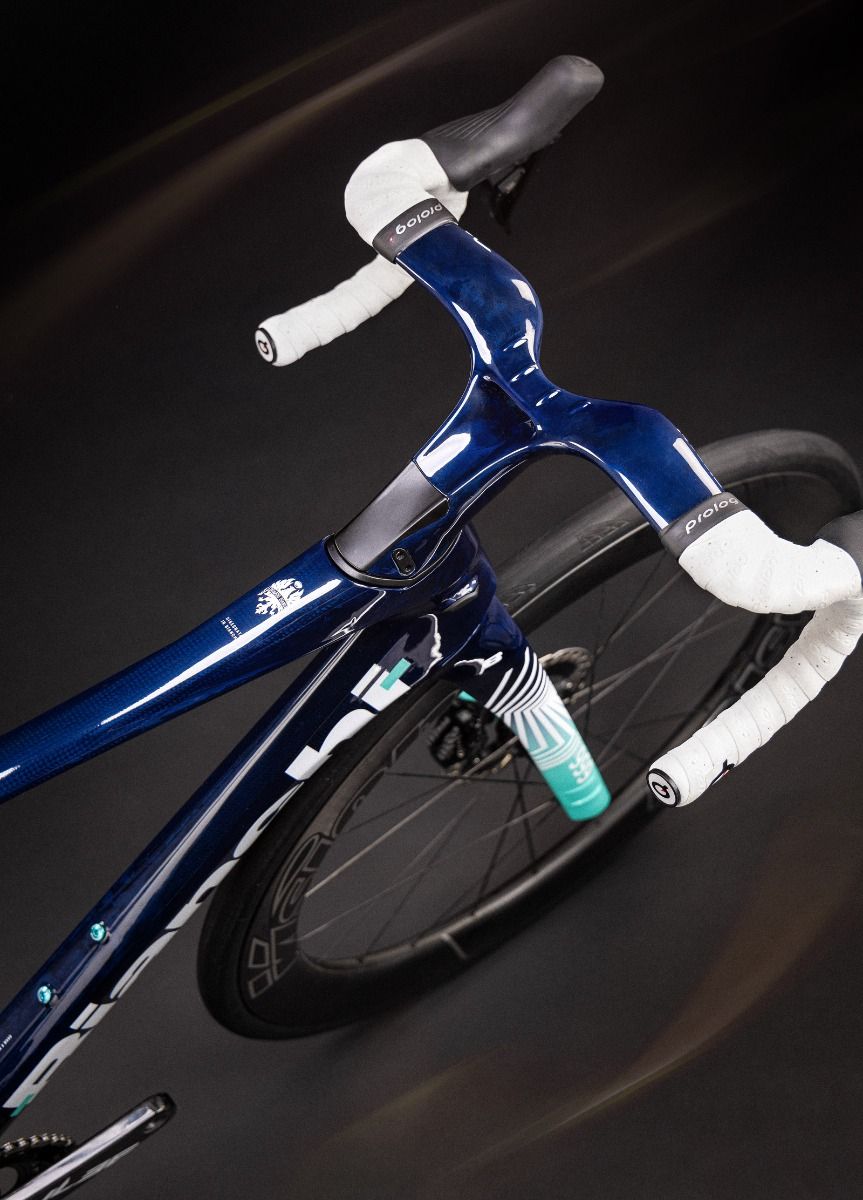

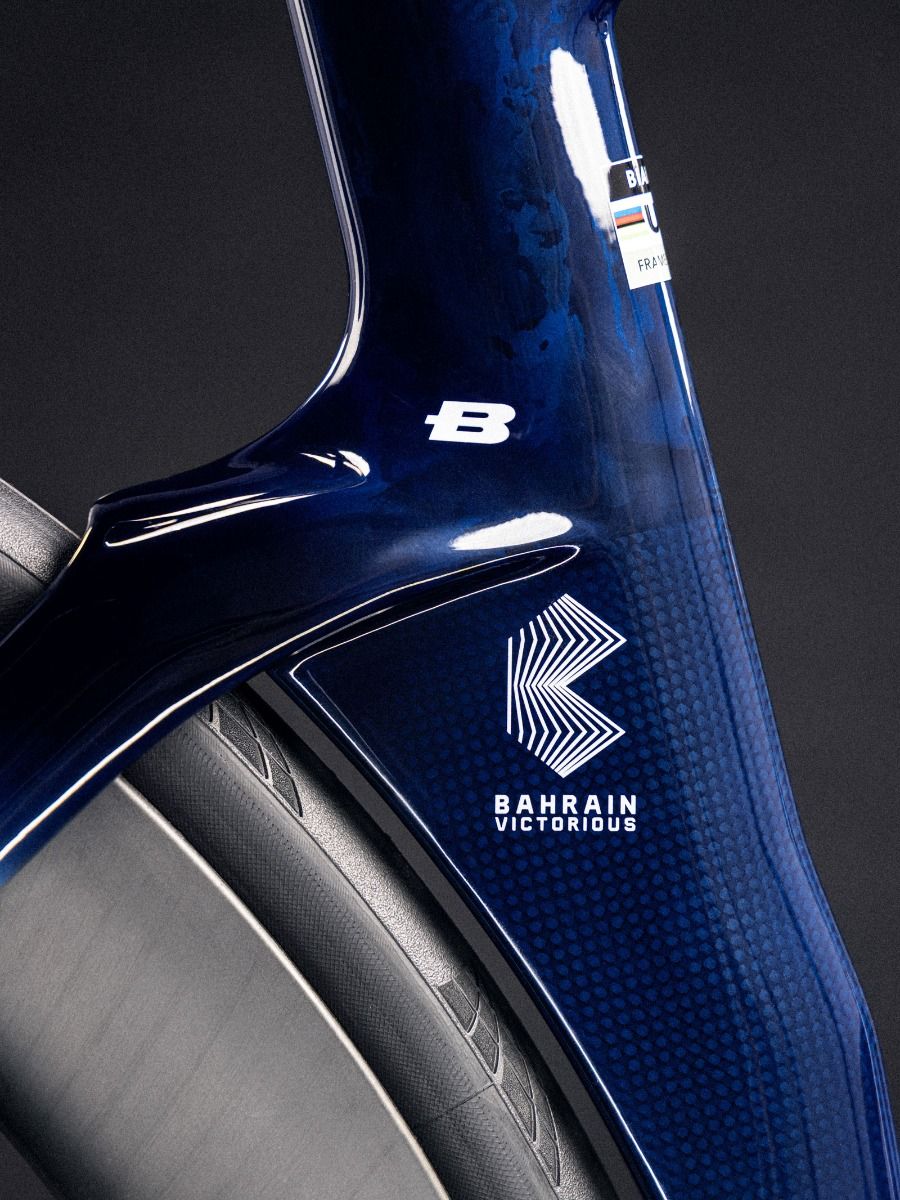

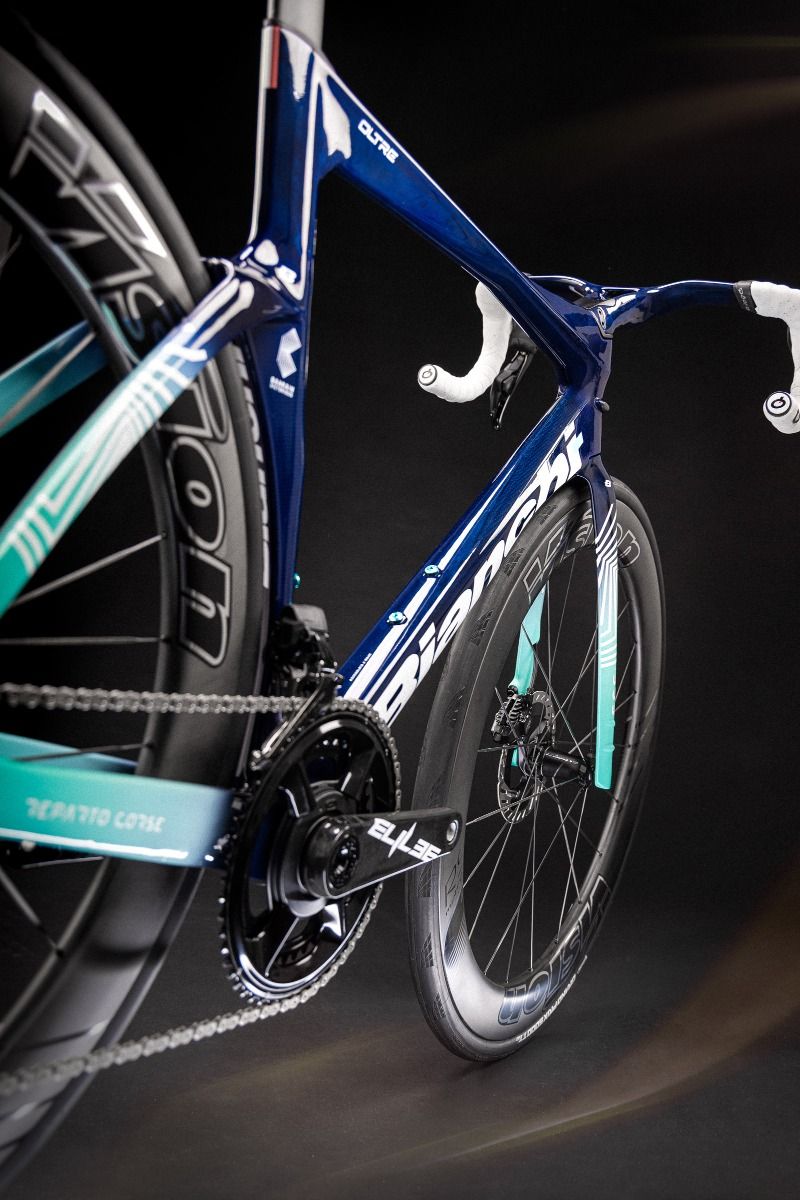

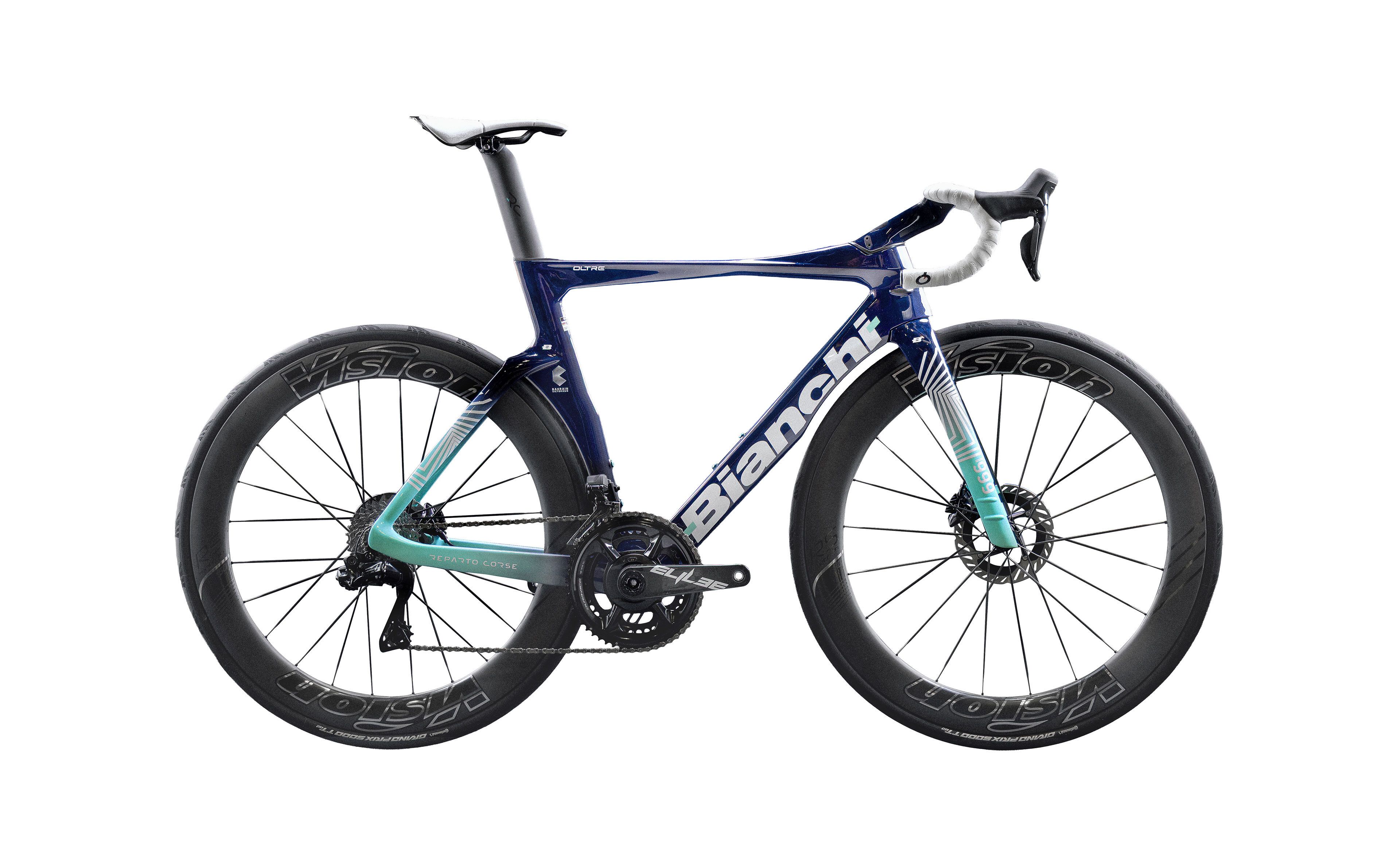

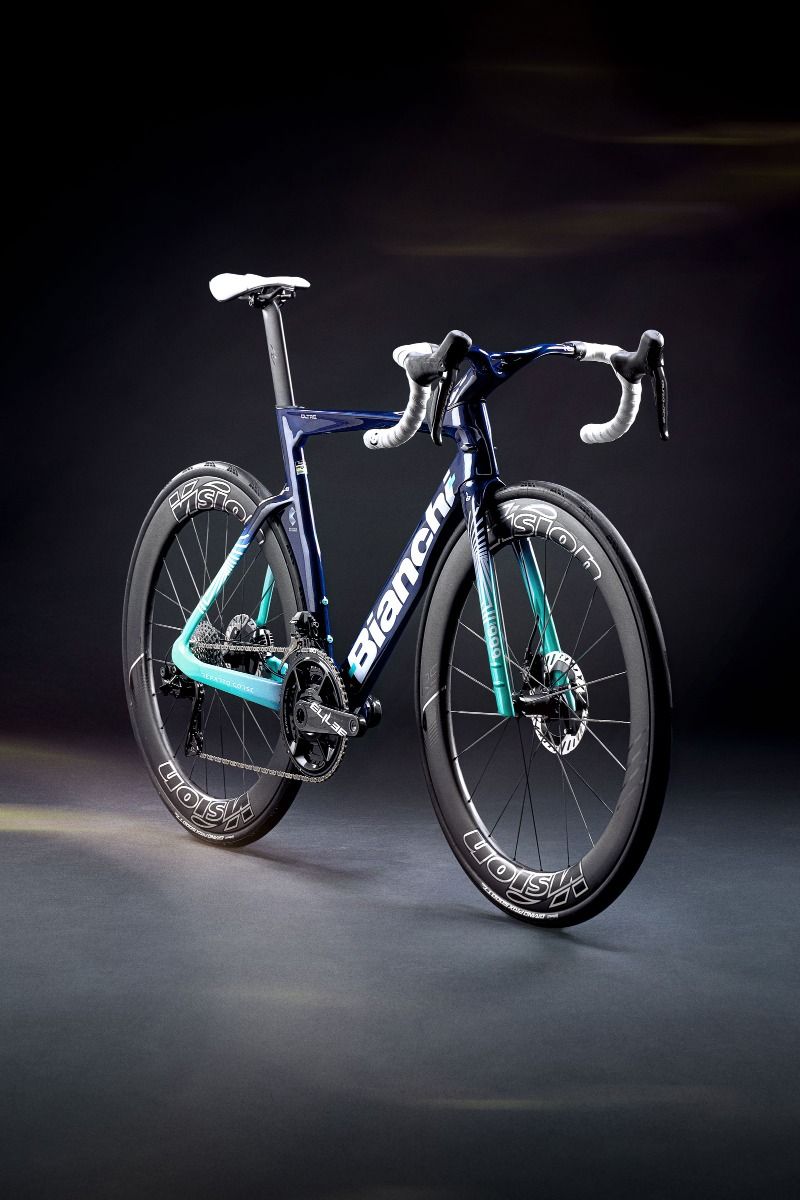

Oltre RC Team Replica 2026 Team Bahrain Victorious
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 470mm | 478mm | 504mm | 520mm | 536mm | 555mm |
| Reach | 385mm | 392mm | 393mm | 397mm | 402mm | 406mm |
| Headtube length | 83mm | 88mm | 103mm | 118mm | 133mm | 153mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Trail | — | — | — | — | — | — |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 515mm | 525mm | 536mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 450mm | 480mm | 510mm | 530mm | 550mm | 570mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 140mm | 140mm | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Oltre RC carbon High Modulus, Aero shape, only electronic groupsets, fully internal cable routing, headset 1"1/4 - 1"1/4, direct mount brakes, BB-PressFit 86.5x41 (sizes 47-50-53-55-57-59)
Suspension
Fork

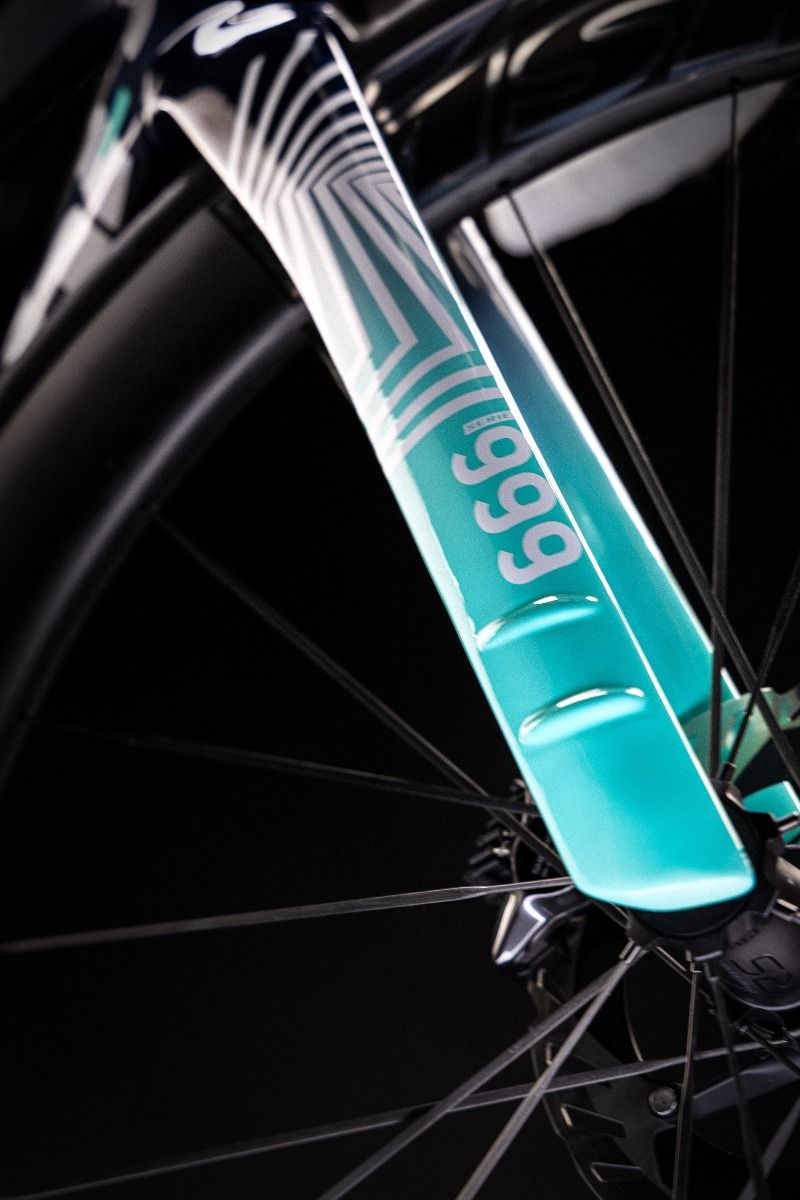

Bianchi Oltre RC full Carbon High Modulus, Aero shape, integrated head, disc, 1"1/4 head, 12x100mm thru axle
Brakes
Front brake
Shimano BR-R9270 hydraulic disc brake
Rear brake
Shimano BR-R9270 hydraulic disc brake
Front rotor
Shimano RT-CL900 Center Lock (Ice Tech), 160mm
Rear rotor
Shimano RT-CL900 Center Lock (Ice Tech), 160mm
Drivetrain
Shift levers
Shimano Dura-Ace Di2 ST-R9270
Rear derailleur
Shimano Dura-Ace Di2 RD-R9250, 12-speed
Front derailleur
Shimano Dura-Ace Di2 FD-R9250
Cassette
Shimano Dura-Ace CS-R9200, 12-speed, 11-30T
Chain
Shimano Dura-Ace, CN-M9100
Crankset
Elilee Carbon w/ power meter, w/ Shimano Dura-Ace chainrings 54/40T; crank length: 165mm (47-50cm), 170mm (53-55cm), 172.5mm (57-59cm)
Bottom bracket
Sram Press-Fit Road 86.5x41
Cockpit
Stem

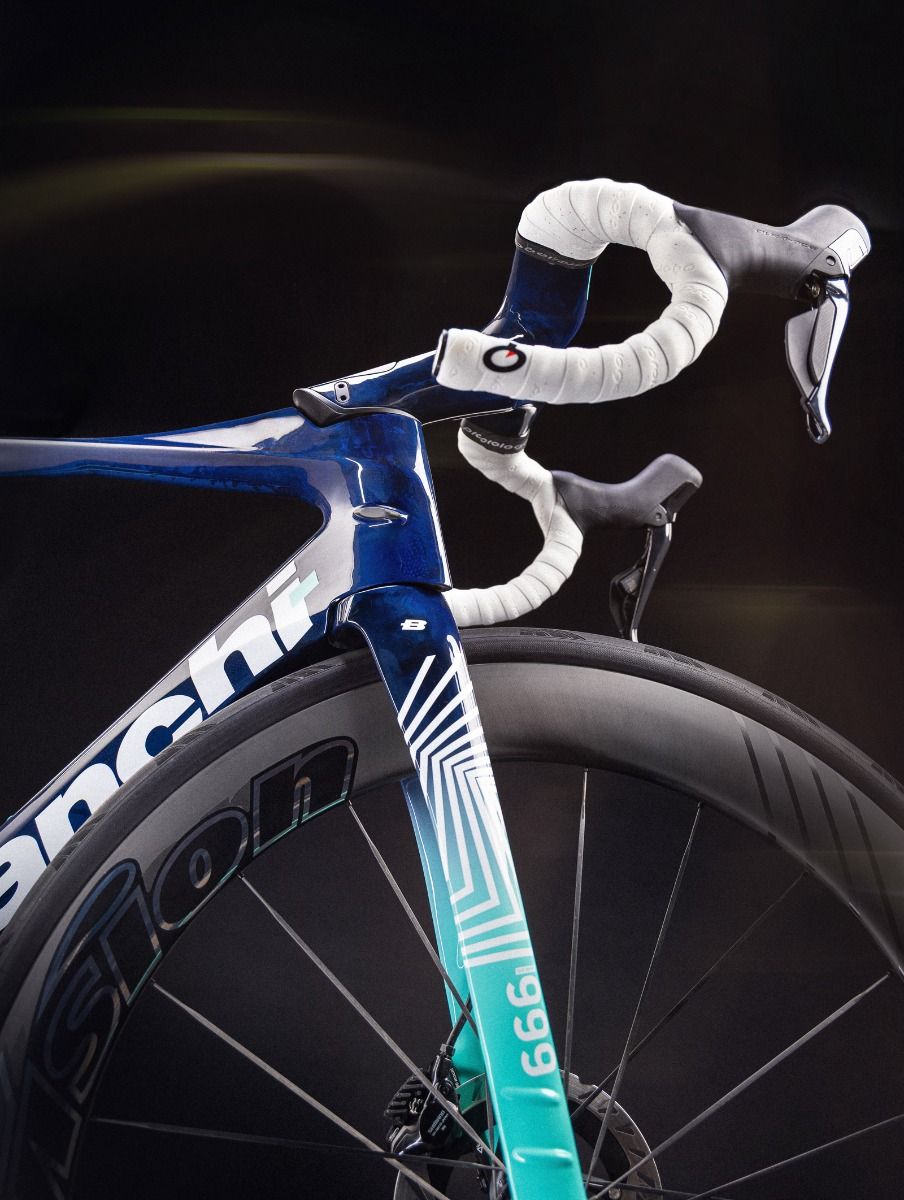

Bianchi Reparto Corse integrated handlebar/stem, Aero bar, Carbon, internal cable routing; drop 125mm, reach 80mm; size: 90/400mm (47-50cm), 100/420mm (53cm), 110/420mm (55-57cm), 120/440mm (59cm)
Handlebars
Integrated with stem (included in the stem)
Grips
Prologo PLAINTOUCH bar tape, 2.5mm thickness, white
Saddle
Prologo Scratch M5 PAS, carbon rails, 250x140mm, 171g, white
Seatpost
Bianchi Oltre full carbon, aero shape, 20mm offset; length: 280mm (47cm), 300mm (50-55cm), 350mm (57-59cm)
Wheels & Tires
Front wheel
Vision Metron 60, 23-622
Rear wheel
Vision Metron 60, 23-622
Front tire
Continental GP5000 TLR, 30-622
Rear tire
Continental GP5000 TLR, 30-622
