Bianchi

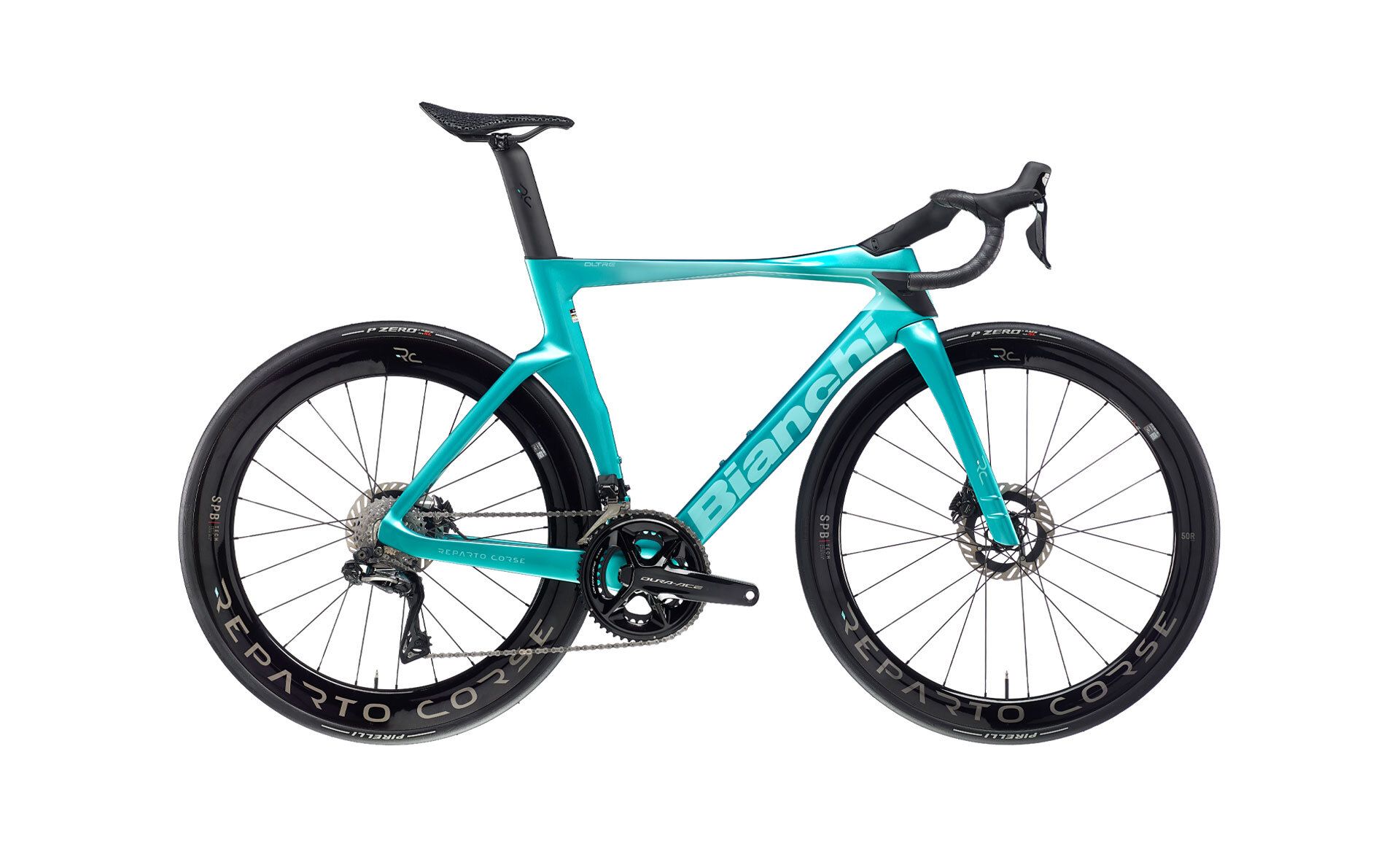

Oltre RC Dura-Ace Di2 12sp
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 | 47 | 50 | 53 | 55 | 57 | 59 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 470mm | 478mm | 504mm | 520mm | 536mm | 555mm | — | — | — | — | — | — |
| Reach | 385mm | 392mm | 393mm | 397mm | 402mm | 406mm | — | — | — | — | — | — |
| Headtube length | 83mm | 88mm | 103mm | 118mm | 133mm | 153mm | — | — | — | — | — | — |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm | — | — | — | — | — | — |
| Trail | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm | — | — | — | — | — | — |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | — | — | — | — | — | — |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm | — | — | — | — | — | — |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm | — | — | — | — | — | — |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm | — | — | — | — | — | — |
| Top tube | 515mm | 525mm | 536mm | 550mm | 560mm | 575mm | — | — | — | — | — | — |
| Standover height | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube length | 450mm | 480mm | 510mm | 530mm | 550mm | 570mm | — | — | — | — | — | — |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 | 47 | 50 | 53 | 55 | 57 | 59 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | — | — | — | — | — | — | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm |
| Handlebar reach | — | — | — | — | — | — | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | — | — | — | — | — | — | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | — | — | — | — | — | — | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Oltre RC carbon aero shape, electronic drivetrain only, headset 1-1/4"-1-1/4", BB PressFit 86.5x41mm, integrated seat clamp, flat mount disc, internal routing, thru axle 12x142mm (sizes 47-50-53-55-57-59cm)
Suspension
Fork
Bianchi Full Carbon aero fork, disc, integrated head 1-1/4", flat mount, thru axle 12x100mm
Brakes
Front brake
Shimano Dura-Ace BR-R9270 hydraulic disc brake
Rear brake
Shimano Dura-Ace BR-R9270 hydraulic disc brake
Front rotor
Shimano CL900 Center Lock w/ Ice Tech, 160mm
Rear rotor
Shimano CL900 Center Lock w/ Ice Tech, 160mm
Drivetrain
Shift levers
Shimano Dura-Ace Di2 ST-R9270 hydraulic disc brake levers
Rear derailleur
Shimano Dura-Ace Di2 12-speed RD-R9250
Front derailleur
Shimano Dura-Ace Di2 12-speed FD-R9250
Cassette
Shimano Dura-Ace 12-speed CS-R9200, 11-30T
Chain
Shimano Dura-Ace 12-speed (CN-M9100 listed)
Crankset
Shimano Dura-Ace 12-speed FC-R9200 w/ 4iiii Precision 3+ dual-side power meter, 52/36T (170mm: 47/54cm; 172.5mm: 55/59cm)
Bottom bracket
Shimano SM-BB92-41B press fit (road)
Cockpit
Stem
Integrated carbon aero bar/stem (drop 125mm, reach 80mm), Di2 compatible (90x400: 47/50cm; 100x420: 53cm; 110x420: 55/57cm; 120x440: 59cm)
Handlebars
Integrated (included with stem)
Grips
Bianchi Arrow premium bar tape, 2.5mm thickness, black
Saddle
Bianchi RC139 Carbon Air, 250x139mm, 7x9.3mm rails, 168g
Seatpost
Oltre full carbon aero seatpost, 20mm offset (280mm: 47cm; 300mm: 50–55cm; 350mm: 57–59cm)
Wheels & Tires
Front wheel
Reparto Corse Carbon SPB 50mm profile, 700x21c, tubeless ready
Rear wheel
Reparto Corse Carbon SPB 65mm profile, 700x21c, XDR freehub body, tubeless ready
Front tire
Pirelli P ZERO Race SL TLR, 28-622, 120 tpi
Rear tire
Pirelli P ZERO Race SL TLR, 28-622, 120 tpi
