Bianchi

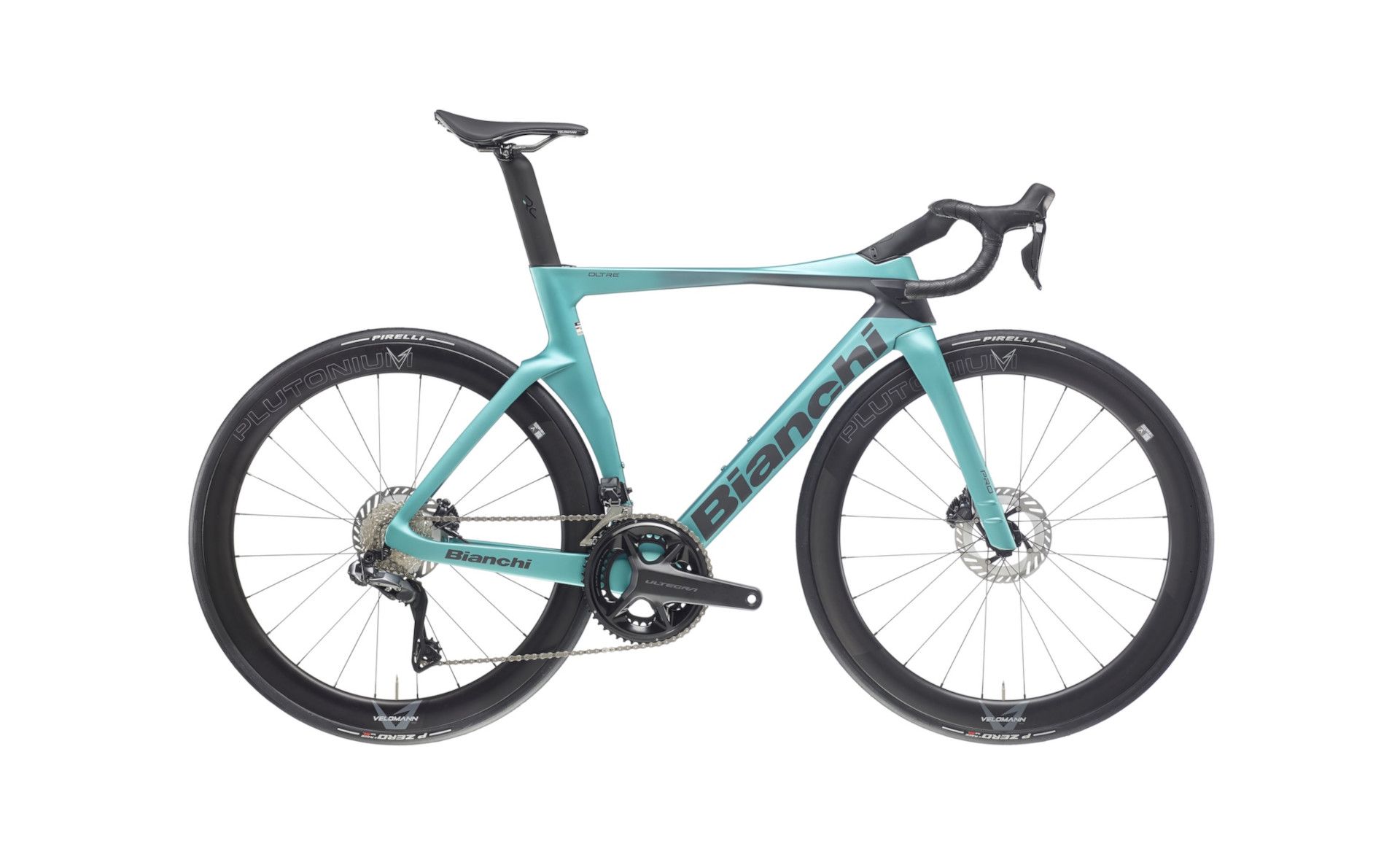

Oltre Pro Shimano Ultegra Di2 12sp
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 470mm | 478mm | 504mm | 520mm | 536mm | 555mm |
| Reach | 385mm | 392mm | 393mm | 397mm | 402mm | 406mm |
| Headtube length | 83mm | 88mm | 103mm | 118mm | 133mm | 153mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Trail | — | — | — | — | — | — |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 515mm | 525mm | 536mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 450mm | 480mm | 510mm | 530mm | 550mm | 570mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 170mm | — | 170mm | 172.5mm | — | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Oltre PRO carbon w/ Bianchi CV System, aero shape, electronic drivetrain only, headset 1-1/4"-1-1/4", BB PressFit 86.5x41mm, integrated seat clamp, flat-mount disc, internal cable routing, 12x142mm thru-axle (sizes 47/50/53/55/57/59cm)
Suspension
Fork
Full carbon aero fork w/ Bianchi CV System, disc brakes, integrated 1-1/4" steerer, flat-mount, 12x100mm thru-axle
Brakes
Front brake
Shimano Ultegra BR-R8170 hydraulic disc brake (as part of ST-R8170/BR-R8170 system)
Rear brake
Shimano Ultegra BR-R8170 hydraulic disc brake (as part of ST-R8170/BR-R8170 system)
Front rotor
Shimano CL900 Center Lock w/ Ice Tech, 160mm
Rear rotor
Shimano CL900 Center Lock w/ Ice Tech, 160mm
Drivetrain
Shift levers
Shimano Ultegra Di2 hydraulic road, ST-R8170 (paired with BR-R8170 calipers), for 160mm rotor
Rear derailleur
Shimano Ultegra Di2 12-speed, RD-R8150
Front derailleur
Shimano Ultegra Di2 12-speed, FD-R8150
Cassette
Shimano Ultegra CS-R8100 12-speed, 11-12-13-14-15-16-17-19-21-24-27-30T
Chain
Shimano Ultegra 12-speed, CN-M8100
Crankset
Shimano Ultegra FC-R8100 12-speed w/ 4iiii Precision 3+ power meter, 52/36T (Crank length: 170mm for 47/53cm; 172.5mm for 55/59cm)
Bottom bracket
Shimano SM-BB72-41B, press fit road (with bearings/inner cover)
Cockpit
Stem
One-piece integrated aero handlebar/stem (carbon), drop 125mm, reach 80mm, Di2 compatible (Ext: 90x400 for 47/50cm; 100x420 for 53cm; 110x420 for 55/57cm; 120x440 for 59cm)
Handlebars
Included in the stem (one-piece integrated bar/stem)
Grips
Bianchi Arrow premium bar tape, 2.5mm thickness, black
Saddle
Velomann Mitora139 Lite Open Flow, carbon rails 7x9.3mm, carbon-reinforced nylon, 139mm wide, 250mm long
Seatpost
Oltre full carbon aero seatpost, 20mm offset (length: 280mm for 47cm; 300mm for 50–55cm; 350mm for 57–59cm)
Wheels & Tires
Front wheel
Velomann Plutonium, 50mm profile, 700x21c, 24h, HG body
Rear wheel
Velomann Plutonium, 50mm profile, 700x21c, 24h, HG body
Front tire
Pirelli P ZERO Race SL TLR, 28-622, 120 tpi
Rear tire
Pirelli P ZERO Race SL TLR, 28-622, 120 tpi
