Bianchi

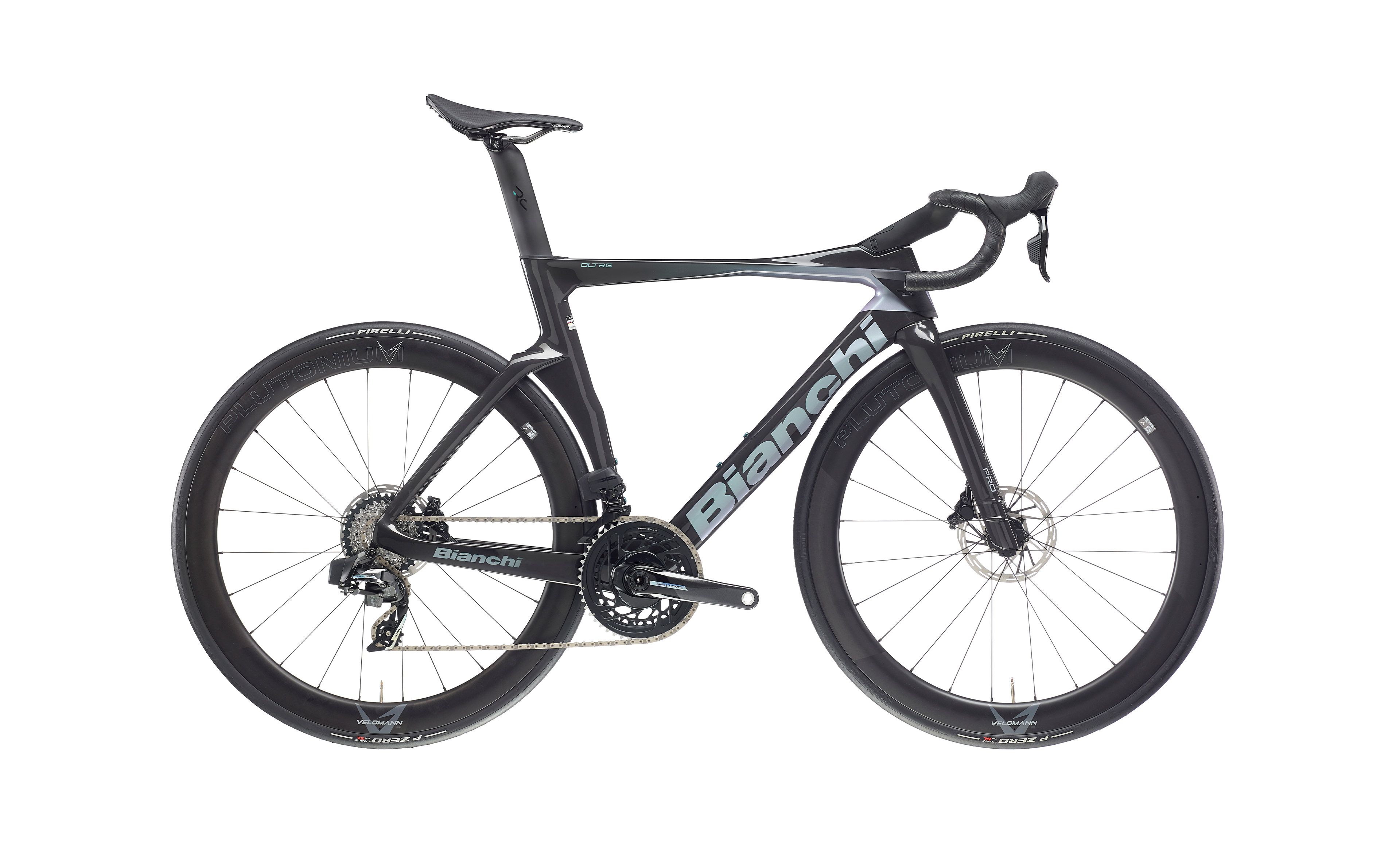

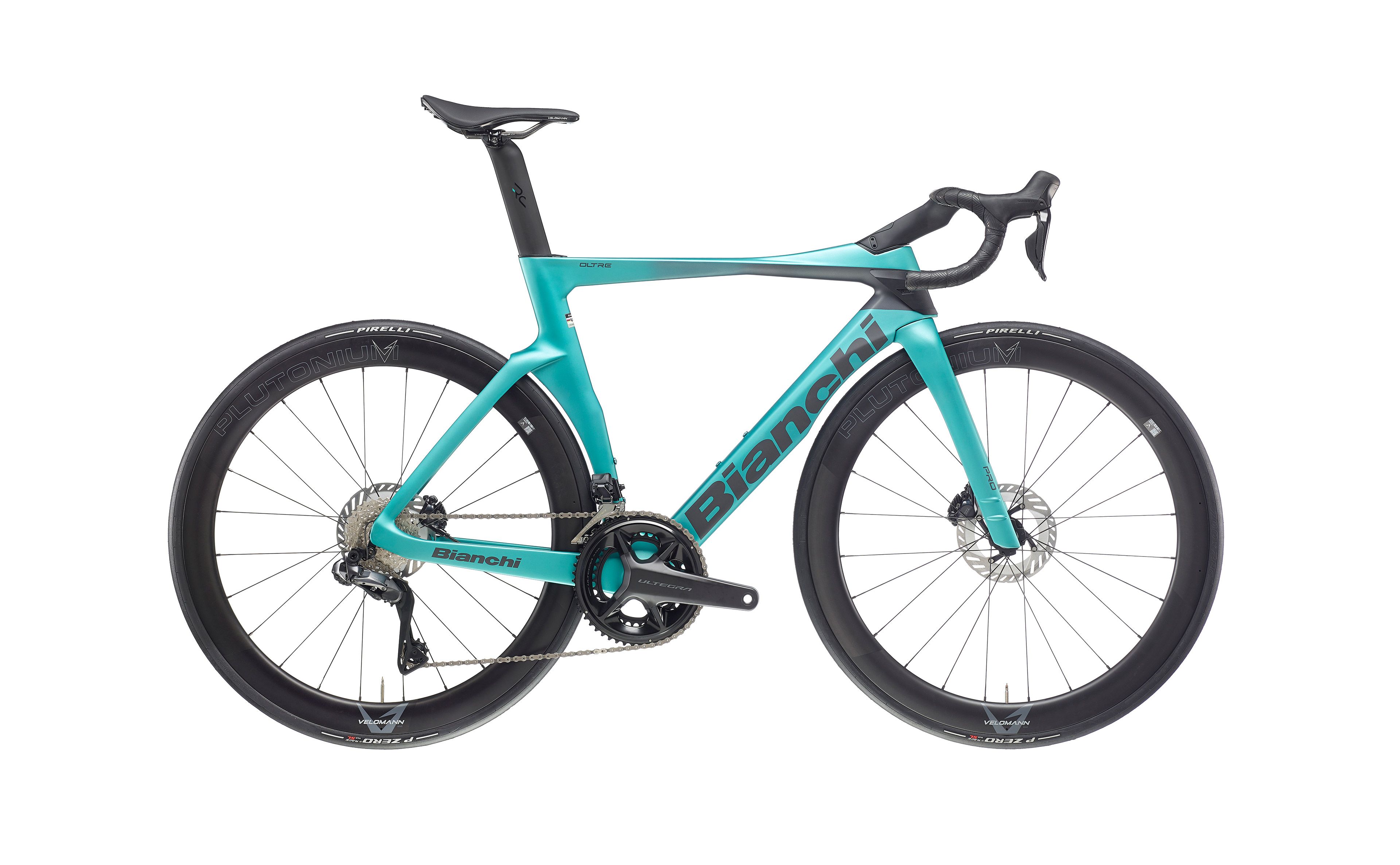

Oltre Pro Force eTap AXS E1 PWM
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 470mm | 478mm | 504mm | 520mm | 536mm | 555mm |
| Reach | 385mm | 392mm | 393mm | 397mm | 402mm | 406mm |
| Headtube length | 83mm | 88mm | 103mm | 118mm | 133mm | 153mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Trail | — | — | — | — | — | — |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 515mm | 525mm | 536mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 450mm | 480mm | 510mm | 530mm | 550mm | 570mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Oltre PRO full carbon, with Bianchi CV system, Aero shape, only electronic groupsets, fully internal cable routing, headset 1"1/4 - 1"1/4, direct mount brakes, BB-PressFit 86.5x41 sizes 47-50-53-55-57-59
Suspension
Fork
Bianchi Oltre PRO full Carbon High Modulus, with Bianchi CV System, Aero shape, integrated head, disc, 1"1/4 head, 12x100 mm thru axle
Brakes
Front brake
Sram Force E1, Hydraulic disc brake
Rear brake
Sram Force E1, Hydraulic disc brake
Front rotor
Sram Paceline, Center Lock, 160 mm
Rear rotor
Sram Paceline, Center Lock, 160 mm
Drivetrain
Shift levers
Sram Force AXS E1
Rear derailleur
Sram Force AXS E1, 12sp
Front derailleur
Sram Force AXS E1
Cassette
Sram Force XG 1270 E1, 10-33, 10-11-12-13-14-15-17-19-21-24-28-33T
Chain
Sram Force E1
Crankset
Sram Force E1, Quarq Power Meter, 48x35T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm)
Bottom bracket
Sram Press-Fit Road 86.5x41
Cockpit
Stem
Bianchi Reparto Corse integrated handlebar, Aero bar, Carbon, for internal cable routing, drop 125 mm, reach 80 mm Size: 90/400 mm (47-50 cm) ; 100/420 mm (53 cm) ; 110/420 mm (55-57 cm); 120/440 mm (59 cm)
Handlebars
Included in the stem
Grips
Bianchi Arrow premium tape, 2.5 mm thickness, full black
Saddle
Velomann Mitora 139 Lite, open flow, Carbon rails 7x9.1 mm, Carbon-reinforced nylon shell, length 250 mm, width 139 mm
Seatpost
Bianchi Oltre, full carbon, aero shape, 20 mm offset length: 280 mm (47 cm); 300 mm (50-55 cm); 350 mm (57-59 cm)
Wheels & Tires
Front wheel
Velomann Plutonium, Carbon rim, 50 mm profile, 700x21c, 24h, XDR body
Rear wheel
Velomann Plutonium, Carbon rim, 50 mm profile, 700x21c, 24h, XDR body
Front tire
Pirelli P Zero Race SL TLR, 28-622, 120 TPI
Rear tire
Pirelli P Zero Race SL TLR, 28-622, 120 TPI
