Bianchi

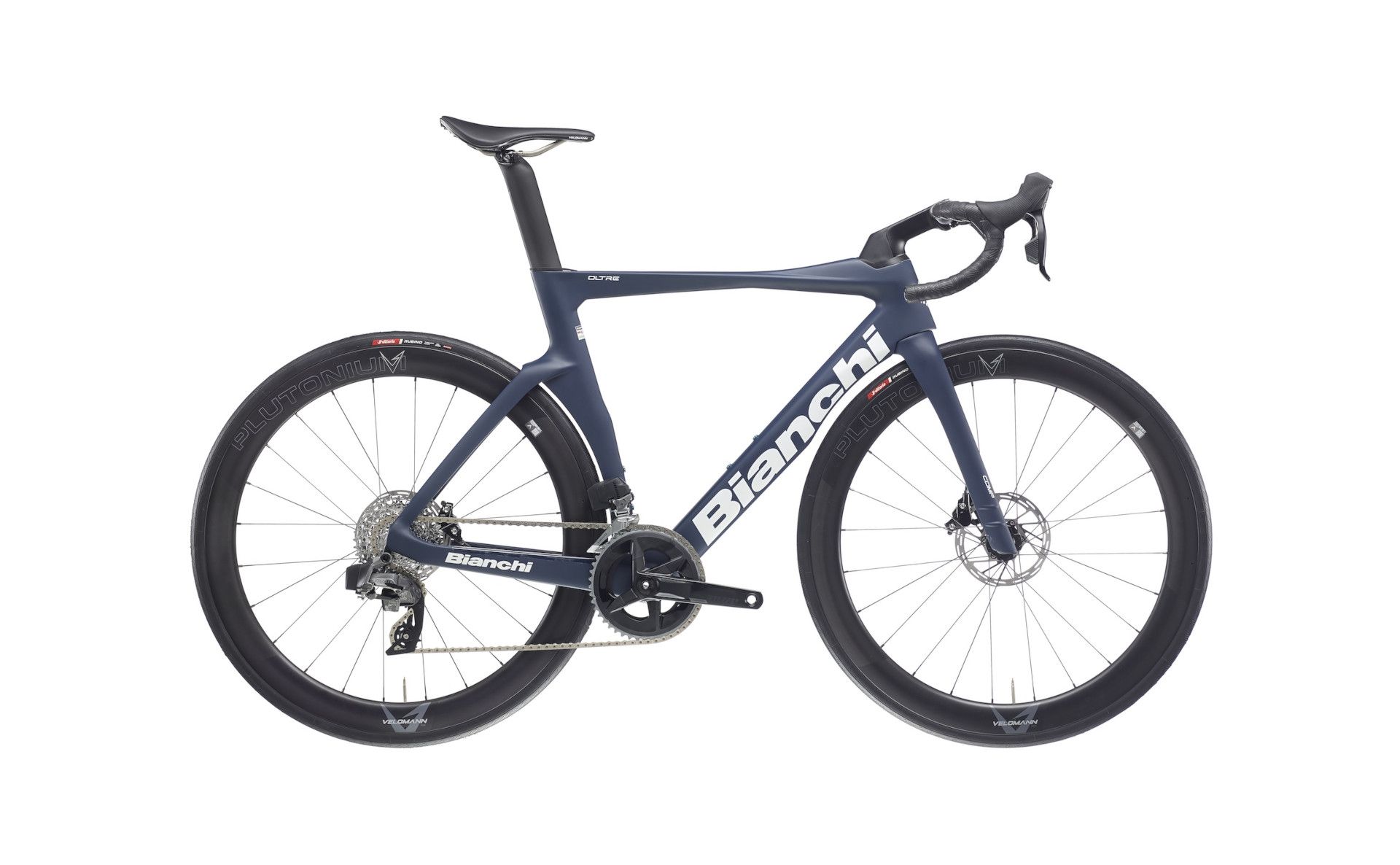

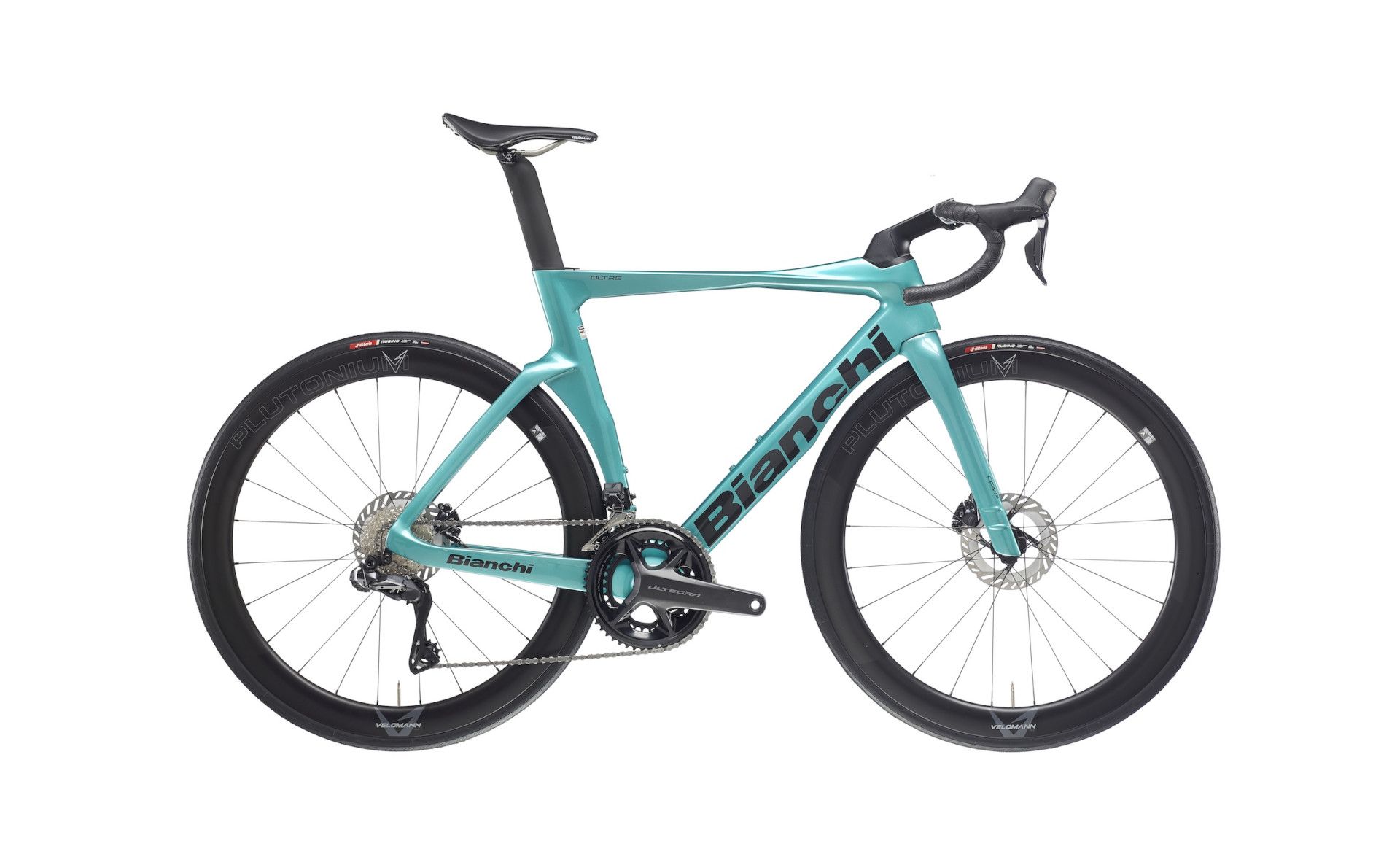

Oltre Comp Ultegra Di2 12sp
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Stack | 470mm | 478mm | 504mm | 520mm | 536mm | 555mm |
| Reach | 385mm | 392mm | 393mm | 397mm | 402mm | 406mm |
| Headtube length | 83mm | 88mm | 103mm | 118mm | 133mm | 153mm |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72.5deg | 73deg | 73deg |
| BB height | — | — | — | — | — | — |
| BB drop | 58mm | 58mm | 68mm | 68mm | 68mm | 68mm |
| Trail | — | — | — | — | — | — |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 579mm | 581mm | 582mm | 588mm | 593mm | 603mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 412mm | 412mm |
| Wheelbase | 982mm | 983mm | 984mm | 988mm | 996mm | 1005mm |
| Top tube | 515mm | 525mm | 536mm | 550mm | 560mm | 575mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 450mm | 480mm | 510mm | 530mm | 550mm | 570mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Crank length | 170mm | — | 170mm | 172.5mm | — | 172.5mm |
| Stem length | 90mm | 90mm | 100mm | 110mm | 110mm | 120mm |
| Handlebar width | 400mm | 400mm | 400mm | 420mm | 420mm | 420mm |
| Handlebar reach | 74mm | 74mm | 74mm | 74mm | 74mm | 74mm |
| Handlebar drop | 116mm | 116mm | 116mm | 116mm | 116mm | 116mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Oltre Comp carbon frame, disc brakes, electronic and mechanical shifting compatible, internal cable routing, 1.5-1.5 headset, BB PressFit 86.5x41, flat mount brakes, thru axle 12x142mm, sizes 47-50-53-55-57-59cm
Suspension
Fork
Full carbon aero fork, disc brakes, integrated head 1.5, flat mount caliper, thru axle 12x100mm
Brakes
Front brake
Shimano BR-R8170 hydraulic disc brake (included with shifters)
Rear brake
Shimano BR-R8170 hydraulic disc brake (included with shifters)
Front rotor
Shimano Center Lock w/ Ice Tech, 160mm
Rear rotor
Shimano Center Lock w/ Ice Tech, 160mm
Drivetrain
Shift levers
Shimano Ultegra Di2 hydraulic road disc, ST-R8170 (with BR-R8170 calipers), for 160mm rotor
Rear derailleur
Shimano Ultegra Di2 12-speed, RD-R8150
Front derailleur
Shimano Ultegra Di2 12-speed, FD-R8150
Cassette
Shimano Ultegra CS-R8100, 12-speed, 11-12-13-14-15-16-17-19-21-24-27-30T
Chain
Shimano Ultegra 12-speed, CN-M8100
Crankset
Shimano Ultegra 12-speed, FC-R8100, 52x36T; crank length: 170mm (47/53cm), 172.5mm (55/59cm)
Bottom bracket
Shimano SM-BB72-41B, press fit road BB (bearing, inner cover)
Cockpit
Stem
Velomann Aero stem, alloy, oversize, 1-1/8; size: 90mm (47/50cm), 100mm (53cm), 110mm (55/57cm), 120mm (59cm)
Handlebars
Velomann Aero Compact handlebar, alloy, 31.8mm clamp, reach 74mm, drop 116mm, for fully internal cable routing; size: 400mm (47-53cm), 420mm (55-59cm)
Grips
Bianchi Arrow premium bar tape, 2.5mm thickness, black
Saddle
Velomann Mitora139, open flow, AISI rails 7x7mm, carbon-reinforced nylon; width 139mm, length 250mm
Seatpost
Oltre full carbon aero seatpost (special dimension), 20mm offset; length: 280mm (47cm), 300mm (50-55cm), 350mm (57-59cm)
Wheels & Tires
Front wheel
Velomann Plutonium wheelset, 50mm profile, 700x21c, 24h, HG body
Rear wheel
Velomann Plutonium wheelset, 50mm profile, 700x21c, 24h, HG body
Front tire
Vittoria Rubino 28-622, full black, G2.0 (graphene + silica), 100 TPI
Rear tire
Vittoria Rubino 28-622, full black, G2.0 (graphene + silica), 100 TPI
