Bianchi

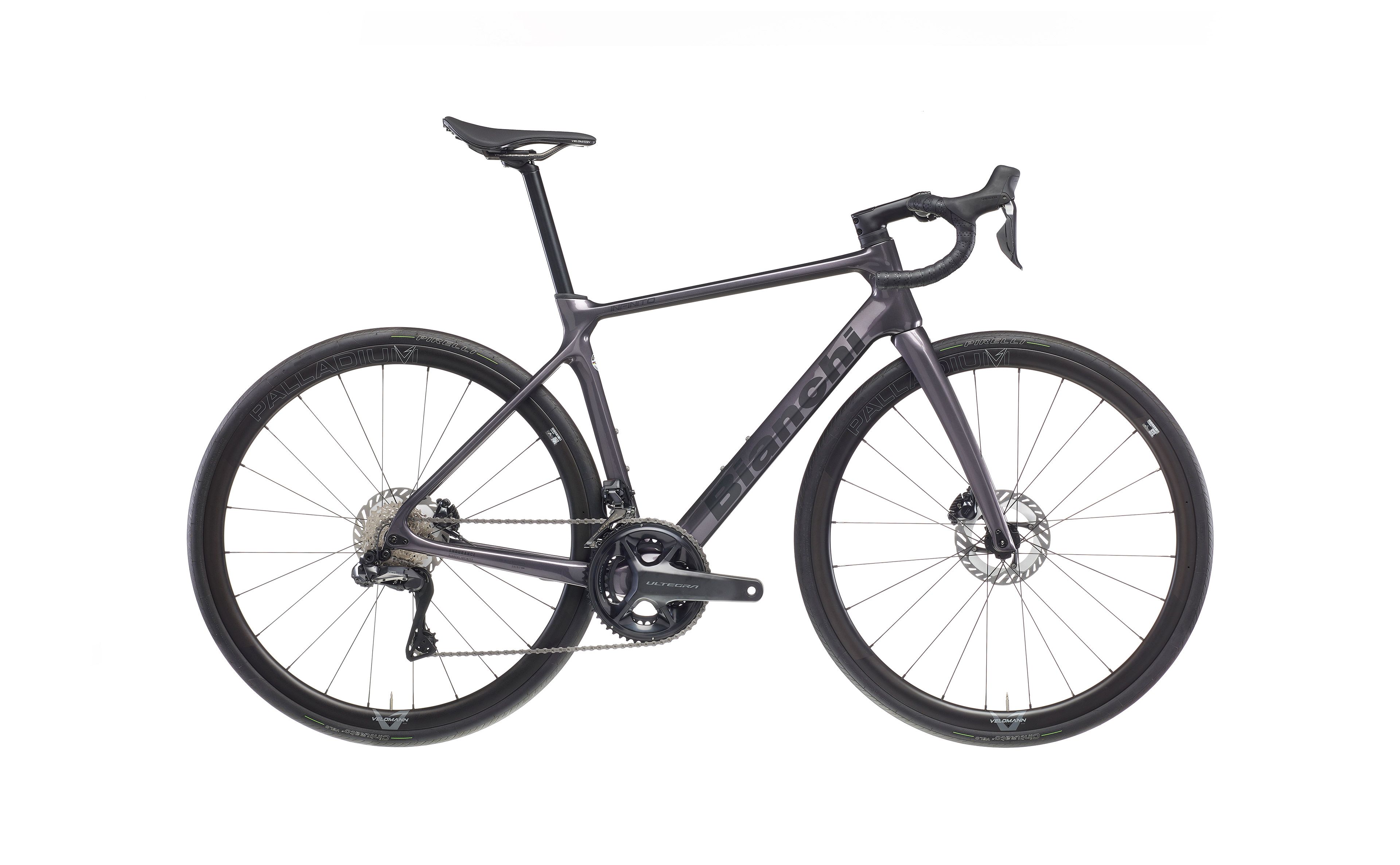

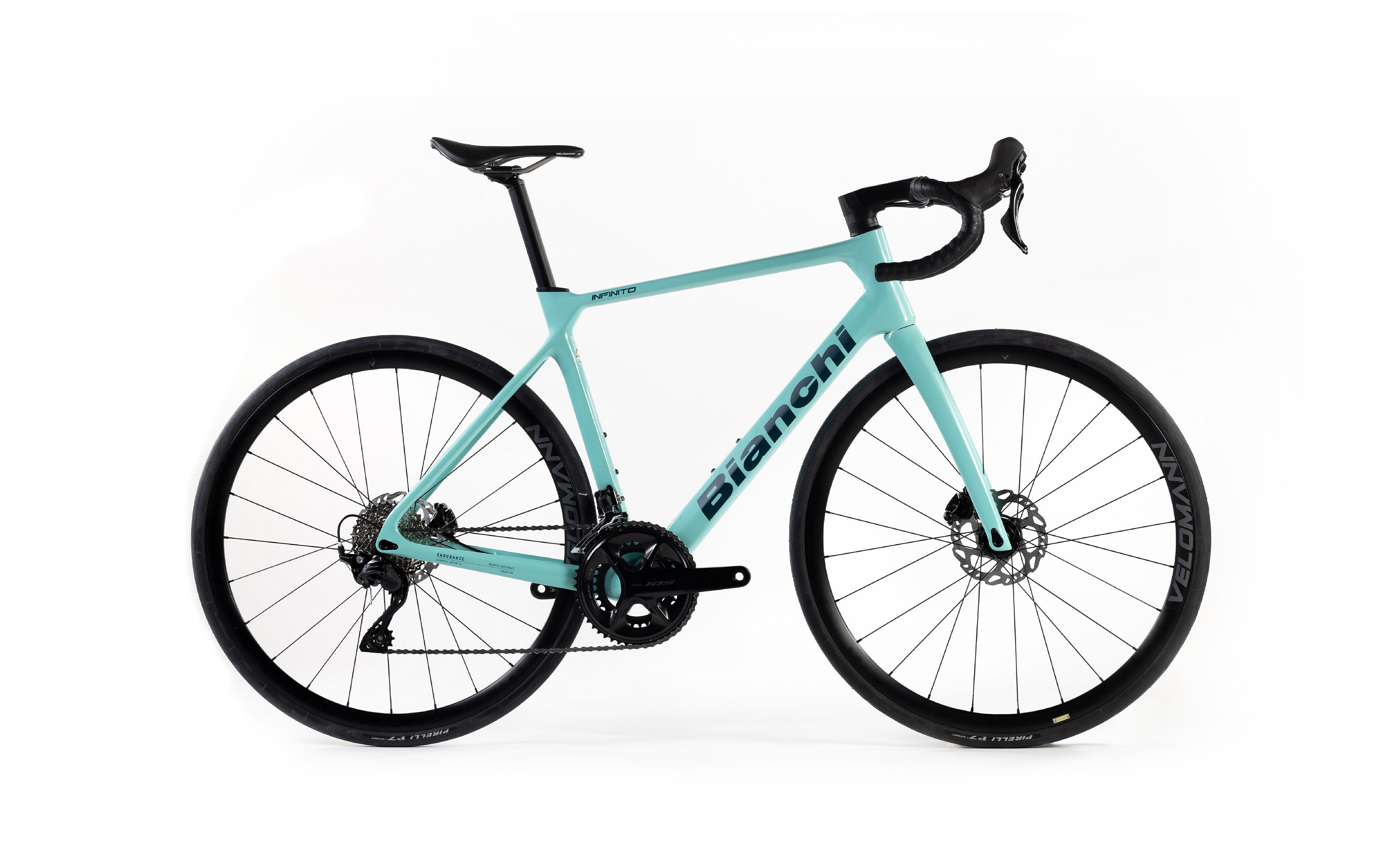

Infinito Shimano Ultegra Di2 12sp
Gallery
Images
action
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 | 610 |
|---|---|---|---|---|---|---|---|
| Stack | 521mm | 539mm | 553mm | 569mm | 585mm | 600mm | 614mm |
| Reach | 371mm | 375mm | 377mm | 381mm | 386mm | 391mm | 392mm |
| Headtube length | 120mm | 135mm | 150mm | 165mm | 165mm | 195mm | 210mm |
| Headtube angle | 70.5deg | 71.5deg | 71deg | 72deg | 72.5deg | 72.5deg | 72.5deg |
| BB height | — | — | — | — | — | — | — |
| BB drop | 68mm | 68mm | 68mm | 68mm | 68mm | 68mm | 68mm |
| Trail | — | — | — | — | — | — | — |
| Fork length | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 580mm | 583mm | 588mm | 593mm | 593mm | 608mm | 612mm |
| Chainstay length | 415mm | 415mm | 415mm | 415mm | 415mm | 420mm | 420mm |
| Wheelbase | 986mm | 988mm | 993mm | 999mm | 1004mm | 1019mm | 1023mm |
| Top tube | 515mm | 525mm | 535mm | 550mm | 560mm | 575mm | 585mm |
| Standover height | — | — | — | — | — | — | — |
| Seat tube length | 420mm | 450mm | 480mm | 500mm | 520mm | 540mm | 560mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 73.5deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 470 | 500 | 530 | 550 | 570 | 590 | 610 |
|---|---|---|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 172.5mm | 175mm |
| Stem length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm | 120mm |
| Handlebar width | 400mm | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Handlebar reach | 74mm | 74mm | 74mm | 74mm | 74mm | 74mm | 74mm |
| Handlebar drop | 116mm | 116mm | 116mm | 116mm | 116mm | 116mm | 116mm |
| Saddle width | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm | 139mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Infinito, carbon, head tube 1.5"-1.5", internal cable routing, Mechanical/Electronic, tire clearance: 32 mm, Pressfit 86.5x41, thru axle 12 x 142 mm (sizes 44-47-50-53-55-57-59-61)
Suspension
Fork
Bianchi Infinito, carbon, 1.5" head, thru axle 12 x 100 mm
Brakes
Front brake
Shimano BR-R8170 hydraulic disc brake
Rear brake
Shimano BR-R8170 hydraulic disc brake
Front rotor
Shimano RT-CL800 Center Lock with Ice Tech, 160 mm
Rear rotor
Shimano RT-CL800 Center Lock with Ice Tech, 160 mm
Drivetrain
Shift levers
Shimano Ultegra Di2 ST-R8170 (shifter lever)
Rear derailleur
Shimano Ultegra Di2 RD-R8150, 12-speed
Front derailleur
Shimano Ultegra Di2 FD-R8150
Cassette
Shimano Ultegra CS-R8101, 12-speed, 11-34T
Chain
Shimano Ultegra CN-M8100
Crankset
Shimano Ultegra FC-R8100, 4iiii Precision 3 single-side power meter, 52/36T (crank length: 170 mm 47–53 cm; 172.5 mm 55–59 cm; 175 mm 61 cm)
Bottom bracket
Shimano SM-BB72-41B, press fit (road)
Cockpit
Stem
Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system (size: 90 mm 47 cm; 100 mm 50–53 cm; 110 mm 55–57 cm; 120 mm 59–61 cm)
Handlebars
Velomann Aero Compact handlebar, alloy, 31.8 mm clamp, reach 74 mm, drop 116 mm (size: 400 mm 47–53 cm; 420 mm 55–57 cm; 440 mm 59–61 cm)
Grips
Bianchi Arrow premium tape, 2.5 mm thickness, full black
Saddle
Velomann Mitora 139 Lite, open flow, carbon rails 7x9.1 mm, carbon-reinforced nylon shell, 250 x 139 mm
Seatpost
Velomann SP155T.2 (shaft AL2014, head AL6061), 25 mm setback (length: 350 mm 47–57 cm; 380 mm 59–61 cm)
Wheels & Tires
Front wheel
Velomann Palladium, carbon rim, 33 mm profile, 700x21c, 24h, HG11 body
Rear wheel
Velomann Palladium, carbon rim, 33 mm profile, 700x21c, 24h, HG11 body
Front tire
Pirelli Cinturato Velo TLR, 700x32, ArmourTech, 60 TPI
Rear tire
Pirelli Cinturato Velo TLR, 700x32, ArmourTech, 60 TPI
