Bianchi

Infinito Shimano 105 Di2 (YVBR8)

Price TBDYVBR8

Gallery

Images

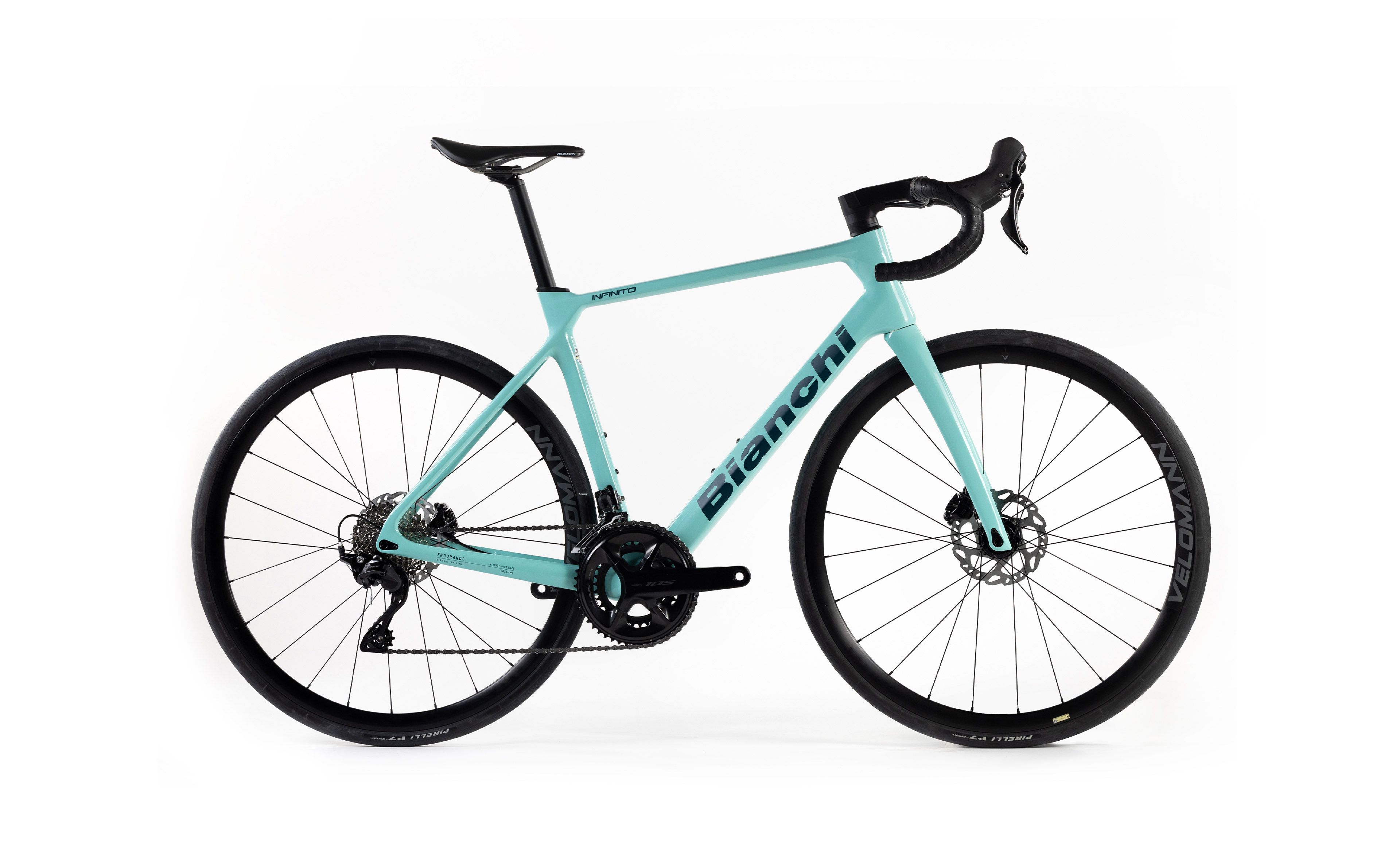

Bianchi Infinito Shimano 105 Di2 (YVBR8) 1

lifestyle

Geometry

Frame geometry

Geometry	470	500	530	550	570	590	610
Stack	521mm	539mm	553mm	569mm	585mm	600mm	614mm
Reach	371mm	375mm	377mm	381mm	386mm	391mm	392mm
Headtube length	120mm	135mm	150mm	165mm	165mm	195mm	210mm
Headtube angle	70.5deg	71.5deg	71deg	72deg	72.5deg	72.5deg	72.5deg
BB height	—	—	—	—	—	—	—
BB drop	68mm	68mm	68mm	68mm	68mm	68mm	68mm
Trail	—	—	—	—	—	—	—
Fork length	375mm	375mm	375mm	375mm	375mm	375mm	375mm
Fork offset	43mm	43mm	43mm	43mm	43mm	43mm	43mm
Front center	580mm	583mm	588mm	593mm	593mm	608mm	612mm
Chainstay length	415mm	415mm	415mm	415mm	415mm	420mm	420mm
Wheelbase	986mm	988mm	993mm	999mm	1004mm	1019mm	1023mm
Top tube	515mm	525mm	535mm	550mm	560mm	575mm	585mm
Standover height	—	—	—	—	—	—	—
Seat tube length	420mm	450mm	480mm	500mm	520mm	540mm	560mm
Seat tube angle	74.5deg	74.5deg	74deg	73.5deg	73.5deg	73deg	72.5deg

Spec geometry

Geometry	470	500	530	550	570	590	610
Crank length	170mm	170mm	170mm	172.5mm	172.5mm	172.5mm	175mm
Stem length	90mm	100mm	100mm	110mm	110mm	120mm	120mm
Handlebar width	400mm	400mm	400mm	420mm	420mm	440mm	440mm
Handlebar reach	80mm	80mm	80mm	80mm	80mm	80mm	80mm
Handlebar drop	130mm	130mm	130mm	130mm	130mm	130mm	130mm
Saddle width	139mm	139mm	139mm	139mm	139mm	139mm	139mm
Dropper post travel	—	—	—	—	—	—	—
Seatpost offset	25mm	25mm	25mm	25mm	25mm	25mm	25mm

Specs

Full specs

Frame

Bianchi Infinito, carbon, head tube 1.5"- 1.5", internal cable routing, Mechanical/Electronic, tire clearance: 32 mm, Pressfit 86.5x41, thru axle 12 x 142 mm (sizes 44-47-50-53-55-57-59-61)

Suspension

Fork

Bianchi Infinito, carbon, 1.5" head, thru axle 12 x 100 mm

Brakes

Front brake

Shimano BR-R7170 hydraulic disc brake

Rear brake

Shimano BR-R7170 hydraulic disc brake

Front rotor

Shimano SM-RT70 Center Lock with Ice Tech, 160 mm

Rear rotor

Shimano SM-RT70 Center Lock with Ice Tech, 160 mm

Drivetrain

Shift levers

Shimano 105 Di2, shifter lever ST-R7170

Rear derailleur

Shimano 105 Di2, RD-R7150, 12-speed

Front derailleur

Shimano 105 Di2, FD-R7150

Cassette

Shimano 105, CS-R7100, 12-speed, 11-34T

Chain

Shimano 105, CN-M7100

Crankset

Shimano 105, FC-R7100, Hollowtech 2, 50x34T; crank length: 170 mm (47-53 cm), 172.5 mm (55-59 cm), 175 mm (61 cm)

Bottom bracket

Token Ninja Lite premium bearings

Cockpit

Stem

Velomann AL6061, rise -7°; size: 90 mm (47 cm), 100 mm (50-53 cm), 110 mm (55-57 cm), 120 mm (59-61 cm)

Handlebars

Velomann Compact, AL6061, 31.8 mm clamp, reach 80 mm, drop 130 mm; size: 400 mm (47-53 cm), 420 mm (55-57 cm), 440 mm (59-61 cm)

Grips

Bianchi Hexagon tape, 2.5 mm thickness, black

Saddle

Velomann Mitora 139.1, steel rails, 250 x 139 mm

Seatpost

Velomann SP155T.2, shaft AL2014, head AL6061, seatback 25 mm; length: 350 mm (47-57 cm), 380 mm (59-61 cm)

Wheels & Tires

Front wheel

Velomann V30R, alloy, 23 mm internal width, 30 mm profile, 2:1 spoke pattern, j-bend spokes, black, HG11 body, weight: 1790 g

Rear wheel

Velomann V30R, alloy, 23 mm internal width, 30 mm profile, 2:1 spoke pattern, j-bend spokes, black, HG11 body, weight: 1790 g

Front tire

Pirelli P7 Sport, 32-622, Techbelt

Rear tire

Pirelli P7 Sport, 32-622, Techbelt
