Bianchi

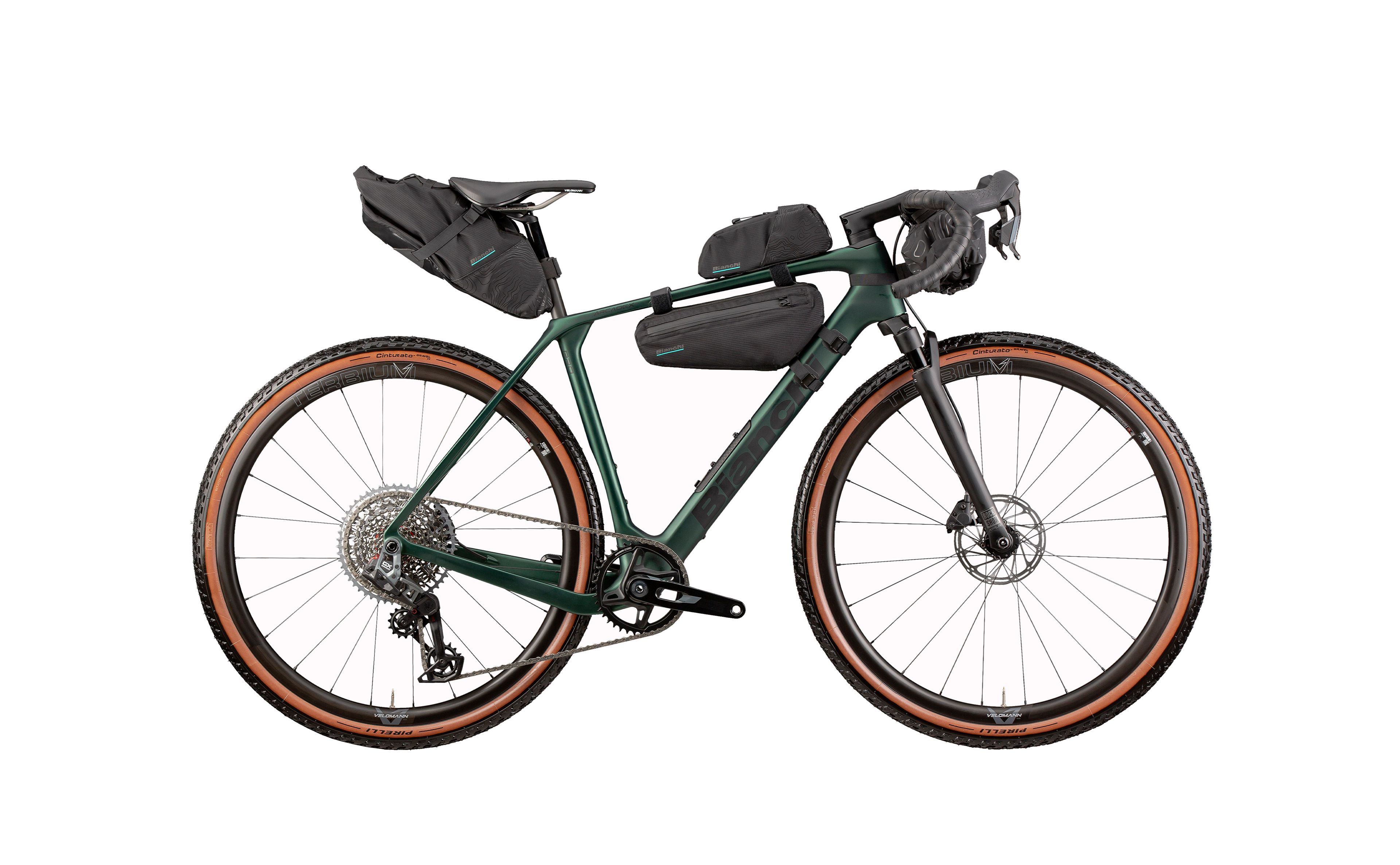

Arcadex Pro Rival XPLR AXS E1 12sp
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Stack | 610mm | 584mm | 563mm | 638mm | 544mm |
| Reach | 402mm | 391mm | 383mm | 410mm | 376mm |
| Headtube length | 155mm | 130mm | 110mm | 185mm | 90mm |
| Headtube angle | 71.5deg | 71deg | 70.5deg | 71.5deg | 70.5deg |
| BB height | — | — | — | — | — |
| BB drop | 75mm | 75mm | 75mm | 75mm | 75mm |
| Trail | — | — | — | — | — |
| Fork length | 425mm | 425mm | 425mm | 425mm | 425mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front center | 639mm | 625mm | 615mm | 656mm | 601mm |
| Chainstay length | 430mm | 430mm | 430mm | 432432mm | 430mm |
| Wheelbase | 1059mm | 1044mm | 1034mm | 1077mm | 1020mm |
| Top tube | 583mm | 564mm | 545mm | 605mm | 527mm |
| Standover height | — | — | — | — | — |
| Seat tube length | 515mm | 485mm | 448mm | 550mm | 410mm |
| Seat tube angle | 73.5deg | 73.5deg | 74deg | 73deg | 74.5deg |
Spec geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Crank length | 170mm | 170mm | 165mm | 172.5mm | 165mm |
| Stem length | 100mm | 90mm | 80mm | 110mm | 80mm |
| Handlebar width | 420mm | 420mm | 400mm | 440mm | 400mm |
| Handlebar reach | 70mm | 70mm | 70mm | 70mm | 70mm |
| Handlebar drop | 130mm | 130mm | 130mm | 130mm | 130mm |
| Saddle width | 149mm | 149mm | 149mm | 149mm | 149mm |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL
Suspension
Fork
RockShox Rudy, 30 mm travel, 1.5" tapered steerer, Thru axle 12x100 mm
Brakes
Front brake
Sram Rival, hydraulic disc brake
Rear brake
Sram Rival, hydraulic disc brake
Front rotor
Sram Centerline, Center Lock, 160 mm
Rear rotor
Sram Centerline, Center Lock, 160 mm
Drivetrain
Shift levers
Sram Rival AXS E1
Rear derailleur
Sram GX, T-Type, AXS
Cassette
Sram XS-1275, 12-speed, 10-52T (10-12-14-16-18-21-24-28-32-38-44-52T)
Chain
Sram GX, T-Type
Crankset
Sram Rival XPLR E1, 40T (Crank length: 165 mm XS-SM; 170 mm MD-LG; 172.5 mm XL)
Bottom bracket
Sram Press fit Road Wide 86.5x41
Cockpit
Stem
Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system (Size: 80 mm XS-SM; 90 mm MD; 100 mm LG; 110 mm XL)
Handlebars
Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg (Size: 400 mm XS-SM; 420 mm MD-LG; 440 mm XL)
Grips
Bianchi Hexagon tape, 2.5 mm thickness, black
Saddle
Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm
Seatpost
Velomann Carbon, offset 15 mm, diameter 27.2 mm (length: 300 mm XS; 350 mm SM-XL)
Wheels & Tires
Front wheel
Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
Rear wheel
Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
Front tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
Rear tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
