Bianchi

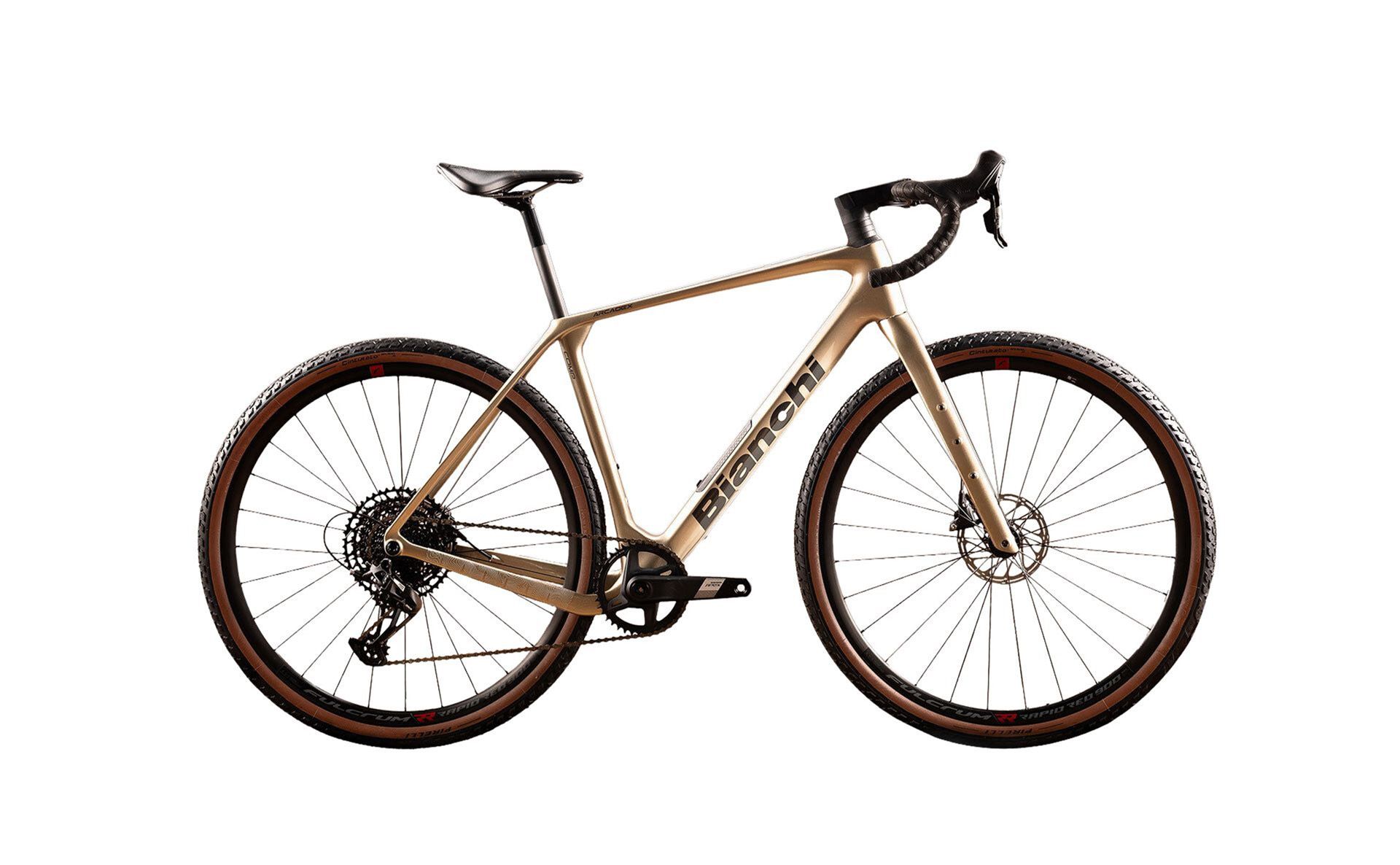

Arcadex Comp GRX 610 12sp
Gallery
Images
action
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Stack | 610mm | 584mm | 563mm | 638mm | 544mm |
| Reach | 402mm | 391mm | 383mm | 410mm | 376mm |
| Headtube length | 155mm | 130mm | 110mm | 185mm | 90mm |
| Headtube angle | 71.5deg | 71deg | 70.5deg | 71.5deg | 70.5deg |
| BB height | — | — | — | — | — |
| BB drop | 75mm | 75mm | 75mm | 75mm | 75mm |
| Trail | — | — | — | — | — |
| Fork length | 425mm | 425mm | 425mm | 425mm | 425mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front center | 639mm | 625mm | 615mm | 656mm | 601mm |
| Chainstay length | 430mm | 430mm | 430mm | 432432mm | 430mm |
| Wheelbase | 1059mm | 1044mm | 1034mm | 1077mm | 1020mm |
| Top tube | 583mm | 564mm | 545mm | 605mm | 527mm |
| Standover height | — | — | — | — | — |
| Seat tube length | 515mm | 485mm | 448mm | 550mm | 410mm |
| Seat tube angle | 73.5deg | 73.5deg | 74deg | 73deg | 74.5deg |
Spec geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Crank length | 172.5mm | 172.5mm | 170mm | 175mm | 170mm |
| Stem length | 100mm | 90mm | 80mm | 110mm | 80mm |
| Handlebar width | 420mm | 420mm | 400mm | 440mm | 400mm |
| Handlebar reach | 70mm | 70mm | 70mm | 70mm | 70mm |
| Handlebar drop | 130mm | 130mm | 130mm | 130mm | 130mm |
| Saddle width | 149mm | 149mm | 149mm | 149mm | 149mm |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL
Suspension
Fork
Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm
Brakes
Front brake
Shimano GRX BR-RX410 hydraulic disc brake
Rear brake
Shimano GRX BR-RX410 hydraulic disc brake
Front rotor
Shimano SM-RT70 Center Lock Ice Tech, 160 mm
Rear rotor
Shimano SM-RT70 Center Lock Ice Tech, 160 mm
Drivetrain
Shift levers
Shimano GRX ST-RX610 (listed with caliper BR-RX400)
Rear derailleur
Shimano GRX RD-RX822, 12sp
Cassette
Shimano SLX, CS-M7100, 12-speed, 10-51T (10-12-14-16-18-21-24-28-33-39-45-51T)
Chain
Shimano 105, CN-M7100
Crankset
Shimano GRX, FC-RX610, 40T (Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL))
Bottom bracket
Shimano SM-BB72-41B, PressFit (road)
Cockpit
Stem
Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system (Size: 80 mm (XS-SM); 90 mm (MD); 100 mm (LG); 110 mm (XL))
Handlebars
Velomann Gravel, Aluminium, 31.8 mm, reach 70 mm, drop 130 mm, flare 16° (Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL))
Grips
Bianchi Hexagon tape, 2.5 mm thickness, black
Saddle
Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm
Seatpost
Velomann Carbon, 15 mm offset, 27.2 mm diameter (Length: 300 mm (XS); 350 mm (SM-XL))
Wheels & Tires
Front wheel
Velomann V24G wheelset, Aluminium rim, 24 mm profile height, 700x24c, 24h, HG11 body
Rear wheel
Velomann V24G wheelset, Aluminium rim, 24 mm profile height, 700x24c, 24h, HG11 body
Front tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
Rear tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
