Bianchi

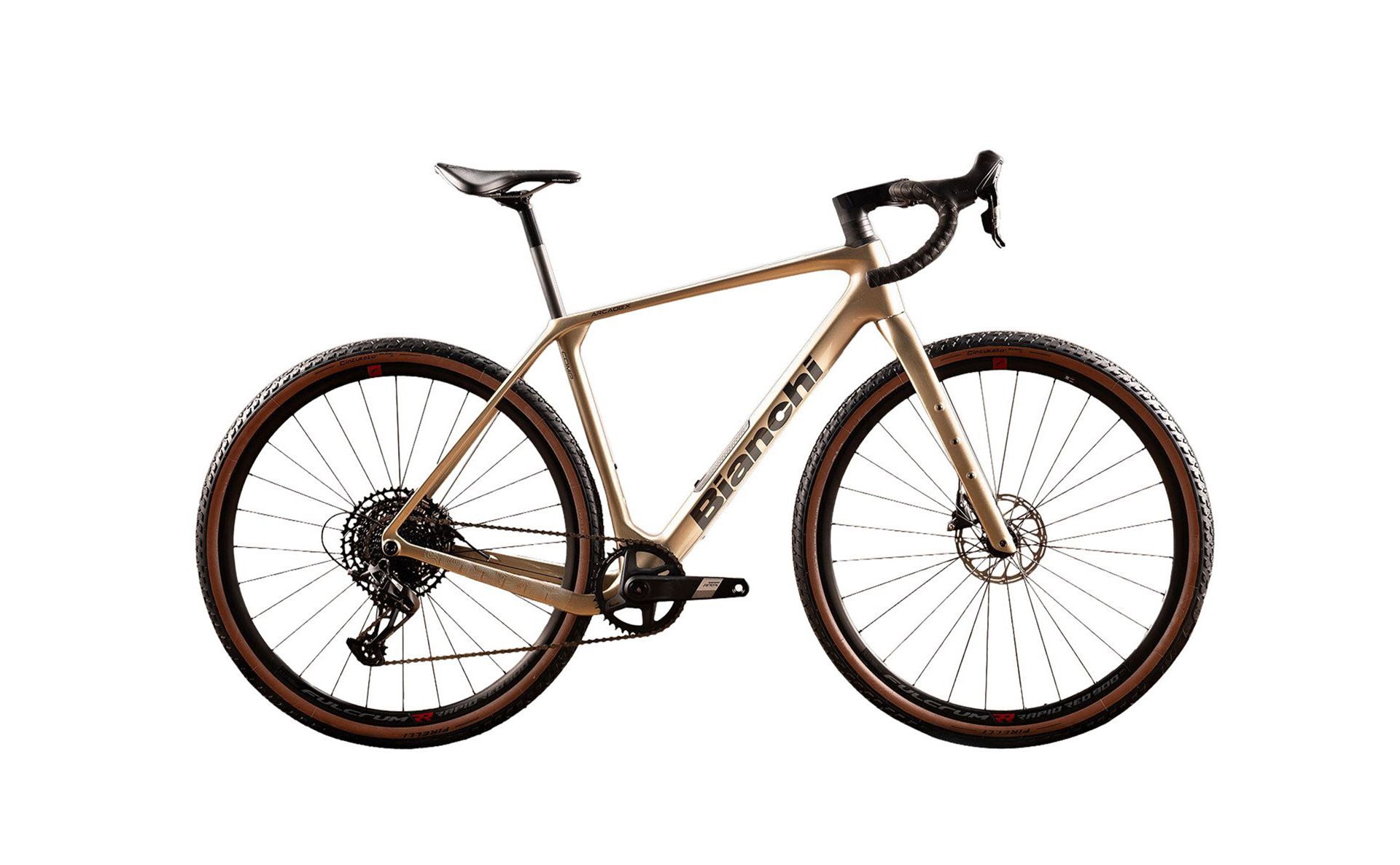

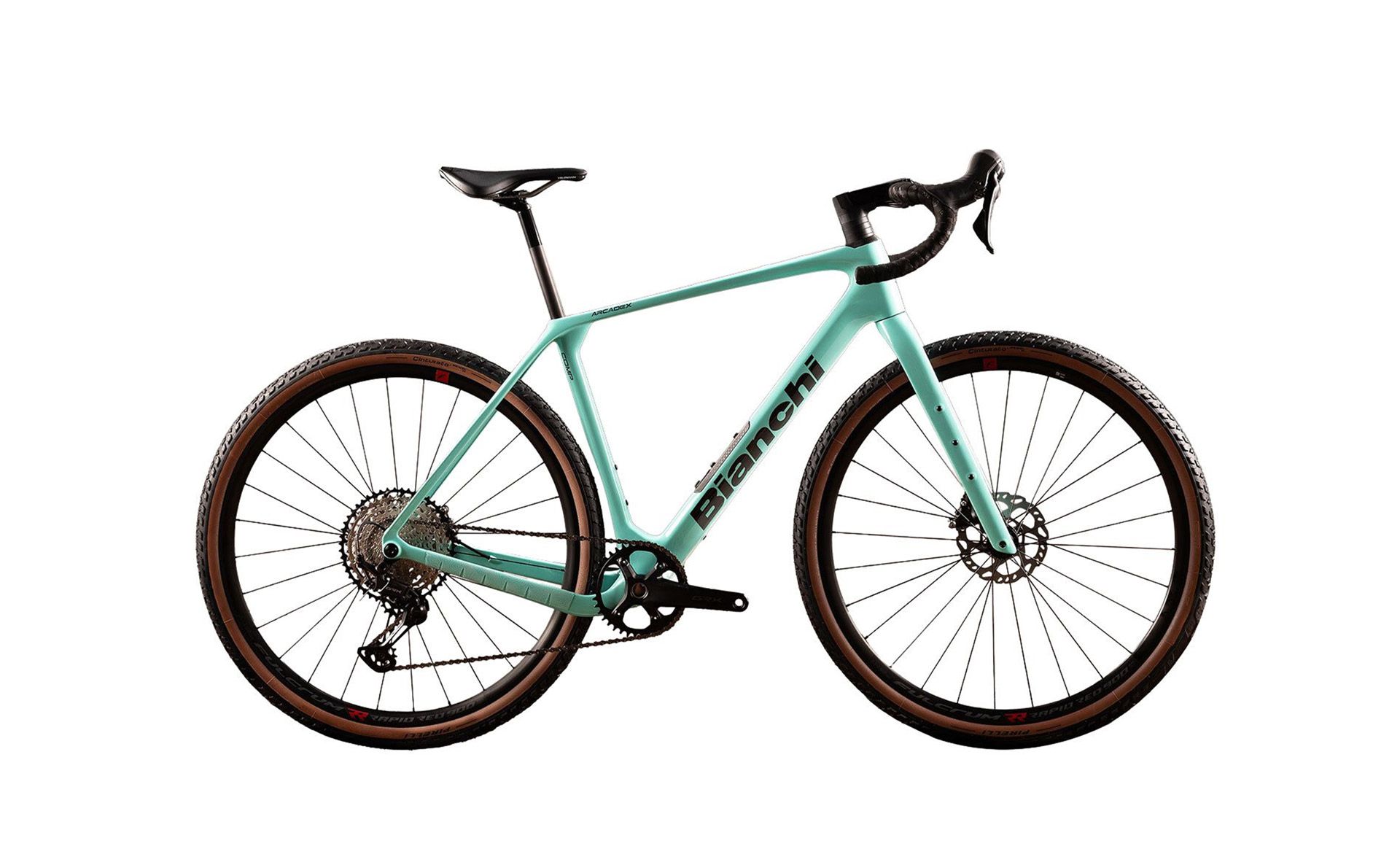

Arcadex Comp Apex Eagle D1 12sp
Gallery
Images
action
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Stack | 610mm | 584mm | 563mm | 638mm | 544mm |
| Reach | 402mm | 391mm | 383mm | 410mm | 376mm |
| Headtube length | 155mm | 130mm | 110mm | 185mm | 90mm |
| Headtube angle | 71.5deg | 71deg | 70.5deg | 71.5deg | 70.5deg |
| BB height | — | — | — | — | — |
| BB drop | 75mm | 75mm | 75mm | 75mm | 75mm |
| Trail | — | — | — | — | — |
| Fork length | 425mm | 425mm | 425mm | 425mm | 425mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front center | 639mm | 625mm | 615mm | 656mm | 601mm |
| Chainstay length | 430mm | 430mm | 430mm | 432432mm | 430mm |
| Wheelbase | 1059mm | 1044mm | 1034mm | 1077mm | 1020mm |
| Top tube | 583mm | 564mm | 545mm | 605mm | 527mm |
| Standover height | — | — | — | — | — |
| Seat tube length | 515mm | 485mm | 448mm | 550mm | 410mm |
| Seat tube angle | 73.5deg | 73.5deg | 74deg | 73deg | 74.5deg |
Spec geometry
| Geometry | LG | MD | SM | XL | XS |
|---|---|---|---|---|---|
| Crank length | 172.5mm | 172.5mm | 170mm | 175mm | 170mm |
| Stem length | 100mm | 90mm | 80mm | 110mm | 80mm |
| Handlebar width | 420mm | 420mm | 400mm | 440mm | 400mm |
| Handlebar reach | 70mm | 70mm | 70mm | 70mm | 70mm |
| Handlebar drop | 130mm | 130mm | 130mm | 130mm | 130mm |
| Saddle width | 149mm | 149mm | 149mm | 149mm | 149mm |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL
Suspension
Fork
Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm
Brakes
Front brake
Sram Apex, Hydraulic disc brake
Rear brake
Sram Apex, Hydraulic disc brake
Front rotor
Sram Centerline, Center Lock, 160 mm
Rear rotor
Sram Centerline, Center Lock, 160 mm
Drivetrain
Shift levers
Sram Apex AXS, D1
Rear derailleur
Sram Apex Eagle D1, 12sp
Cassette
Sram PG-1210 Eagle, for HG body, 11-13-15-17-19-22-25-28-32-36-42-50T
Chain
Sram SX Eagle, 12 sp
Crankset
Sram Apex D1 Wide, 40T Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL)
Bottom bracket
Sram Press fit Road Wide 86.5x41
Cockpit
Stem
Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80 mm (XS-SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)
Handlebars
Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)
Grips
Bianchi Hexagon tape, 2.5 mm thickness, black
Saddle
Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm
Seatpost
Velomann Carbon, offset 15 mm, diameter 27.2 mm length: 300 mm (XS); 350 mm (SM-XL)
Wheels & Tires
Front wheel
Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
Rear wheel
Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
Front tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
Rear tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
