Argon 18
Sum SRAM Rival AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 56.5mm | 54mm | 51.6mm | 59.2mm | 49.3mm | 47.1mm |
| Reach | 40.5mm | 39.7mm | 38.9mm | 41.4mm | 38.2mm | 37.5mm |
| Headtube length | 15.2mm | 12.6mm | 10.1mm | 18mm | 8.5mm | 6.9mm |
| Headtube angle | 72.7deg | 72.7deg | 72.7deg | 73deg | 72.1deg | 71.2deg |
| BB height | — | — | — | — | — | — |
| BB drop | 7.7mm | 7.7mm | 7.7mm | 7.7mm | 7.3mm | 6.9mm |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — |
| Front center | — | — | — | — | — | — |
| Chainstay length | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm |
| Wheelbase | 100.6mm | 99mm | 97.5mm | 102mm | 97.2mm | 96.7mm |
| Top tube | 57.8mm | 55.7mm | 53.8mm | 60mm | 52mm | 50.3mm |
| Standover height | 80.4mm | 76.6mm | 72.7mm | 84.1mm | 70mm | 67.6mm |
| Seat tube length | 55mm | 50.5mm | 46mm | 59.5mm | 42.5mm | 39.5mm |
| Seat tube angle | 73deg | 73.5deg | 74deg | 72.5deg | 74.5deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | 172.5mm | 172.5mm | 170mm | 175mm | 170mm | 165mm |
| Stem length | 110mm | 100mm | 90mm | 120mm | 80mm | 70mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm | 400mm | 380mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 142mm | 142mm | 142mm | 142mm | 142mm | 142mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Argon 18 SUM frame
Suspension
Fork
Argon 18 SUM specific fork
Brakes
Front brake
SRAM Rival AXS hydraulic disc (shifter/caliper set)
Rear brake
SRAM Rival AXS hydraulic disc (shifter/caliper set)
Front rotor
SRAM CenterLock Paceline 160mm
Rear rotor
SRAM CenterLock Paceline 140mm
Drivetrain
Shift levers
SRAM Rival AXS
Rear derailleur
SRAM Rival AXS
Front derailleur
SRAM Rival AXS
Cassette
SRAM XG-1250 12-speed 10-30T (XDR)
Chain
SRAM Rival 12-speed
Crankset
SRAM Rival AXS DUB 48/35
Bottom bracket
SRAM DUB PF86.5

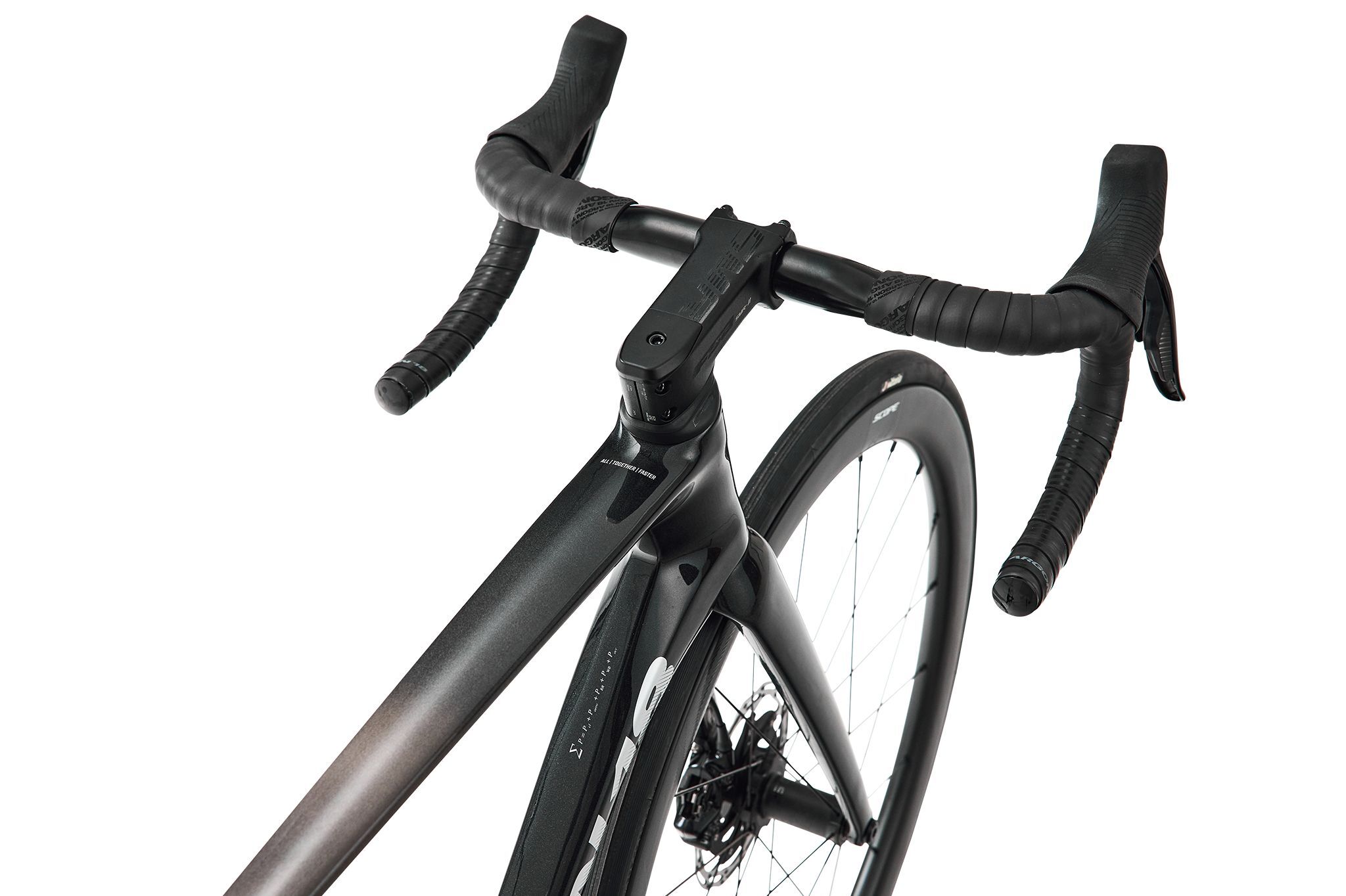

Cockpit
Stem
FSA SMR-II
Handlebars
FSA Energy SCR Compact
Grips
Ciclovation LEATHER TOUCH Tornado Gloss bar tape
Saddle
Repente Quasar
Seatpost
Argon 18 SUM specific seatpost
Wheels & Tires
Front wheel
Scope S4.A
Rear wheel
Scope S4.A
Front tire
Vittoria Corsa N.EXT TLR 28mm
Rear tire
Vittoria Corsa N.EXT TLR 28mm
