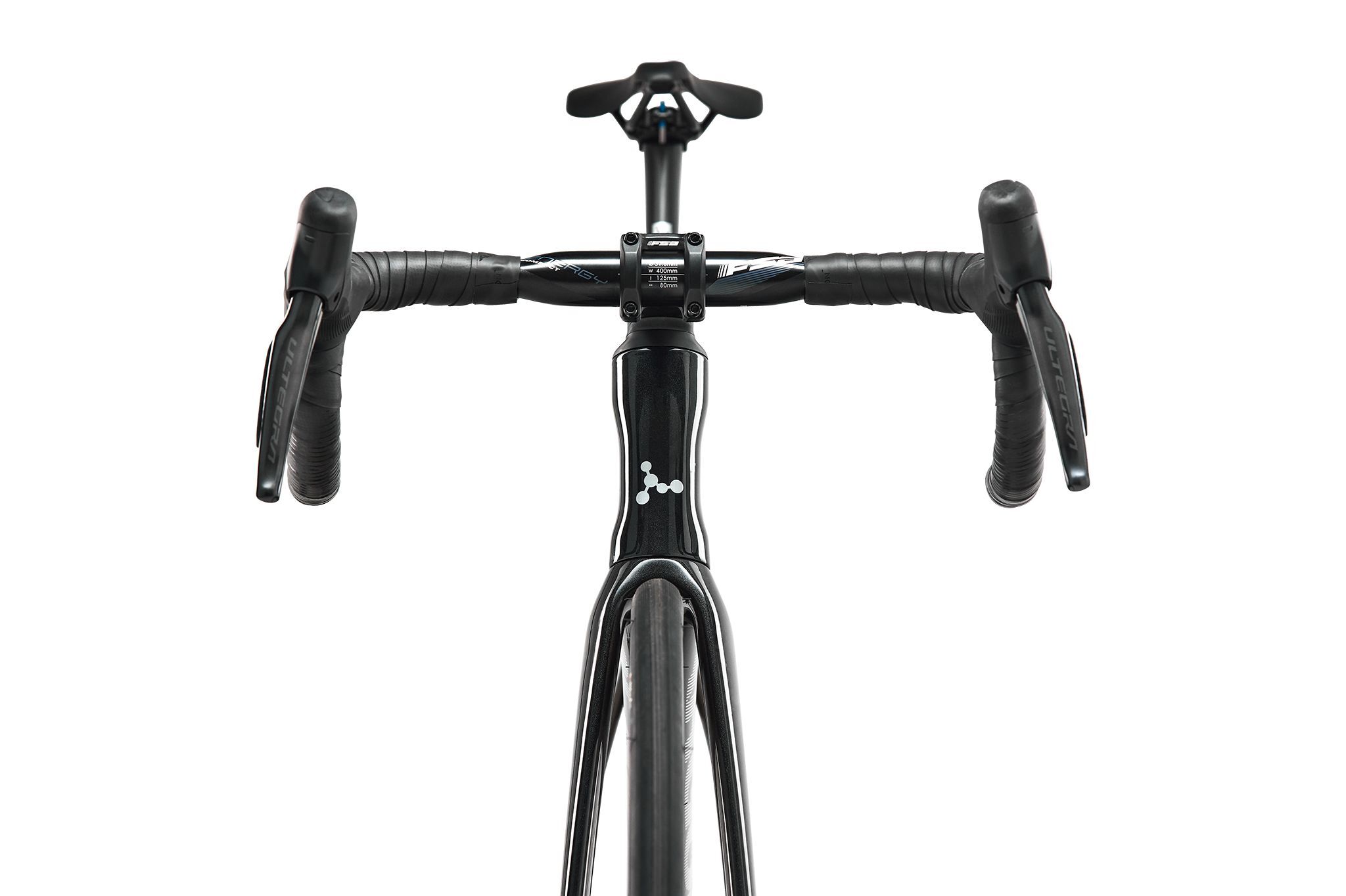

Argon 18
Sum Shimano Ultegra Di2
Price TBD
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 56.5mm | 54mm | 51.6mm | 59.2mm | 49.3mm | 47.1mm |
| Reach | 40.5mm | 39.7mm | 38.9mm | 41.4mm | 38.2mm | 37.5mm |
| Headtube length | 15.2mm | 12.6mm | 10.1mm | 18mm | 8.5mm | 6.9mm |
| Headtube angle | 72.7deg | 72.7deg | 72.7deg | 73deg | 72.1deg | 71.2deg |
| BB height | — | — | — | — | — | — |
| BB drop | 7.7mm | 7.7mm | 7.7mm | 7.7mm | 7.3mm | 6.9mm |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — |
| Front center | — | — | — | — | — | — |
| Chainstay length | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm |
| Wheelbase | 100.6mm | 99mm | 97.5mm | 102mm | 97.2mm | 96.7mm |
| Top tube | 57.8mm | 55.7mm | 53.8mm | 60mm | 52mm | 50.3mm |
| Standover height | 80.4mm | 76.6mm | 72.7mm | 84.1mm | 70mm | 67.6mm |
| Seat tube length | 55mm | 50.5mm | 46mm | 59.5mm | 42.5mm | 39.5mm |
| Seat tube angle | 73deg | 73.5deg | 74deg | 72.5deg | 74.5deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | 172.5mm | 172.5mm | 170mm | 175mm | 170mm | 165mm |
| Stem length | 110mm | 100mm | 90mm | 120mm | 80mm | 70mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm | 380mm | 380mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Argon 18 SUM
Suspension
Fork
Argon 18 SUM specific
Brakes
Front brake
Shimano Ultegra Di2 R8170
Rear brake
Shimano Ultegra Di2 R8170
Front rotor
160mm
Rear rotor
140mm
Drivetrain
Shift levers
Shimano Ultegra Di2 R8170
Rear derailleur
Shimano Ultegra Di2 R8150
Front derailleur
Shimano Ultegra Di2 R8150
Cassette
Shimano Ultegra CS-R8100 11-30
Chain
Shimano Ultegra CN-M8100
Crankset
Shimano Ultegra R8100 52/36
Bottom bracket
BB Ultegra SM-BB72
Cockpit
Stem
FSA SMR-II
Handlebars
FSA Energy SCR Compact
Grips
Ciclovation LEATHER TOUCH Tornado Gloss (bar tape)
Saddle
Repente Quasar
Seatpost
SUM specific
Wheels & Tires
Front wheel
Scope R4
Rear wheel
Scope R4
Front tire
Vittoria Corsa N.EXT TLR 28mm
Rear tire
Vittoria Corsa N.EXT TLR 28mm
