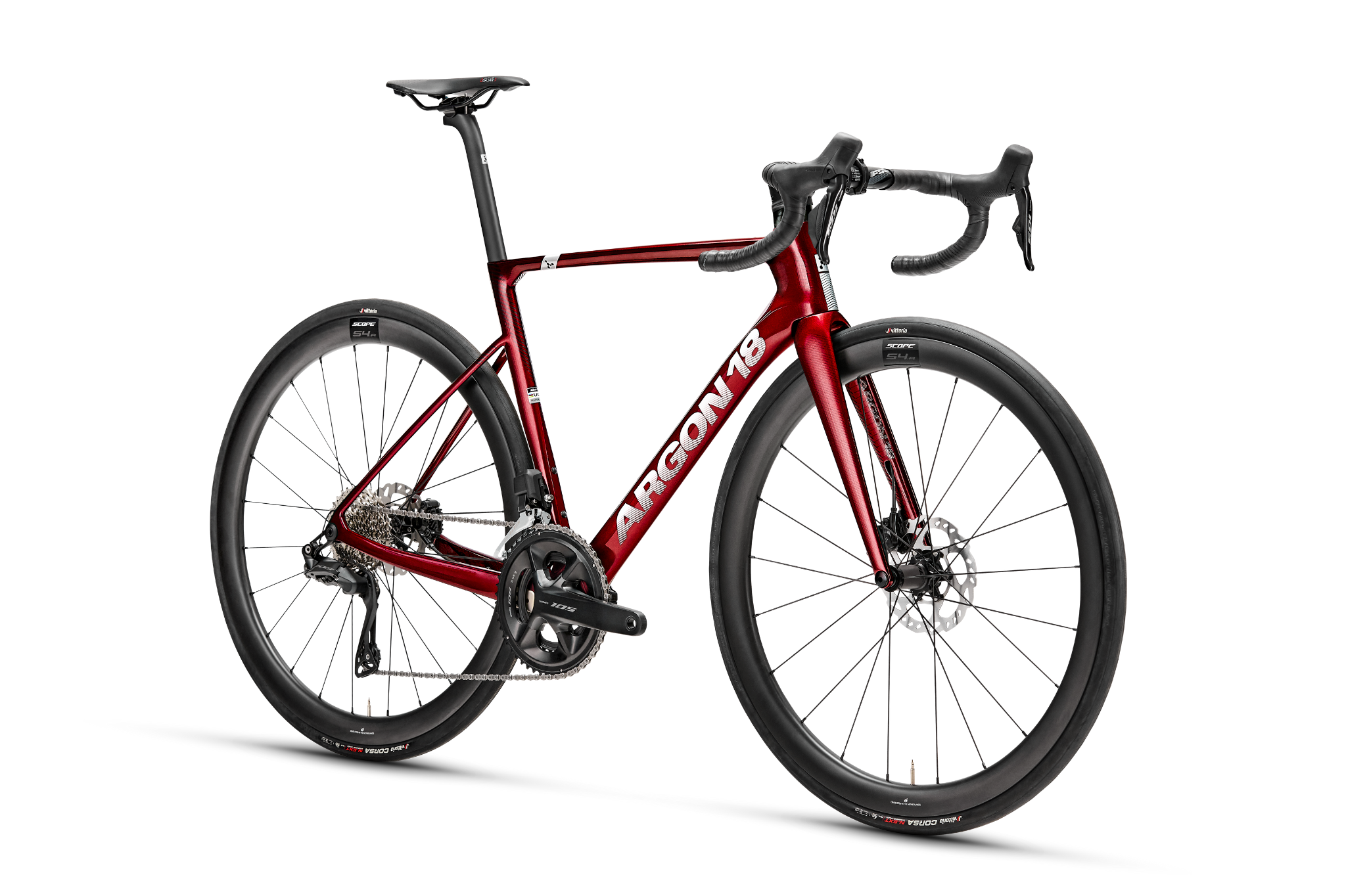

Argon 18
Sum Shimano 105 Di2
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 56.5mm | 54mm | 51.6mm | 59.2mm | 49.3mm | 47.1mm |
| Reach | 40.5mm | 39.7mm | 38.9mm | 41.4mm | 38.2mm | 37.5mm |
| Headtube length | 15.2mm | 12.6mm | 10.1mm | 18mm | 8.5mm | 6.9mm |
| Headtube angle | 72.7deg | 72.7deg | 72.7deg | 73deg | 72.1deg | 71.2deg |
| BB height | — | — | — | — | — | — |
| BB drop | 7.7mm | 7.7mm | 7.7mm | 7.7mm | 7.3mm | 6.9mm |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — |
| Front center | — | — | — | — | — | — |
| Chainstay length | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm |
| Wheelbase | 100.6mm | 99mm | 97.5mm | 102mm | 97.2mm | 96.7mm |
| Top tube | 57.8mm | 55.7mm | 53.8mm | 60mm | 52mm | 50.3mm |
| Standover height | 80.4mm | 76.6mm | 72.7mm | 84.1mm | 70mm | 67.6mm |
| Seat tube length | 55mm | 50.5mm | 46mm | 59.5mm | 42.5mm | 39.5mm |
| Seat tube angle | 73deg | 73.5deg | 74deg | 72.5deg | 74.5deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | 172.5mm | 172.5mm | 170mm | 175mm | 170mm | 165mm |
| Stem length | 110mm | 100mm | 90mm | 120mm | 80mm | 70mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm | 380mm | 380mm |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Argon 18 SUM
Suspension

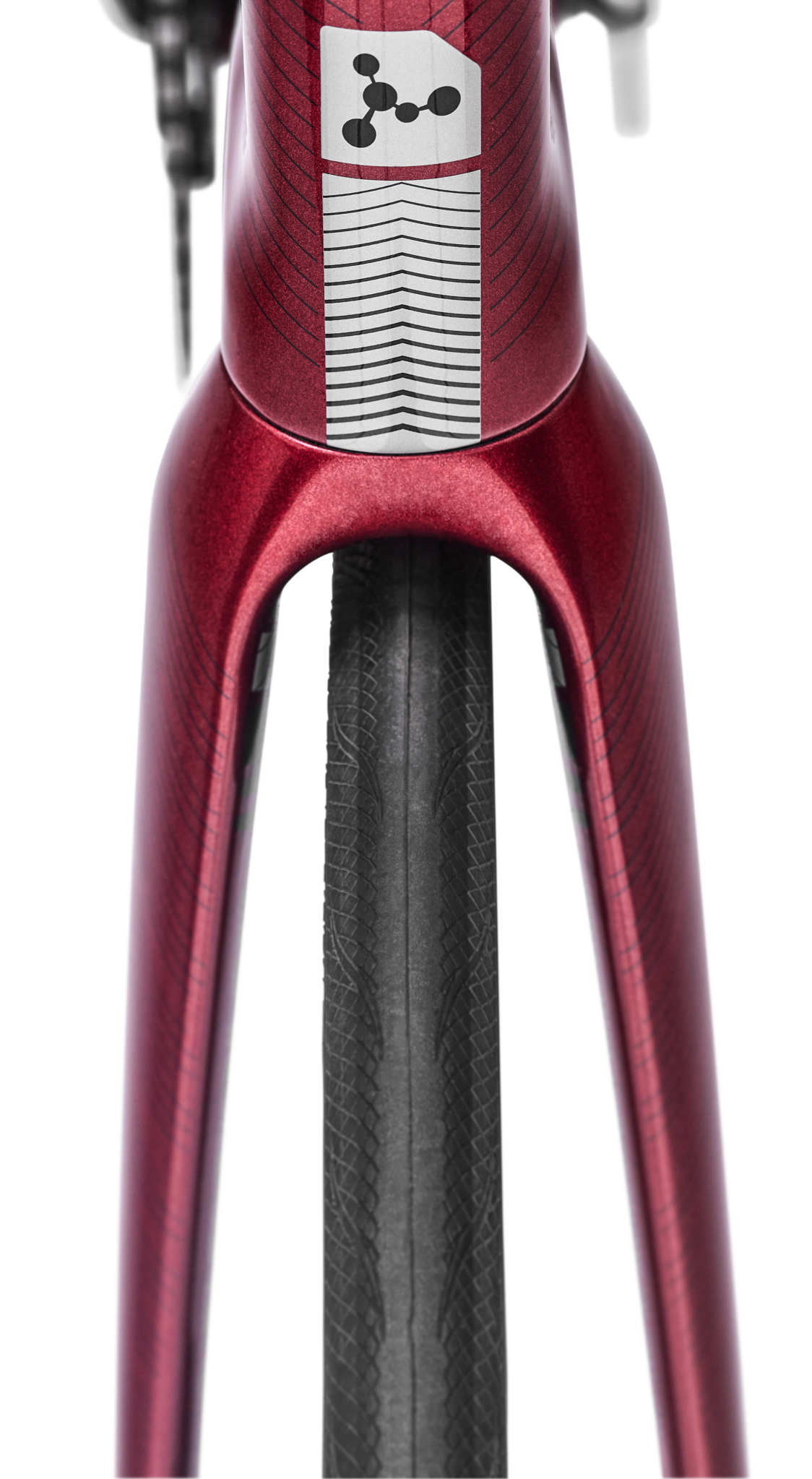

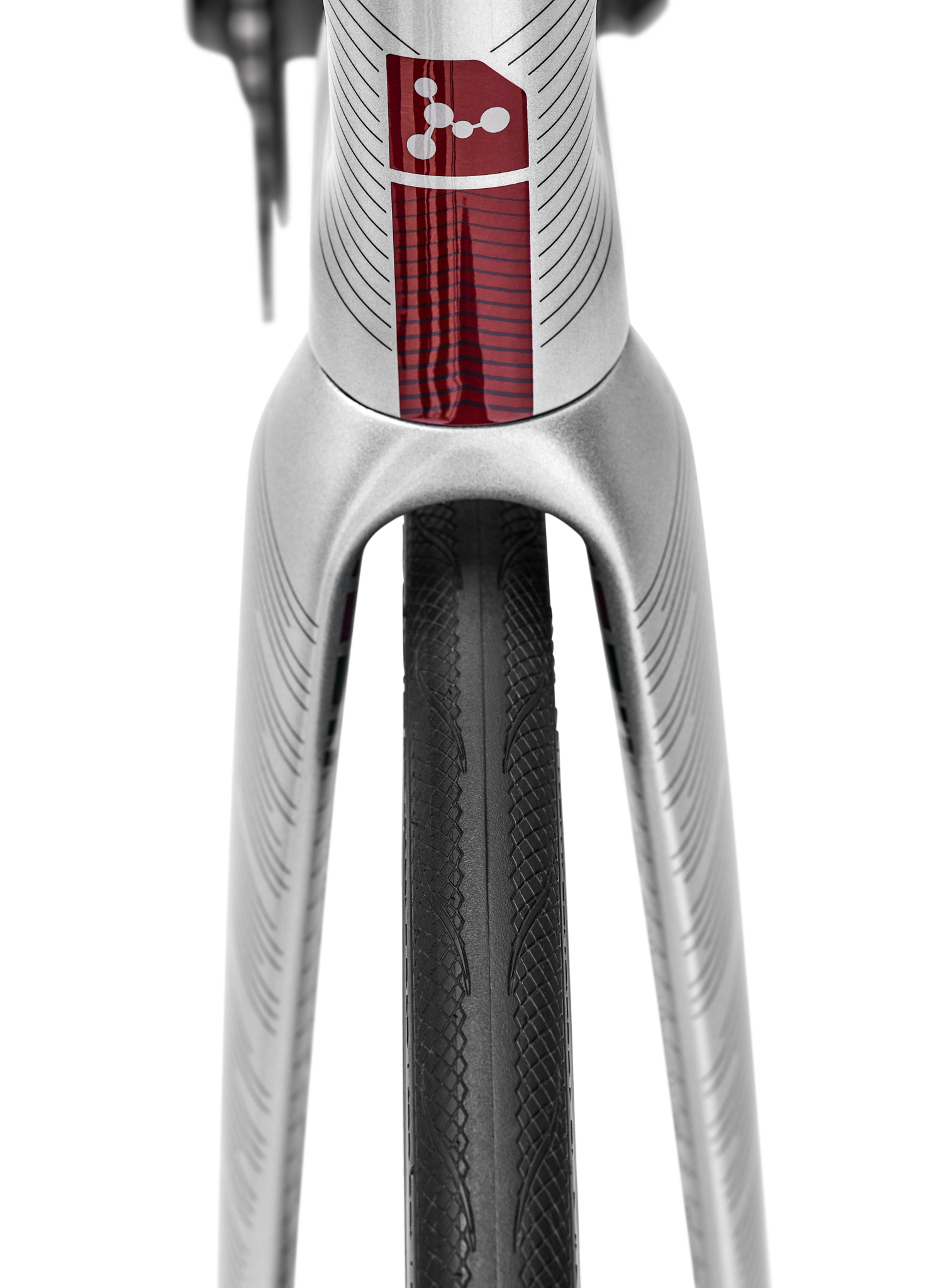

Fork
Argon 18 SUM specific
Brakes
Front brake
Shimano 105 Di2 R7170 hydraulic disc
Rear brake
Shimano 105 Di2 R7170 hydraulic disc
Front rotor
Shimano SM-RT70 160mm
Rear rotor
Shimano SM-RT70 140mm
Drivetrain
Shift levers
Shimano 105 Di2 R7170 (ST-R7170 shift/brake levers)
Rear derailleur
Shimano 105 Di2 RD-R7150
Front derailleur
Shimano 105 Di2 FD-R7150
Cassette
Shimano 105 CS-R7100 11-34
Chain
Shimano CN-M7100 12-speed (Quick-Link)
Crankset
Shimano 105 FC-R7100 52/36
Bottom bracket
Shimano SM-BB72 (Ultegra)

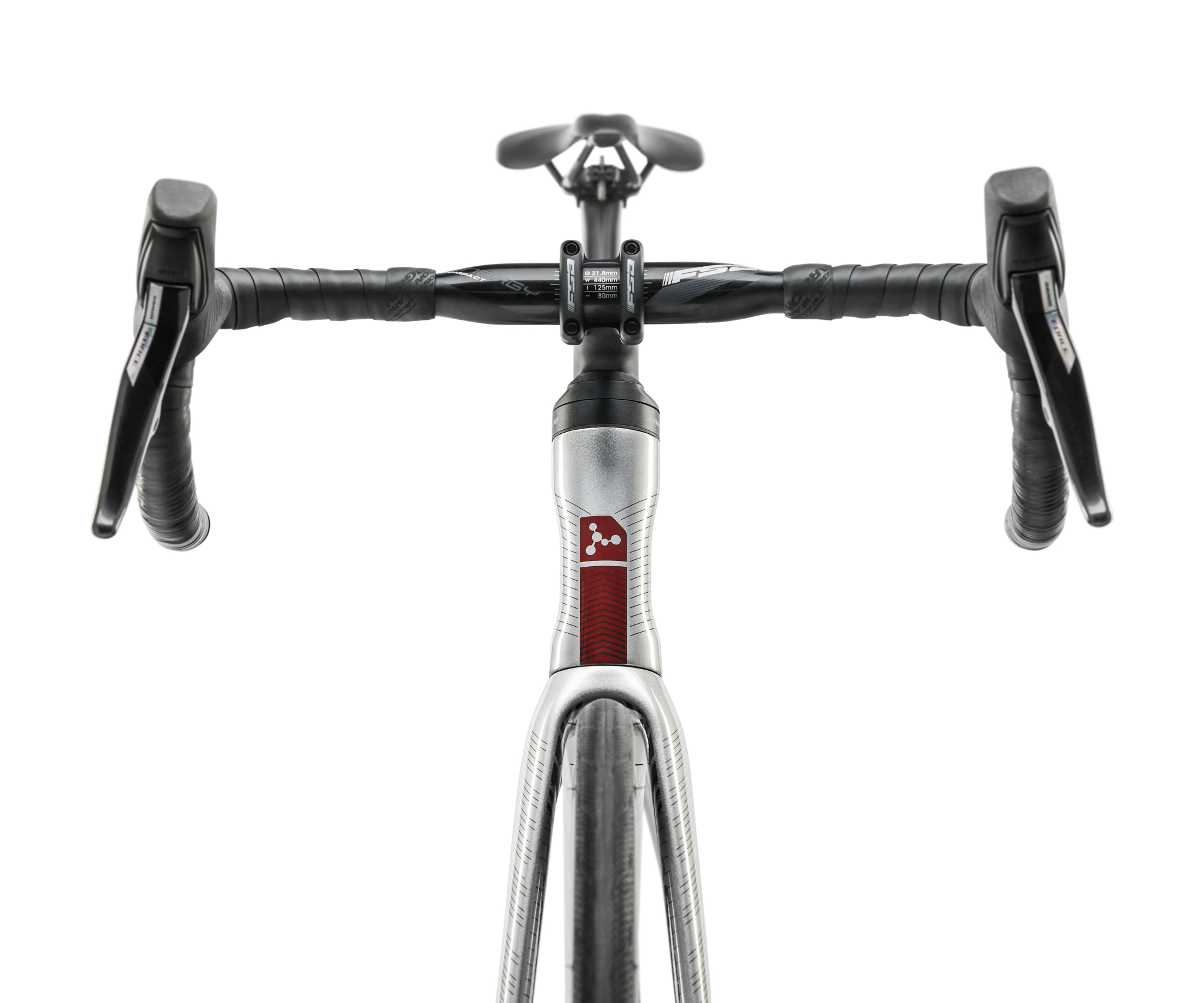

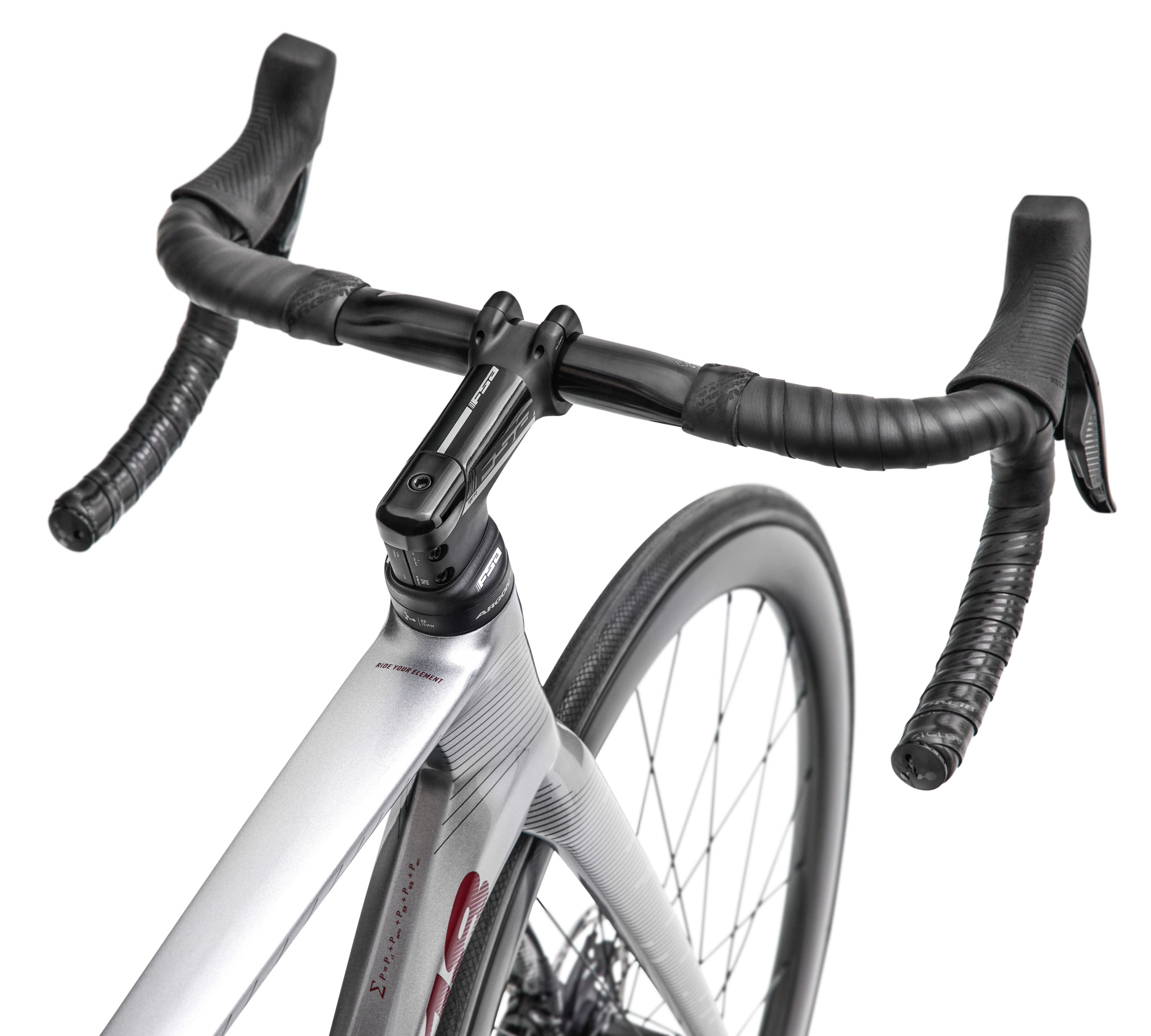

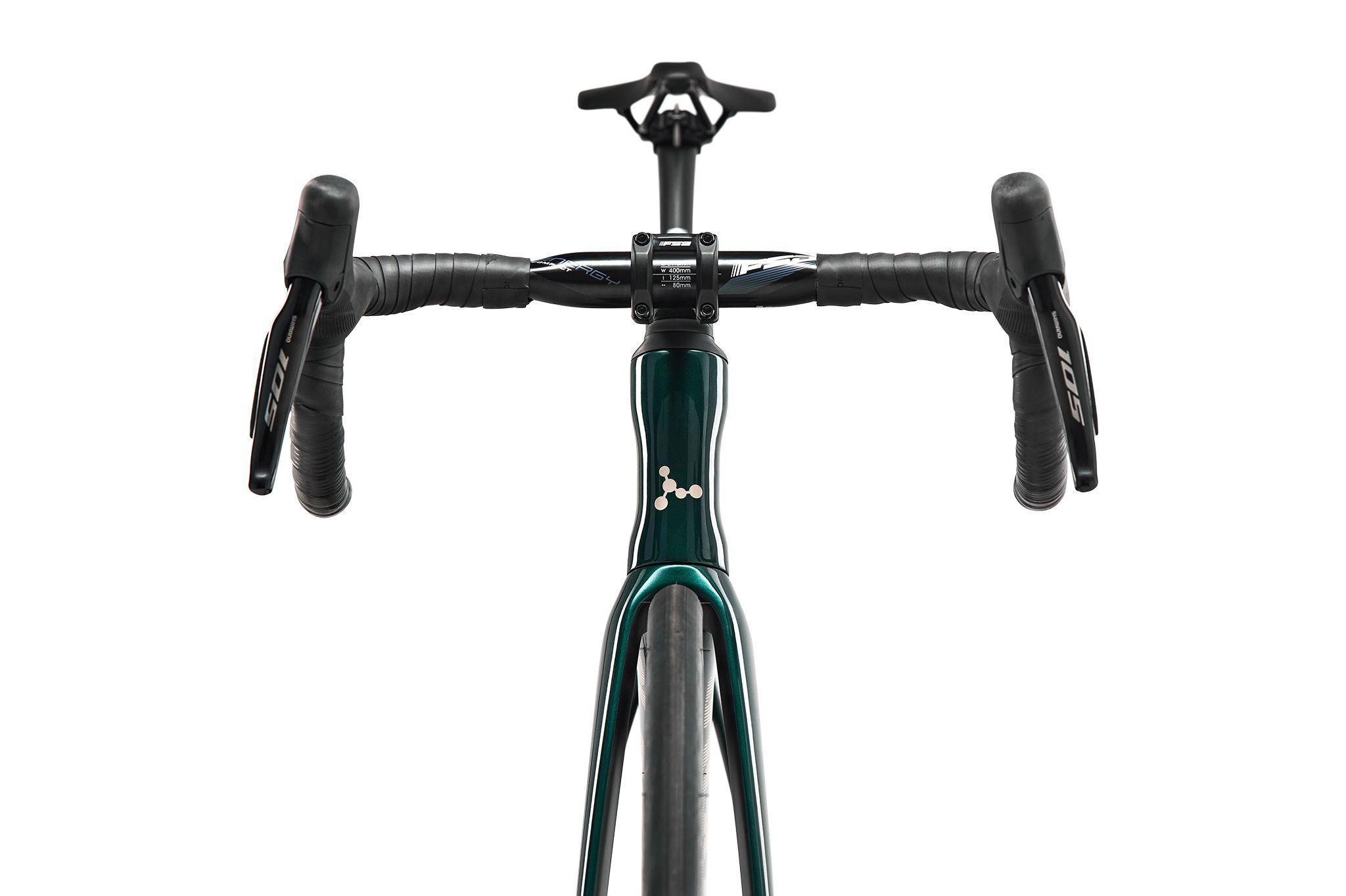

Cockpit
Stem
FSA SMR-II
Handlebars
FSA Energy SCR Compact
Grips
Ciclovation LEATHER TOUCH Tornado Gloss bar tape
Saddle
Repente Quasar
Seatpost
Argon 18 SUM specific seatpost
Wheels & Tires
Front wheel
Scope S4.A
Rear wheel
Scope S4.A
Front tire
Vittoria Corsa N.EXT TLR 28mm
Rear tire
Vittoria Corsa N.EXT TLR 28mm
