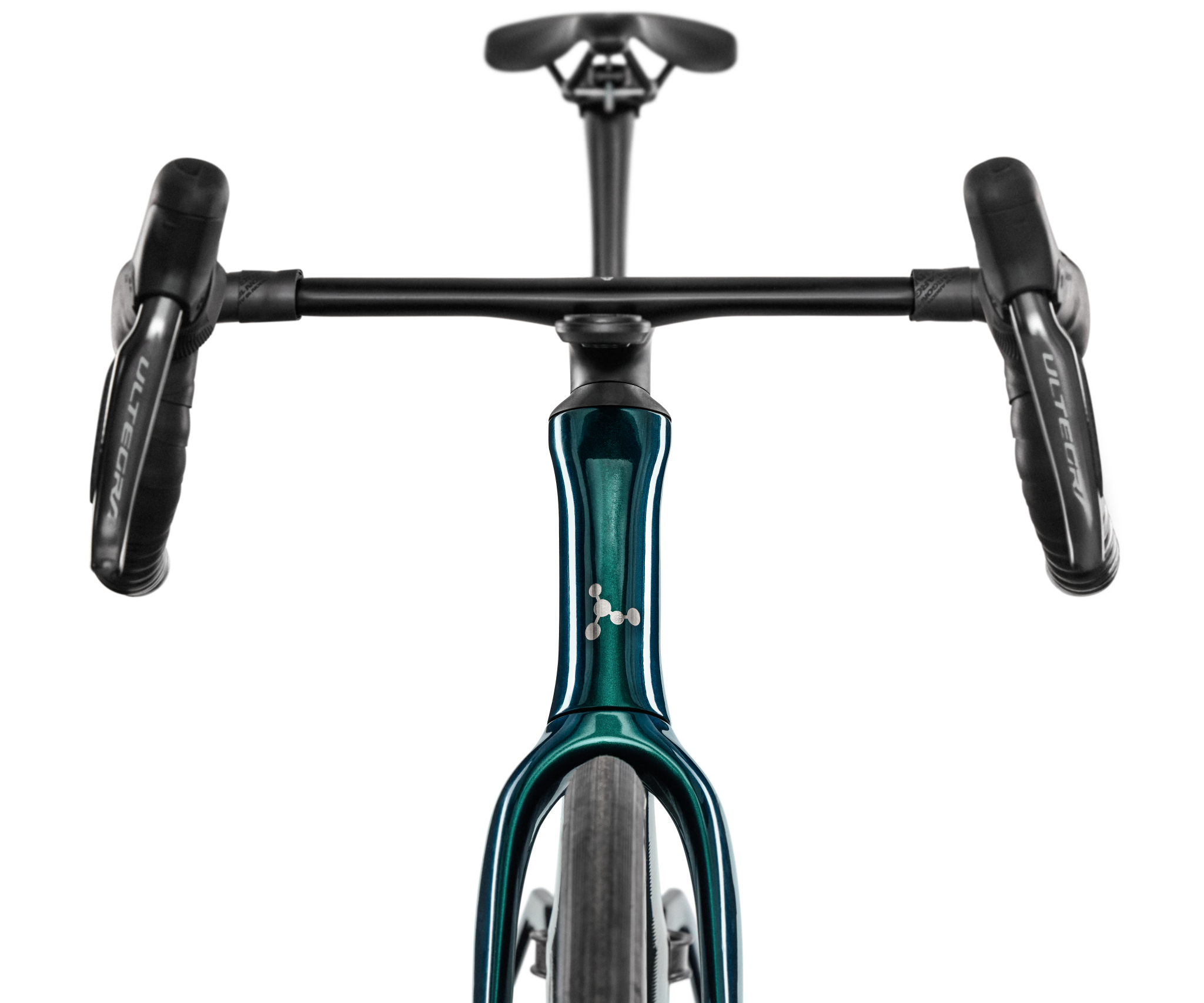

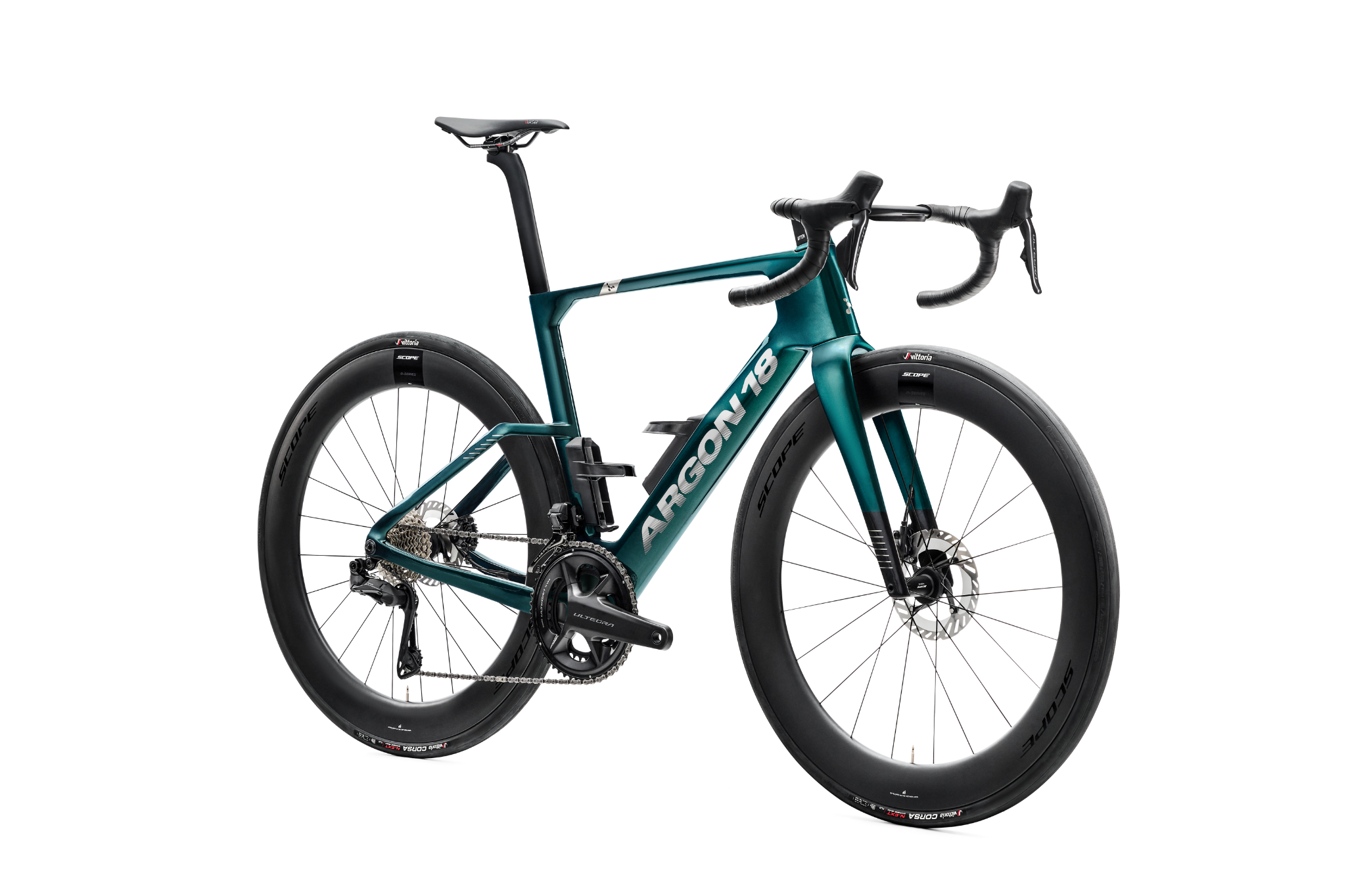

Argon 18
Nitrogen Shimano Ultegra Di2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 580mm | 555mm | 531mm | 607mm | 508mm | 486mm |
| Reach | 400mm | 392mm | 384mm | 409mm | 377mm | 370mm |
| Headtube length | 165mm | 138mm | 113mm | 192mm | 97mm | 81mm |
| Headtube angle | 72.7deg | 72.7deg | 72.7deg | 73deg | 72.1deg | 71.2deg |
| BB height | — | — | — | — | — | — |
| BB drop | 79mm | 79mm | 79mm | 79mm | 75mm | 71mm |
| Trail | — | — | — | — | — | — |
| Fork length | 376mm | 376mm | 376mm | 376mm | 376mm | 376mm |
| Fork offset | 45mm | 45mm | 45mm | 45mm | 49mm | 49mm |
| Front center | — | — | — | — | — | — |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 1006mm | 990mm | 975mm | 1020mm | 972mm | 967mm |
| Top tube | 578mm | 557mm | 537mm | 601mm | 519mm | 502mm |
| Standover height | 810mm | 772mm | 734mm | 848mm | 706mm | 682mm |
| Seat tube length | 550mm | 505mm | 460mm | 595mm | 425mm | 395mm |
| Seat tube angle | 73deg | 73.5deg | 74deg | 72.5deg | 74.5deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | 172.5mm | 170mm | 170mm | 172.5mm | 165mm | 165mm |
| Stem length | 110mm | 100mm | 90mm | 120mm | 90mm | 80mm |
| Handlebar width | 380mm | 380mm | 360mm | 380mm | 360mm | 360mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Argon 18 Nitrogen
Suspension
Fork
Argon 18 Nitrogen
Brakes
Front brake
Shimano Ultegra Di2 hydraulic disc (R8170)
Rear brake
Shimano Ultegra Di2 hydraulic disc (R8170)
Front rotor
Shimano Ultegra RT-CL800 / 160mm
Rear rotor
Shimano Ultegra RT-CL800 / 140mm
Drivetrain
Shift levers
Shimano Ultegra Di2 R8170
Rear derailleur
Shimano Ultegra Di2 R8150
Front derailleur
Shimano Ultegra Di2 R8150
Cassette
Shimano Ultegra CS-R8100 11/34
Chain
Shimano Ultegra CN-M8100
Crankset
Shimano Ultegra R8100 52/36
Bottom bracket
TOKEN T47 BB
Cockpit
Stem
/null
Handlebars
ATTEN CHB-01 Aero Handlebar
Grips
Ciclovation LEATHER TOUCH Tornado Gloss (bar tape)
Saddle
Repente Quasar 2.0
Seatpost
Argon 18 Nitrogen
Wheels & Tires
Front wheel
Scope R6.A
Rear wheel
Scope R6.A
Front tire
Vittoria Corsa N.EXT TLR 30c
Rear tire
Vittoria Corsa N.EXT TLR 30c
