Argon 18
Nitrogen Shimano 105 Di2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 580mm | 555mm | 531mm | 607mm | 508mm | 486mm |
| Reach | 400mm | 392mm | 384mm | 409mm | 377mm | 370mm |
| Headtube length | 165mm | 138mm | 113mm | 192mm | 97mm | 81mm |
| Headtube angle | 72.7deg | 72.7deg | 72.7deg | 73deg | 72.1deg | 71.2deg |
| BB height | — | — | — | — | — | — |
| BB drop | 79mm | 79mm | 79mm | 79mm | 75mm | 71mm |
| Trail | — | — | — | — | — | — |
| Fork length | 376mm | 376mm | 376mm | 376mm | 376mm | 376mm |
| Fork offset | 45mm | 45mm | 45mm | 45mm | 49mm | 49mm |
| Front center | — | — | — | — | — | — |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 1006mm | 990mm | 975mm | 1020mm | 972mm | 967mm |
| Top tube | 578mm | 557mm | 537mm | 601mm | 519mm | 502mm |
| Standover height | 810mm | 772mm | 734mm | 848mm | 706mm | 682mm |
| Seat tube length | 550mm | 505mm | 460mm | 595mm | 425mm | 395mm |
| Seat tube angle | 73deg | 73.5deg | 74deg | 72.5deg | 74.5deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | 172.5mm | 170mm | 170mm | 172.5mm | 165mm | 165mm |
| Stem length | 110mm | 100mm | 90mm | 120mm | 90mm | 80mm |
| Handlebar width | 380mm | 380mm | 360mm | 380mm | 360mm | 360mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Argon 18 Nitrogen
Suspension
Fork
Argon 18 Nitrogen
Brakes
Front brake
Shimano 105 hydraulic disc brakes (Di2 R7170 series)
Rear brake
Shimano 105 hydraulic disc brakes (Di2 R7170 series)
Front rotor
Shimano 105 RT-CL700, 160mm
Rear rotor
Shimano 105 RT-CL700, 140mm
Drivetrain
Shift levers
Shimano 105 Di2 R7170
Rear derailleur
Shimano 105 Di2 R7150
Front derailleur
Shimano 105 Di2 R7150
Cassette
Shimano 105 CS-R7100 12-speed, 11-34T
Chain
Shimano 105 CN-M7100
Crankset
Shimano 105 FC-R7100 52/36 (crank length by size: XXS 165mm, XS 165mm, S 170mm, M 170mm, L 172.5mm, XL 172.5mm)
Bottom bracket
TOKEN T47 BB

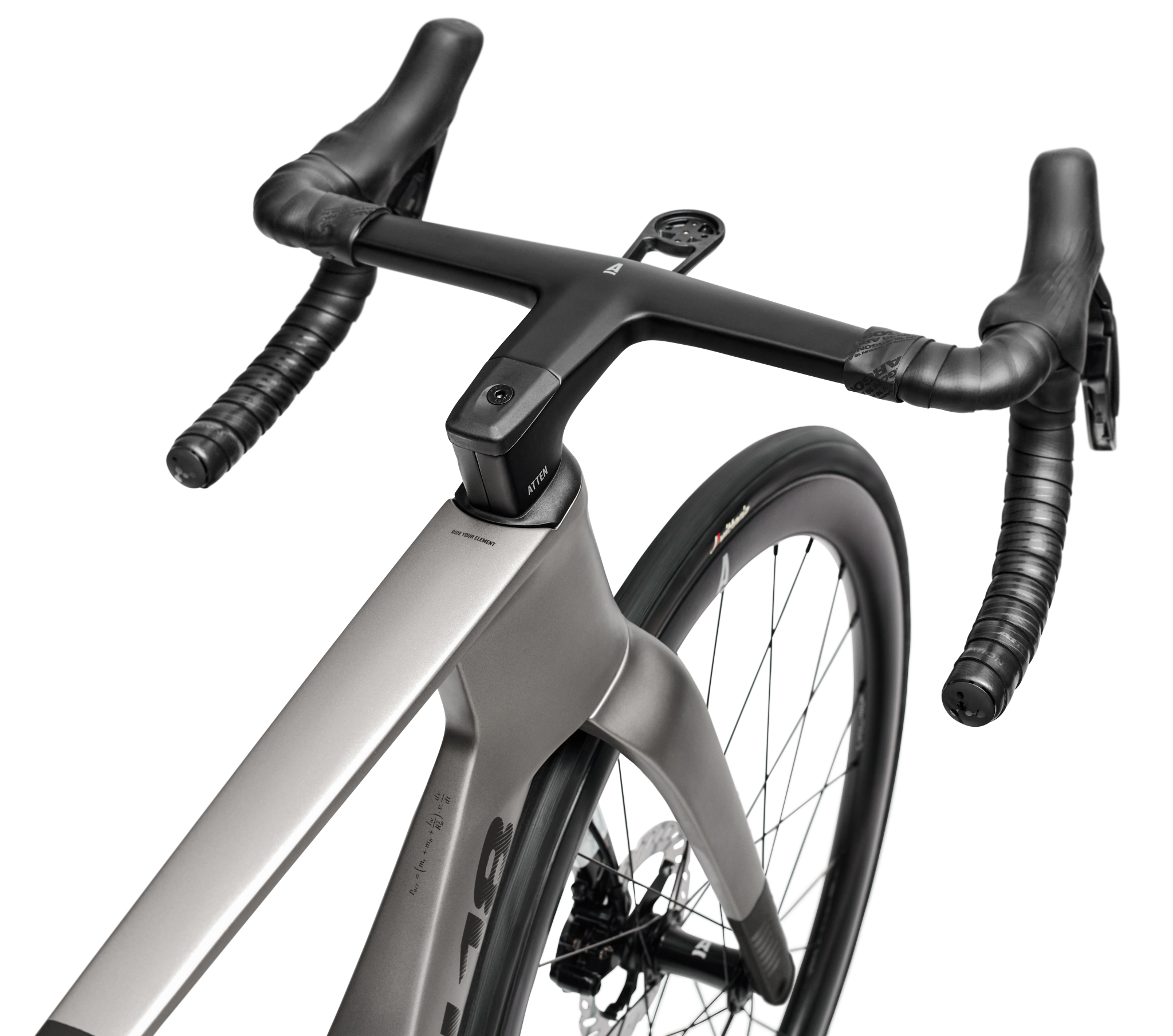

Cockpit
Stem
Stem length by size: XXS 80mm, XS 90mm, S 90mm, M 100mm, L 110mm, XL 120mm
Handlebars
ATTEN CHB-01 Aero Handlebar (width by size: XXS 360mm, XS 360mm, S 360mm, M 380mm, L 380mm, XL 380mm)
Grips
Ciclovation LEATHER TOUCH Tornado Gloss (bar tape)
Saddle
Repente Quasar S
Seatpost
Argon 18 Nitrogen
Wheels & Tires
Front wheel
ATTEN L42 wheelset
Rear wheel
ATTEN L42 wheelset
Front tire
Vittoria Corsa N.EXT TLR 30c
Rear tire
Vittoria Corsa N.EXT TLR 30c
