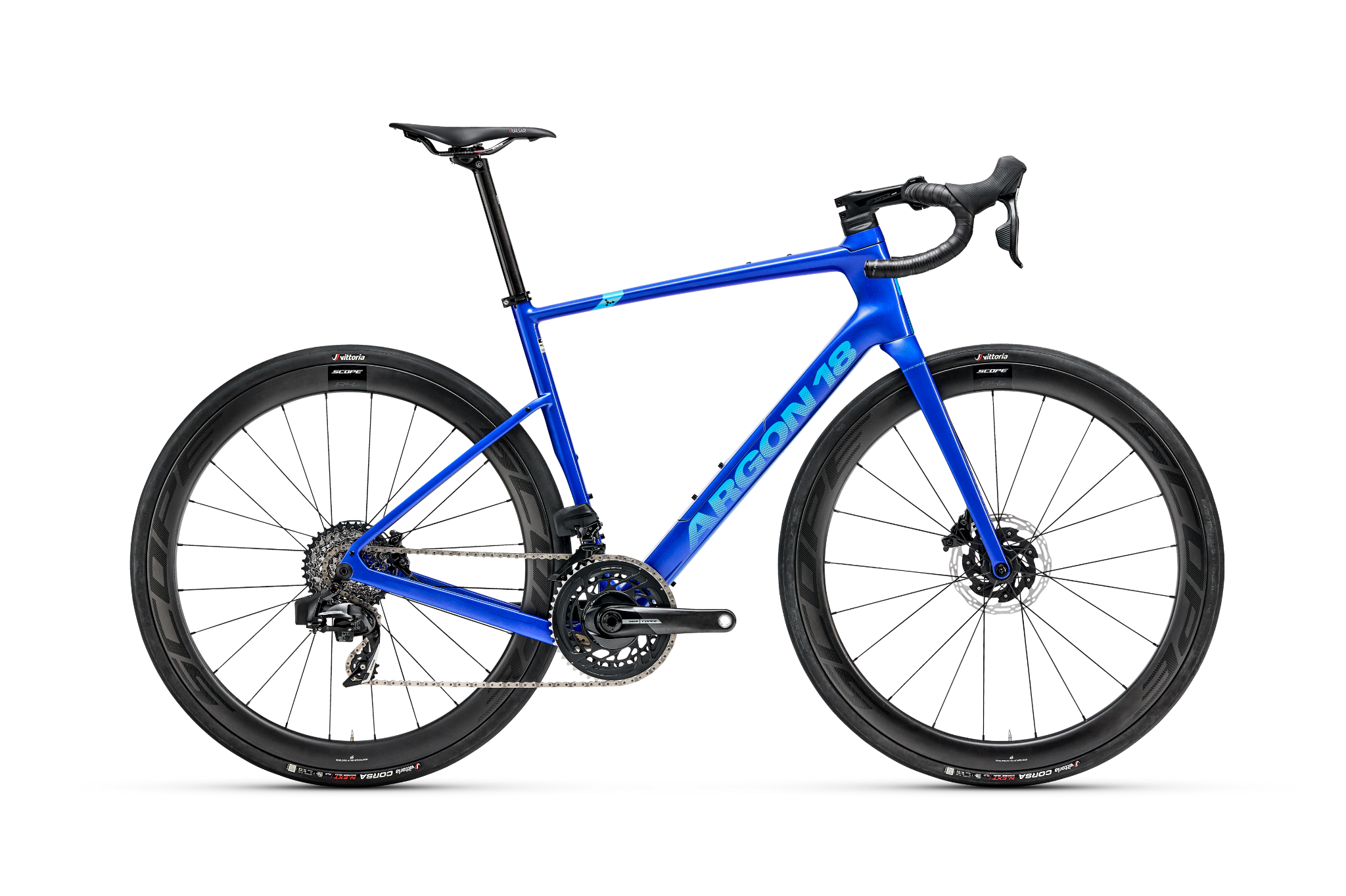

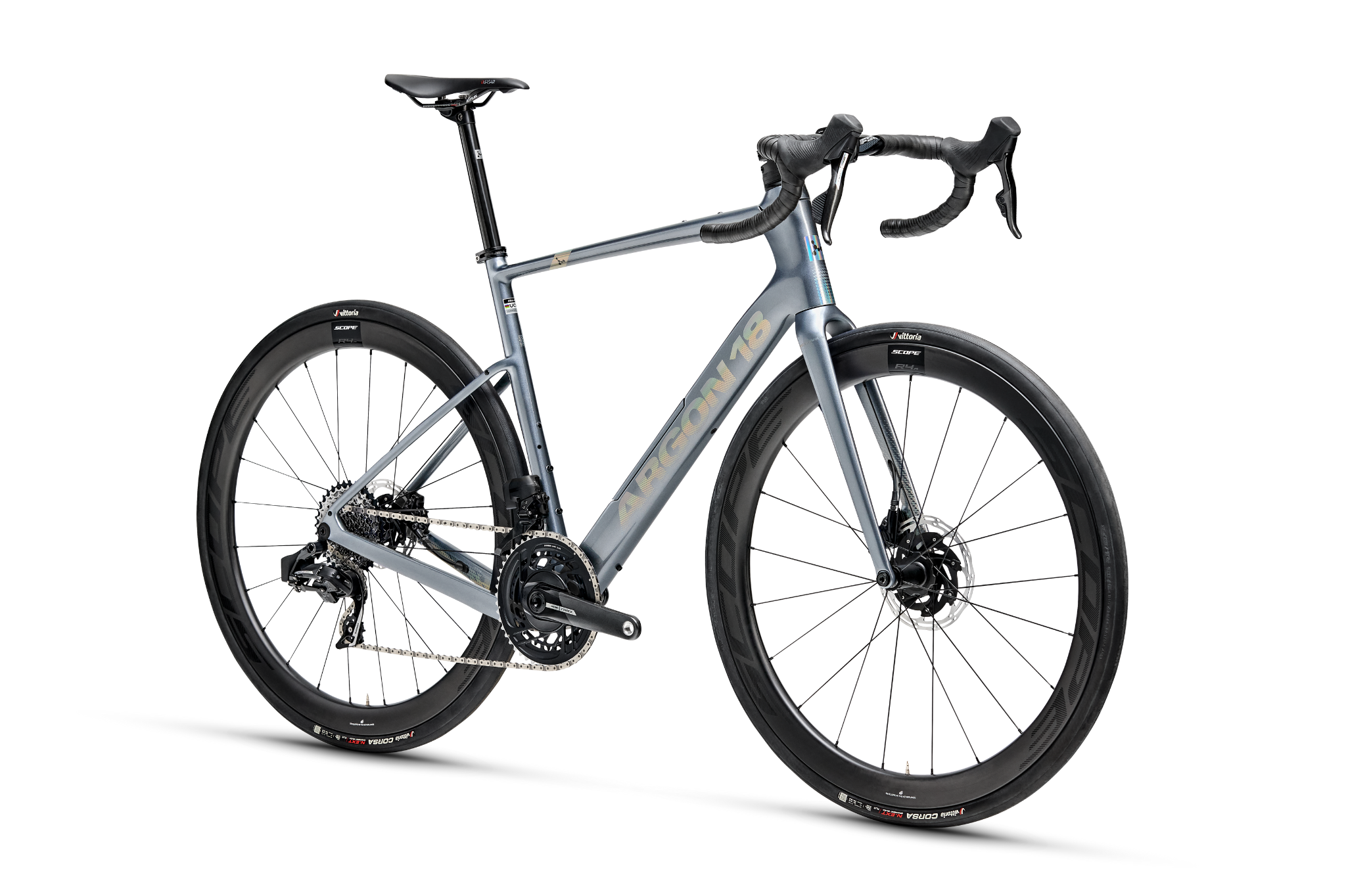

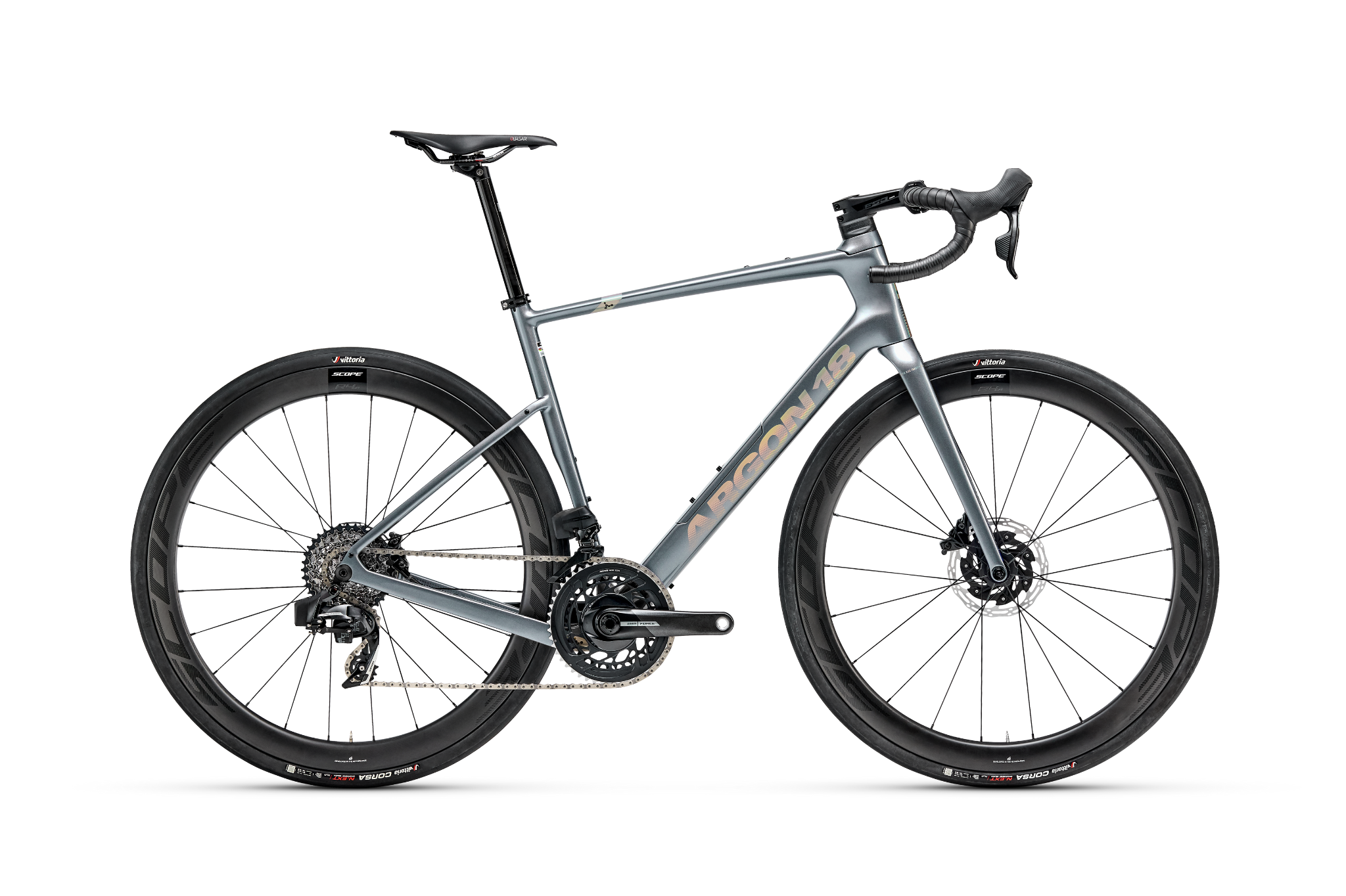

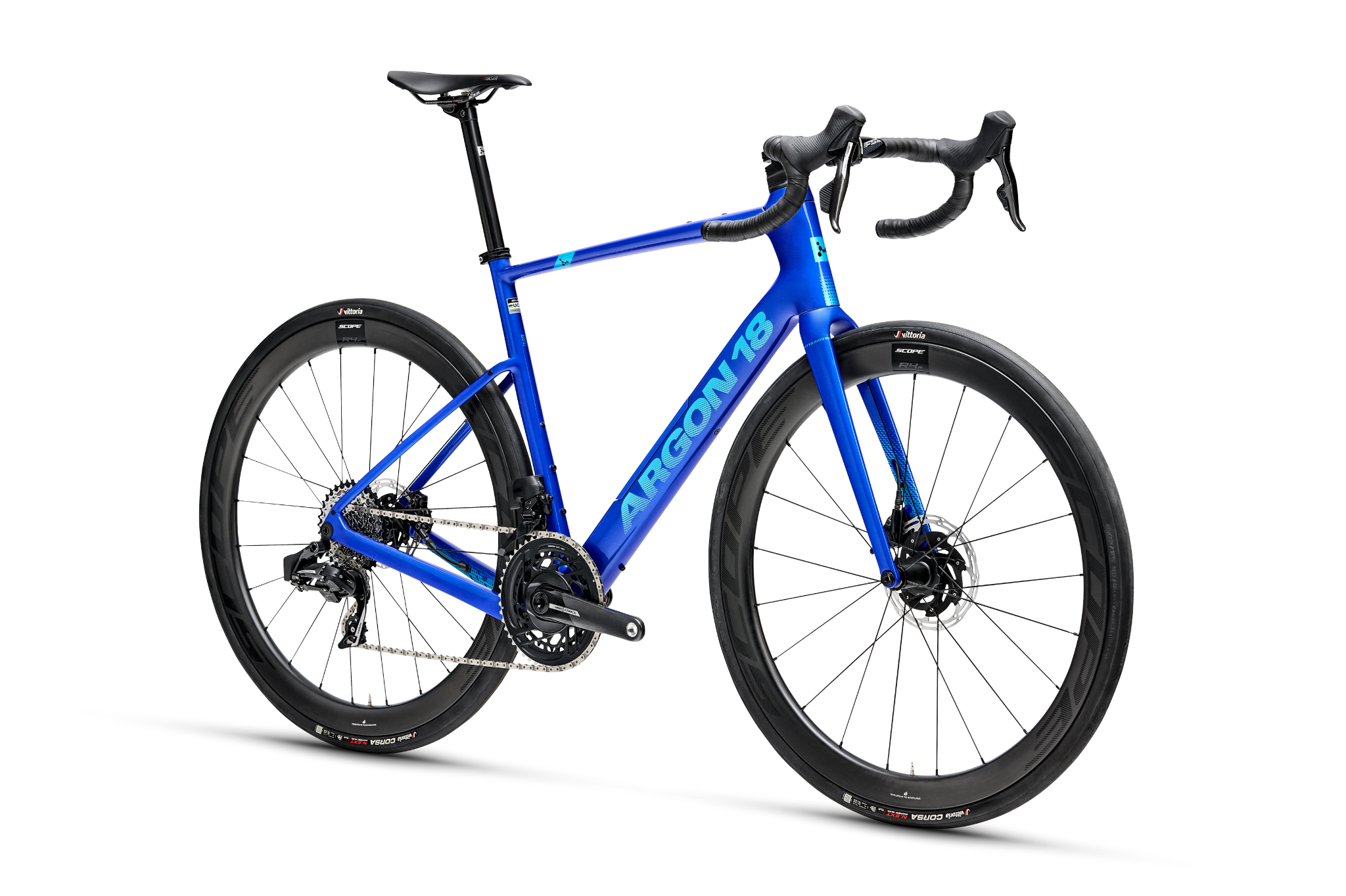

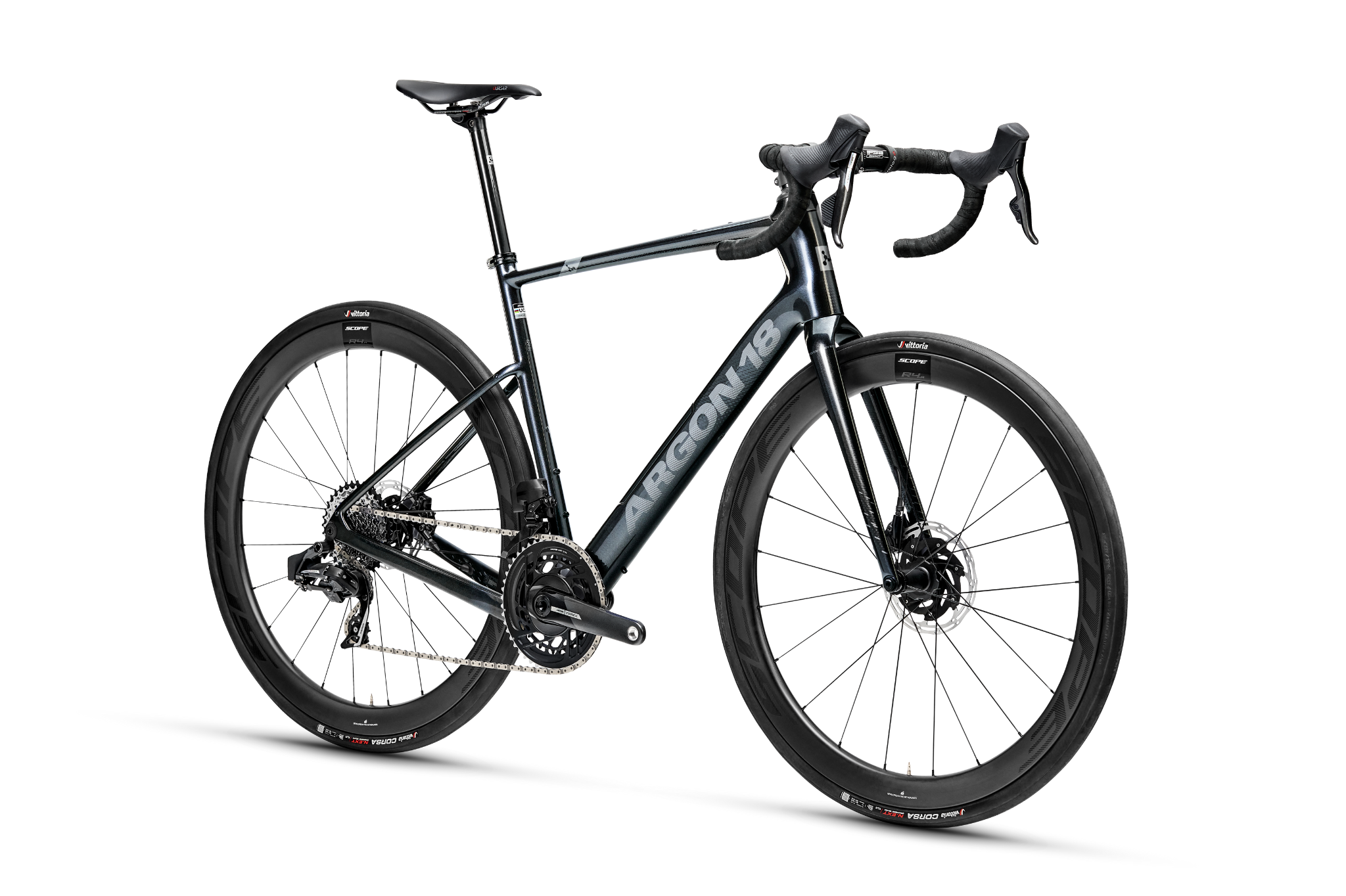

Argon 18
Krypton SRAM Force AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 605mm | 584mm | 563mm | 628mm | 543mm | 523mm |
| Reach | 395mm | 386mm | 377mm | 406mm | 367mm | 357mm |
| Headtube length | 186mm | 164mm | 142mm | 208mm | 123mm | 106mm |
| Headtube angle | 72.3deg | 72.3deg | 72.3deg | 72.8deg | 71.5deg | 70.6deg |
| BB height | — | — | — | — | — | — |
| BB drop | 78mm | 78mm | 78mm | 78mm | 80mm | 80mm |
| Trail | — | — | — | — | — | — |
| Fork length | 385mm | 385mm | 385mm | 385mm | 385mm | 385mm |
| Fork offset | 46mm | 46mm | 46mm | 46mm | 52mm | 52mm |
| Front center | 605mm | 590mm | 574mm | 618mm | 569mm | 560mm |
| Chainstay length | 415mm | 415mm | 415mm | 415mm | 415mm | 415mm |
| Wheelbase | 1020mm | 1005mm | 989mm | 1033mm | 984mm | 975mm |
| Top tube | 580mm | 558mm | 537mm | 604mm | 516mm | 496mm |
| Standover height | 801mm | 770mm | 738mm | 832mm | 704mm | 675mm |
| Seat tube length | 555mm | 520mm | 485mm | 590mm | 450mm | 420mm |
| Seat tube angle | 73.1deg | 73.7deg | 74.3deg | 72.5deg | 74.9deg | 75.5deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | 172.5mm | 172.5mm | 170mm | 175mm | 170mm | 165mm |
| Stem length | 110mm | 100mm | 90mm | 110mm | 80mm | 70mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm | 400mm | 380mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Argon 18 Krypton (carbon)
Suspension
Fork
Argon 18 Krypton (carbon)
Brakes
Front brake
SRAM Force hydraulic disc
Rear brake
SRAM Force hydraulic disc
Front rotor
SRAM Centerlock Centerline XR, 160mm
Rear rotor
SRAM Centerlock Centerline XR, 140mm
Drivetrain
Shift levers
SRAM Force AXS
Rear derailleur
SRAM Force AXS E1
Front derailleur
SRAM Force AXS E1
Cassette
SRAM XG-1270 12-speed, 10-33T (XDR)
Chain
SRAM Force 12-speed, 114L
Crankset
SRAM Force DUB 48/35
Bottom bracket
TOKEN DUB T47
Cockpit
Stem
FSA Energy
Handlebars
FSA Energy SCR Compact
Grips
Ciclovation Leather Touch Tornado Gloss (bar tape)
Saddle
Repente Quasar
Seatpost
Argon 18 TDS-C
Wheels & Tires
Front wheel
Hunt 4 Season All-Road (Centerlock), 12x100mm
Rear wheel
Hunt 4 Season All-Road (Centerlock), 12x142mm, XDR
Front tire
Vittoria Rubino Pro 700x30c
Rear tire
Vittoria Rubino Pro 700x30c
