3T

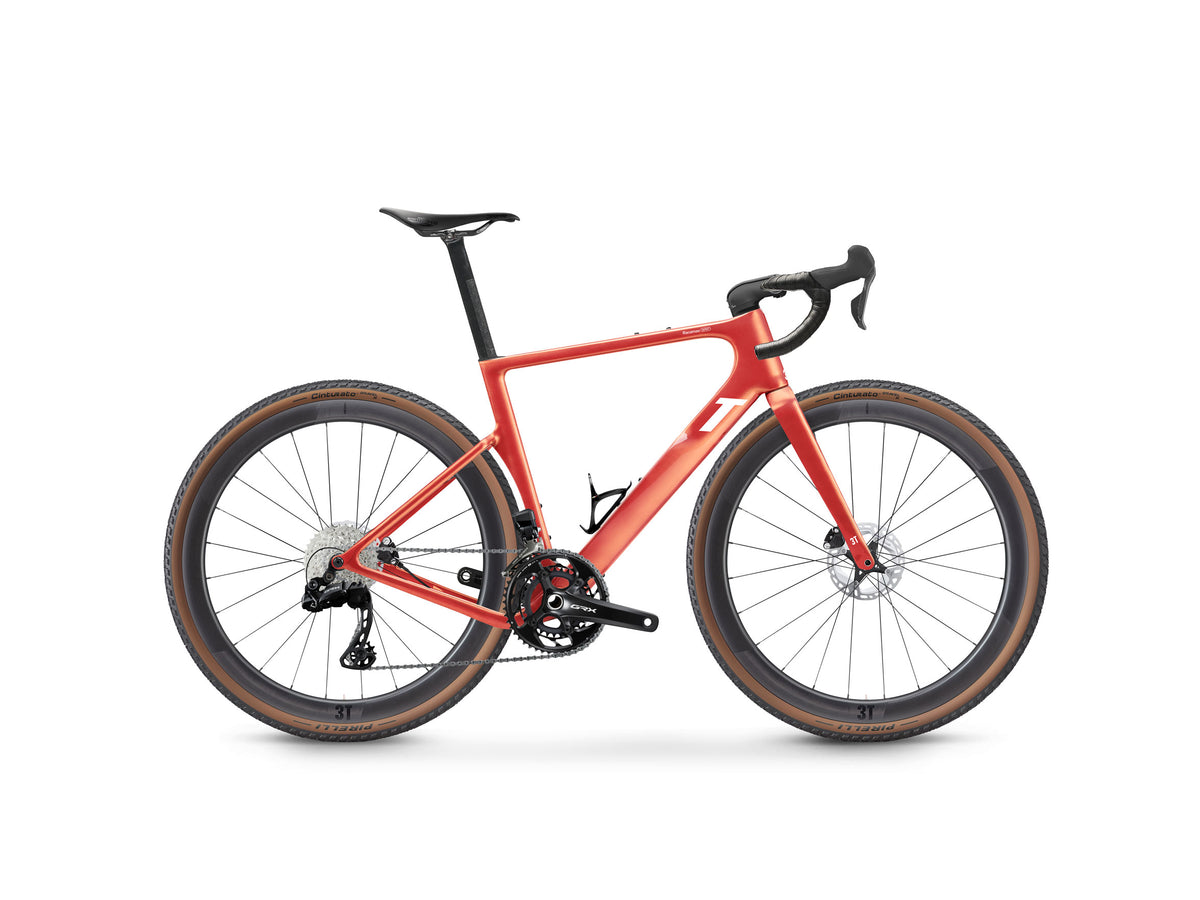

RaceMax WPNT GRX Di2 2x12 Discus 40|30
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 51 | 54 | 56 | 58 | 61 | XXS | L | M | S | XL | XS | XXL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 544mm | 566mm | 586mm | 606mm | 634mm | 522mm | — | — | — | — | — | — |
| Reach | 364mm | 374mm | 382mm | 390mm | 401mm | 353mm | — | — | — | — | — | — |
| Headtube length | 147mm | 161mm | 180mm | 201mm | 230mm | 125mm | — | — | — | — | — | — |
| Headtube angle | 69.2deg | 70.7deg | 71.7deg | 72.2deg | 72.2deg | 68.7deg | — | — | — | — | — | — |
| BB height | 272mm | 272mm | 274mm | 276mm | 276mm | 272mm | — | — | — | — | — | — |
| BB drop | 77mm | 77mm | 75mm | 73mm | 73mm | 77mm | — | — | — | — | — | — |
| Trail | 67mm | 65mm | 59mm | 56mm | 56mm | 71mm | — | — | — | — | — | — |
| Fork length | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | — | — | — | — | — | — |
| Fork offset | 61mm | 54mm | 54mm | 53mm | 53mm | 61mm | — | — | — | — | — | — |
| Front center | 612mm | 607mm | 612mm | 622mm | 642mm | 597mm | — | — | — | — | — | — |
| Chainstay length | 418mm | 418mm | 418mm | 418mm | 418mm | 418mm | — | — | — | — | — | — |
| Wheelbase | 1018mm | 1013mm | 1019mm | 1028mm | 1048mm | 1003mm | — | — | — | — | — | — |
| Top tube | 518mm | 536mm | 549mm | 563mm | 582mm | 501mm | — | — | — | — | — | — |
| Standover height | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube length | 463mm | 490mm | 518mm | 545mm | 572mm | 436mm | — | — | — | — | — | — |
| Seat tube angle | 74deg | 74deg | 74deg | 74deg | 74deg | 74deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 51 | 54 | 56 | 58 | 61 | XXS | L | M | S | XL | XS | XXL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 172.5mm | 170mm | 170mm | 172.5mm | 165mm | 175mm |
| Stem length | — | — | — | — | — | — | 100mm | 90mm | 80mm | 110mm | — | — |
| Handlebar width | — | — | — | — | — | — | 420mm | 400mm | 400mm | 420mm | 400mm | 440mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
3T RaceMax Integrale UDH
Suspension
Fork
3T Fango RaceMax Integrale
Brakes
Front brake
Shimano GRX BR-RX400 hydraulic disc
Rear brake
Shimano GRX BR-RX400 hydraulic disc
Front rotor
Shimano SM-RT64 160mm
Rear rotor
Shimano SM-RT64 160mm
Drivetrain
Shift levers
Shimano GRX Di2 ST-RX825, 12-speed shift/brake levers
Rear derailleur
Shimano GRX Di2 RD-RX825, 12-speed
Front derailleur
Shimano GRX Di2 FD-RX825, 12-speed
Cassette
Shimano CS-HG710-12, 12-speed, 11-36T
Chain
Shimano 12-speed chain (model not specified)
Crankset
Shimano GRX FC-RX610-2, 46/30, 12-speed (XS: 165mm; S & M: 170mm; L & XL: 172.5mm; XXL: 175mm)
Cockpit
Stem
3T More (K-Edge GPS mount included) (S: 80mm; M: 90mm; L: 100mm; XL: 110mm)
Handlebars
3T Aeroghiaia Integrale LTD (XS/S/M: 40cm; L/XL: 42cm; XXL: 44cm)
Saddle
San Marco Shortfit or San Marco Shortfit 2.0 Off Road (depending on availability)
Seatpost
3T RaceMax seatpost for Ritchey clamp
Wheels & Tires
Front wheel
3T Discus 40|30 wheelset
Rear wheel
3T Discus 40|30 wheelset
Front tire
Pirelli Cinturato Gravel H 700x40
Rear tire
Pirelli Cinturato Gravel H 700x40
