3T

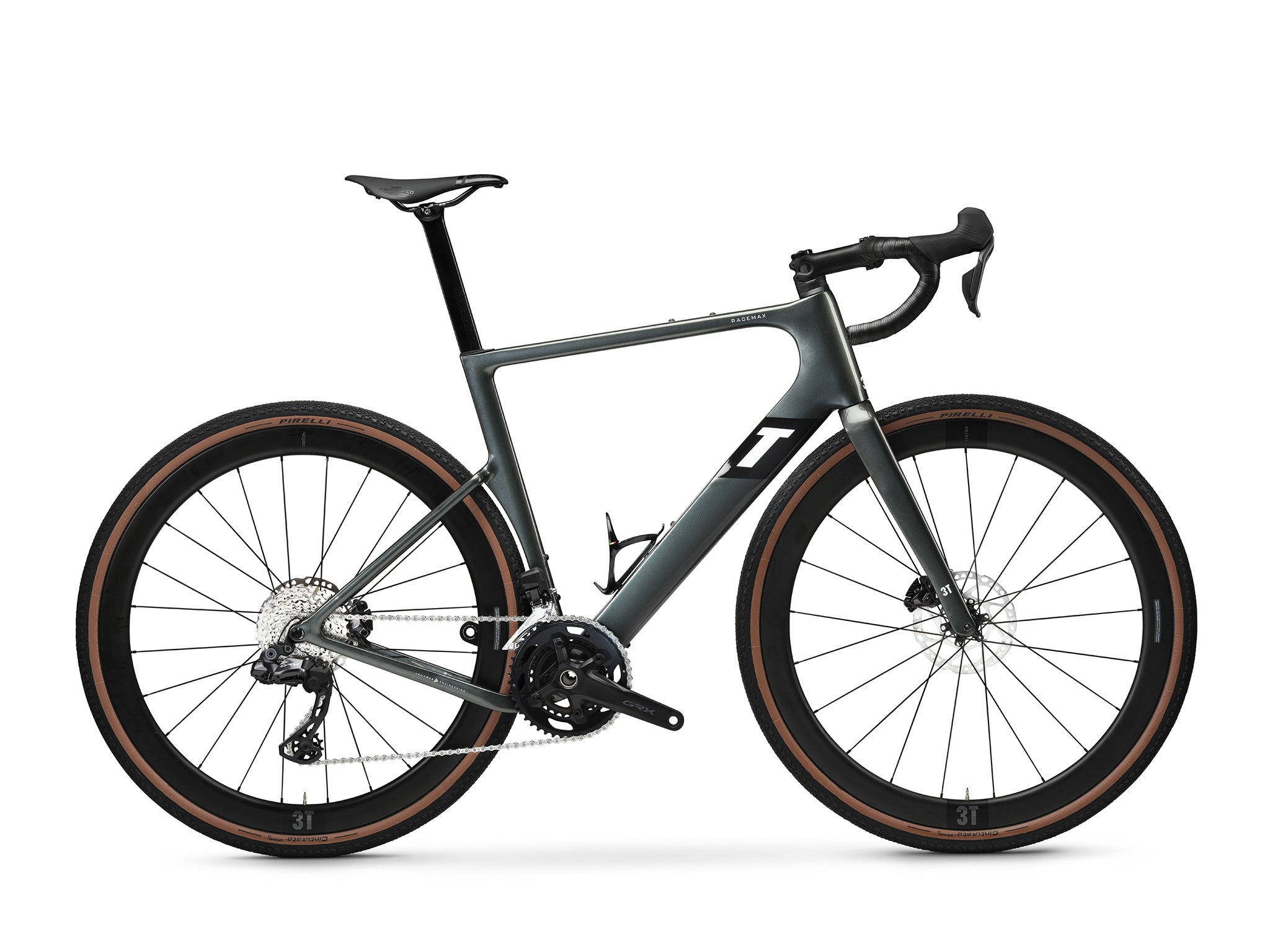

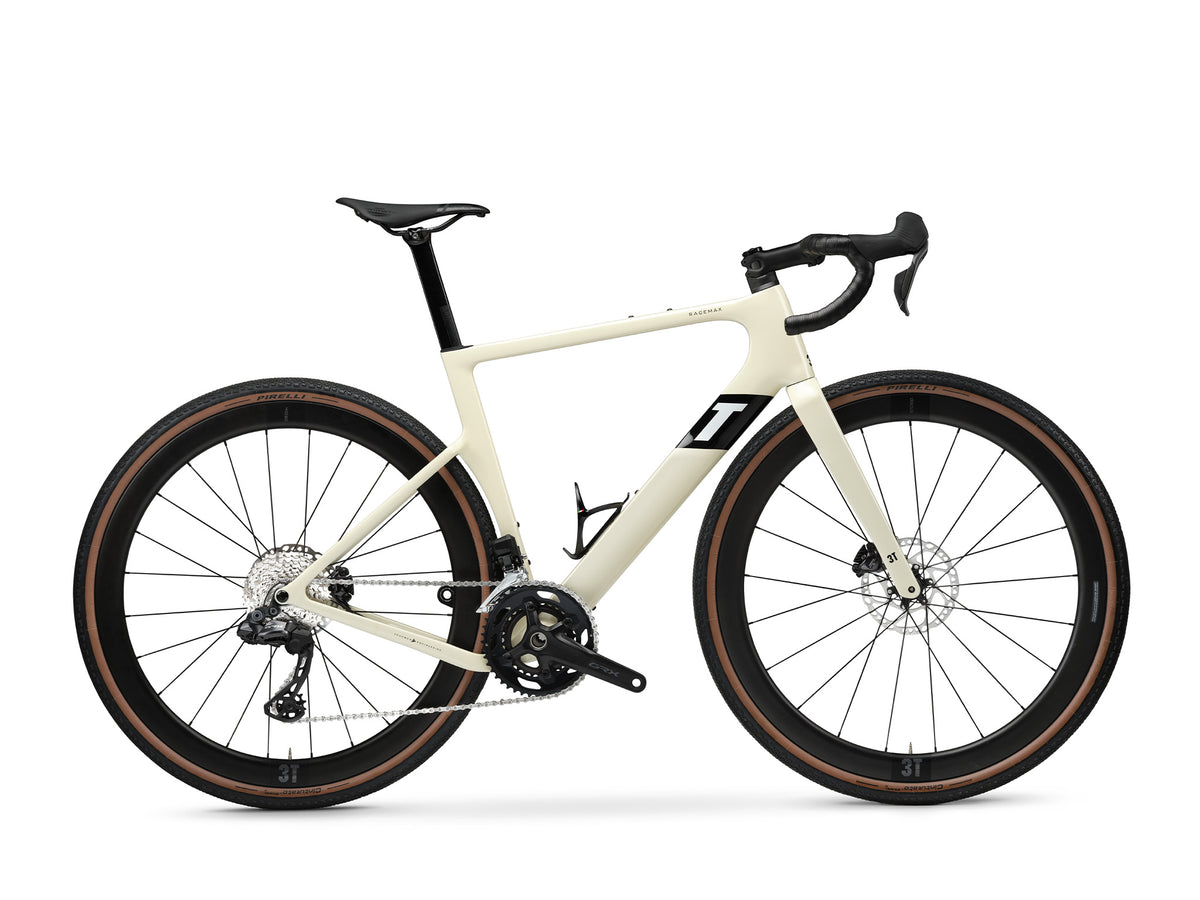

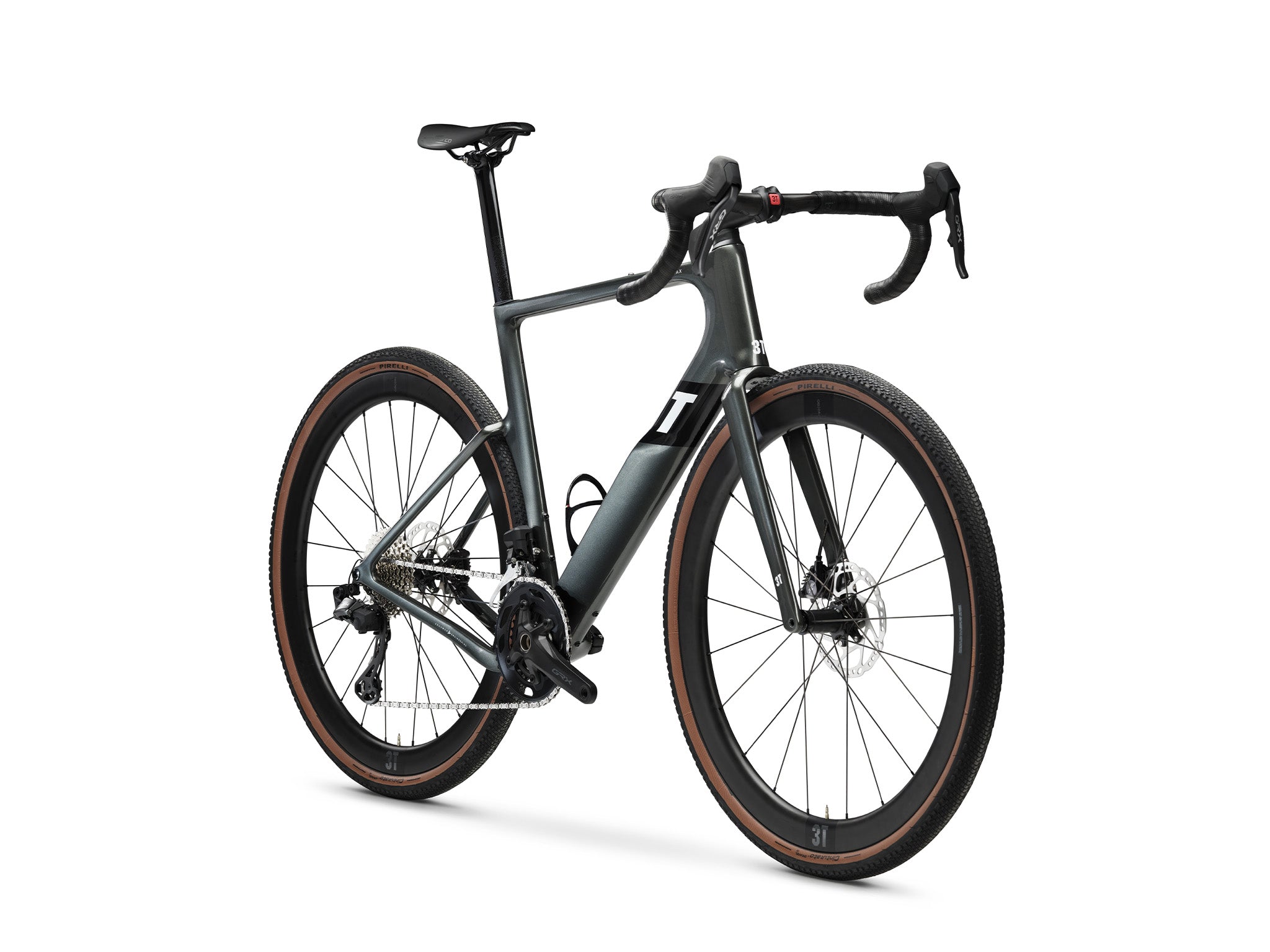

RaceMax Integrale WPNT GRX Di2 2x12 700c
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 51 | 54 | 56 | 58 | 61 | XXS | 48 |
|---|---|---|---|---|---|---|---|
| Stack | 544mm | 566mm | 586mm | 606mm | 634mm | 522mm | — |
| Reach | 364mm | 374mm | 382mm | 390mm | 401mm | 353mm | — |
| Headtube length | 147mm | 161mm | 180mm | 201mm | 230mm | 125mm | — |
| Headtube angle | 69.2deg | 70.7deg | 71.7deg | 72.2deg | 72.2deg | 68.7deg | — |
| BB height | 272mm | 272mm | 274mm | 276mm | 276mm | 272mm | — |
| BB drop | 77mm | 77mm | 75mm | 73mm | 73mm | 77mm | — |
| Trail | 67mm | 65mm | 59mm | 56mm | 56mm | 71mm | — |
| Fork length | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | — |
| Fork offset | 61mm | 54mm | 54mm | 53mm | 53mm | 61mm | — |
| Front center | 612mm | 607mm | 612mm | 622mm | 642mm | 597mm | — |
| Chainstay length | 418mm | 418mm | 418mm | 418mm | 418mm | 418mm | — |
| Wheelbase | 1018mm | 1013mm | 1019mm | 1028mm | 1048mm | 1003mm | — |
| Top tube | 518mm | 536mm | 549mm | 563mm | 582mm | 501mm | — |
| Standover height | — | — | — | — | — | — | — |
| Seat tube length | 463mm | 490mm | 518mm | 545mm | 572mm | 436mm | — |
| Seat tube angle | 74deg | 74deg | 74deg | 74deg | 74deg | 74deg | — |
Spec geometry
| Geometry | 51 | 54 | 56 | 58 | 61 | XXS | 48 |
|---|---|---|---|---|---|---|---|
| Crank length | 170mm | 172.5mm | 172.5mm | 175mm | 175mm | — | 165mm |
| Stem length | 80mm | 90mm | 100mm | 110mm | 120mm | — | 70mm |
| Handlebar width | 400mm | 420mm | 420mm | 440mm | 440mm | — | 380mm |
| Handlebar reach | 77mm | 77mm | 77mm | 77mm | 77mm | — | 77mm |
| Handlebar drop | 119mm | 119mm | 119mm | 119mm | 119mm | — | 119mm |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
3T RaceMax (Unidirectional pre-preg carbon, high-modulus/high-strength performance blend layup)
Suspension
Fork
3T Fango RaceMax Integrale w/ compact crown
Brakes
Front brake
Shimano GRX BR-RX400 hydraulic disc
Rear brake
Shimano GRX BR-RX400 hydraulic disc
Front rotor
Shimano SM-RT64, 160mm
Rear rotor
Shimano SM-RT64, 160mm
Drivetrain
Shift levers
Shimano GRX Di2 ST-RX825, 12-speed
Rear derailleur
Shimano GRX Di2 RD-RX825, 12-speed
Front derailleur
Shimano GRX Di2 FD-RX825, 12-speed
Cassette
Shimano CS-HG710-12, 12-speed, 11-36T
Chain
Shimano 12-speed chain (not specified)
Crankset
Shimano GRX FC-RX610-2, 46/30, 12-speed (48: 165mm; 51: 170mm; 54&56: 172.5mm; 58&61: 175mm)
Bottom bracket
Not specified
Cockpit
Stem
3T More (K-Edge GPS mount included) - (S: 80mm; M: 90mm; L: 100mm; XL: 110mm)
Handlebars
3T Superergo Integrale LTD (48: 38cm; 51: 40cm; 54&56: 42cm; 58&61: 44cm)
Grips
3T Prendo Speed bar tape
Saddle
San Marco Shortfit or San Marco Shortfit 2.0 Off Road (depending on availability)
Seatpost
3T RaceMax seatpost for Ritchey clamp
Wheels & Tires
Front wheel
3T Discus 40I30 or Zipp 303S (depending on availability)
Rear wheel
3T Discus 40I30 or Zipp 303S (depending on availability)
Front tire
Pirelli Cinturato Gravel H, 700x40
Rear tire
Pirelli Cinturato Gravel H, 700x40
