3T

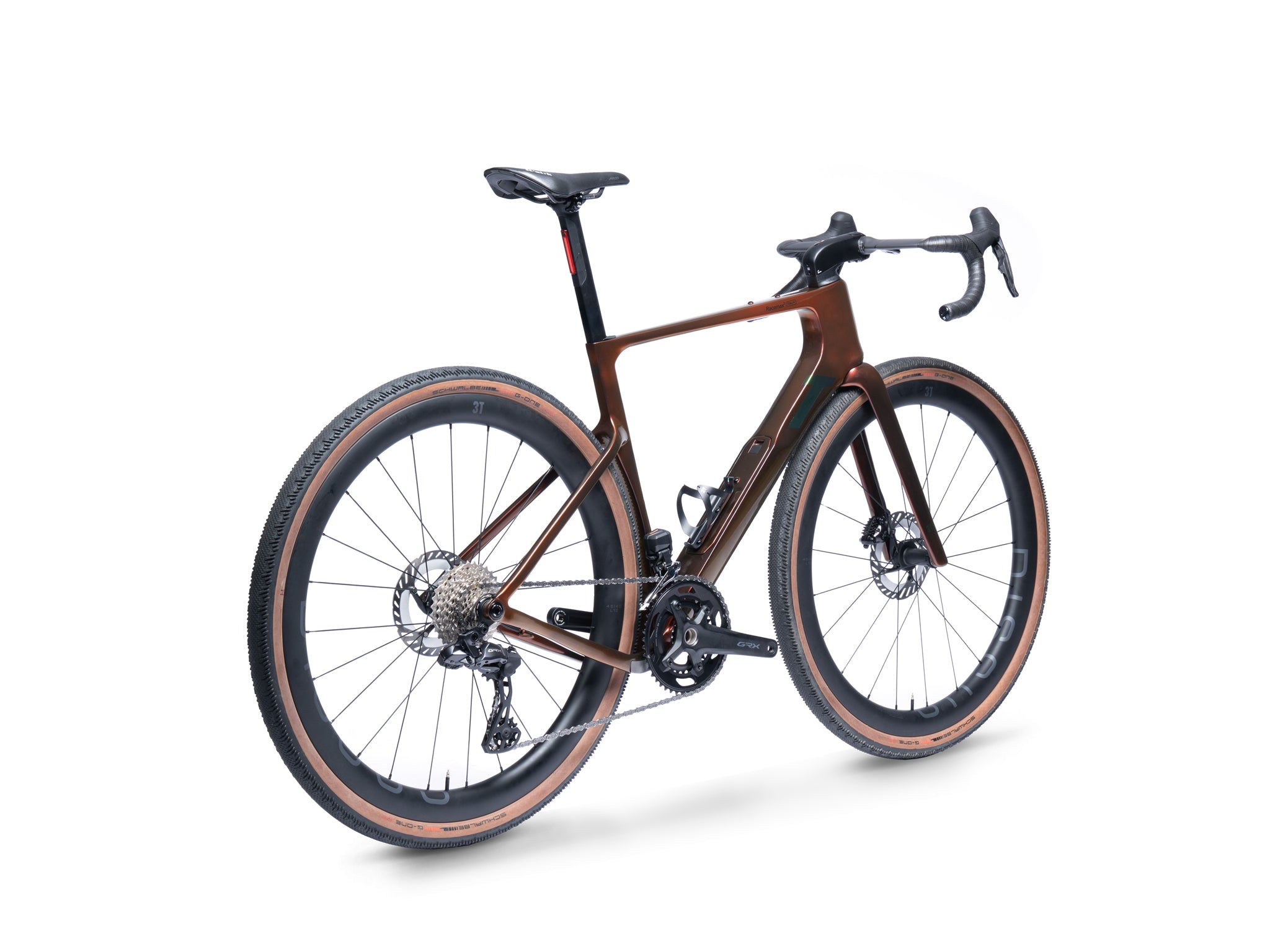

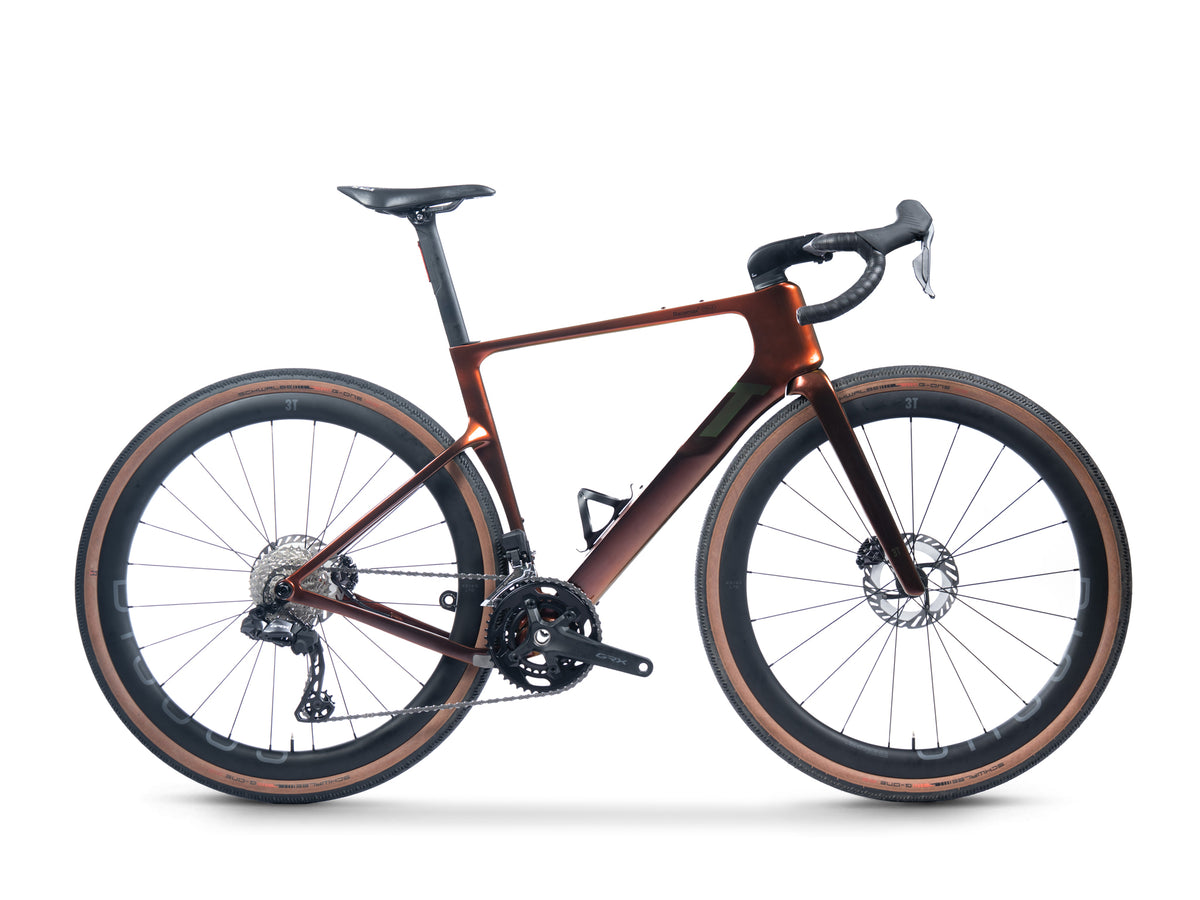

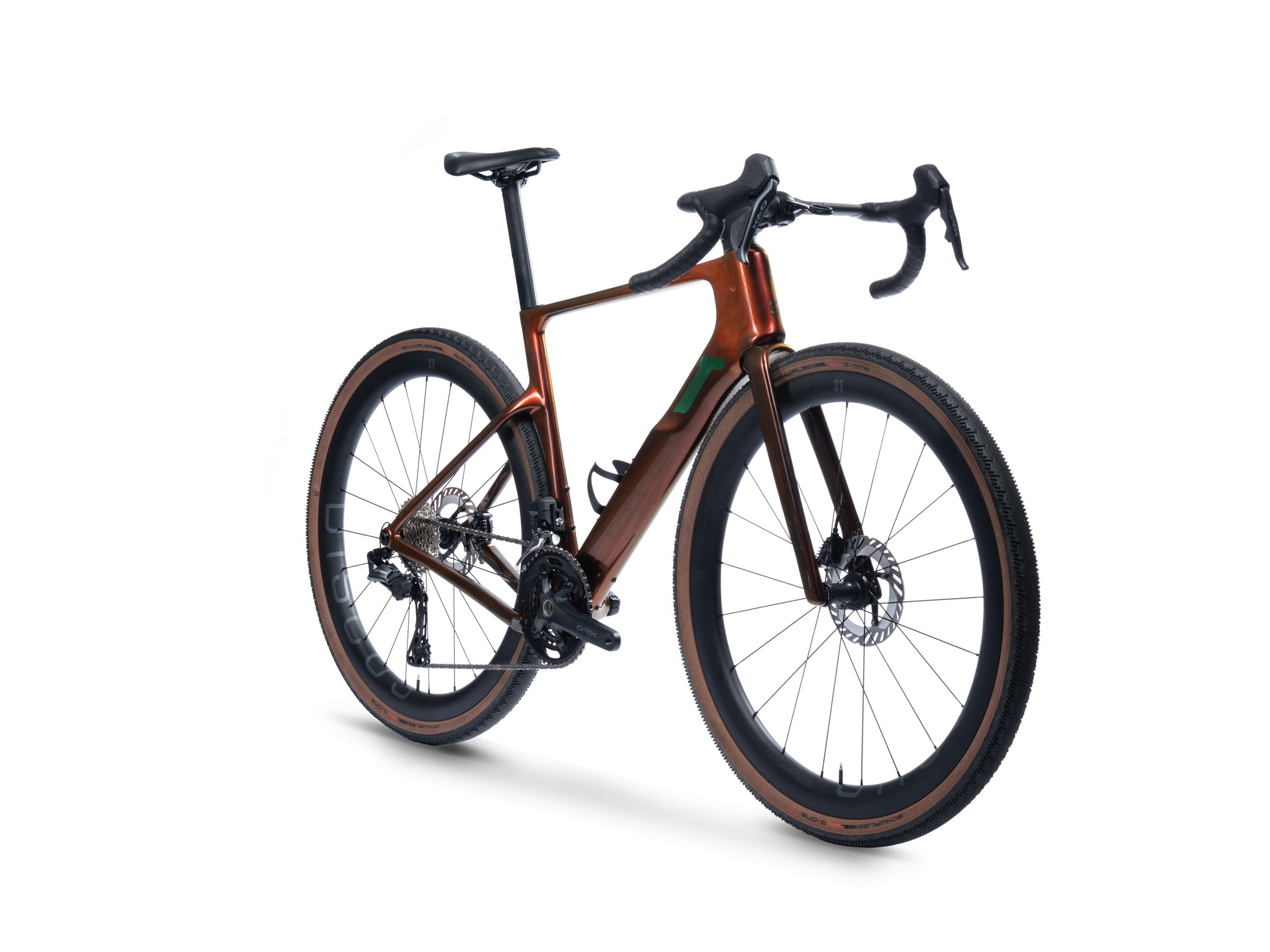

RaceMax 2 Italia GRX Di2 2x12 Discus 45|40
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 589mm | 569mm | 547mm | 609mm |
| Reach | 385mm | 377mm | 367mm | 393mm |
| Headtube length | 173mm | 152mm | 138mm | 197mm |
| Headtube angle | 71.5deg | 71.5deg | 70.5deg | 71.5deg |
| BB height | — | — | — | — |
| BB drop | 79mm | 79mm | 79mm | 76mm |
| Trail | — | — | — | — |
| Fork length | 383mm | 383mm | 383mm | 383mm |
| Fork offset | — | — | — | — |
| Front center | 622mm | 607mm | 609mm | 636mm |
| Chainstay length | 420mm | 420mm | 420mm | 420mm |
| Wheelbase | 1029mm | 1015mm | 1017mm | 1045mm |
| Top tube | 552mm | 538mm | 522mm | 566mm |
| Standover height | — | — | — | — |
| Seat tube length | 510mm | 491mm | 463mm | 537mm |
| Seat tube angle | 74deg | 74deg | 74deg | 74deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 172.5mm | 170mm | 170mm | 172.5mm |
| Stem length | 100mm | 90mm | 80mm | 110mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
3T RaceMax2 ITALIA Integrale (UDH), integrated storage with Fidlock closure system
Suspension
Fork
3T Fango RaceMax2 Integrale w/ compact crown
Brakes
Front brake
Shimano GRX BR-RX820 hydraulic disc
Rear brake
Shimano GRX BR-RX820 hydraulic disc
Front rotor
Shimano RT-CL800 160mm
Rear rotor
Shimano RT-CL800 160mm
Drivetrain
Shift levers
Shimano GRX Di2 ST-RX825 12s (shift/brake levers)
Rear derailleur
Shimano GRX Di2 RD-RX825 12s
Front derailleur
Shimano GRX Di2 FD-RX825 12s
Cassette
Shimano Ultegra CS-R8101-12 10-34T
Chain
null
Crankset
Shimano GRX FC-RX820-2 12s 48/31 (S&M: 170mm; L&XL: 172.5mm)
Bottom bracket
null
Cockpit
Stem
3T More (K-Edge GPS mount included) (S: 80mm; M: 90mm; L: 100mm; XL: 110mm)
Handlebars
3T Aeroghiaia Integrale LTD (S&M: 40cm; L&XL: 42cm)
Saddle
Fizik Vento Argo R1 Light 140mm
Seatpost
null
Wheels & Tires
Front wheel
3T Discus 45|40 LTD
Rear wheel
3T Discus 45|40 LTD
Front tire
Schwalbe G-One RS 700×45
Rear tire
Schwalbe G-One RS 700×45
