3T

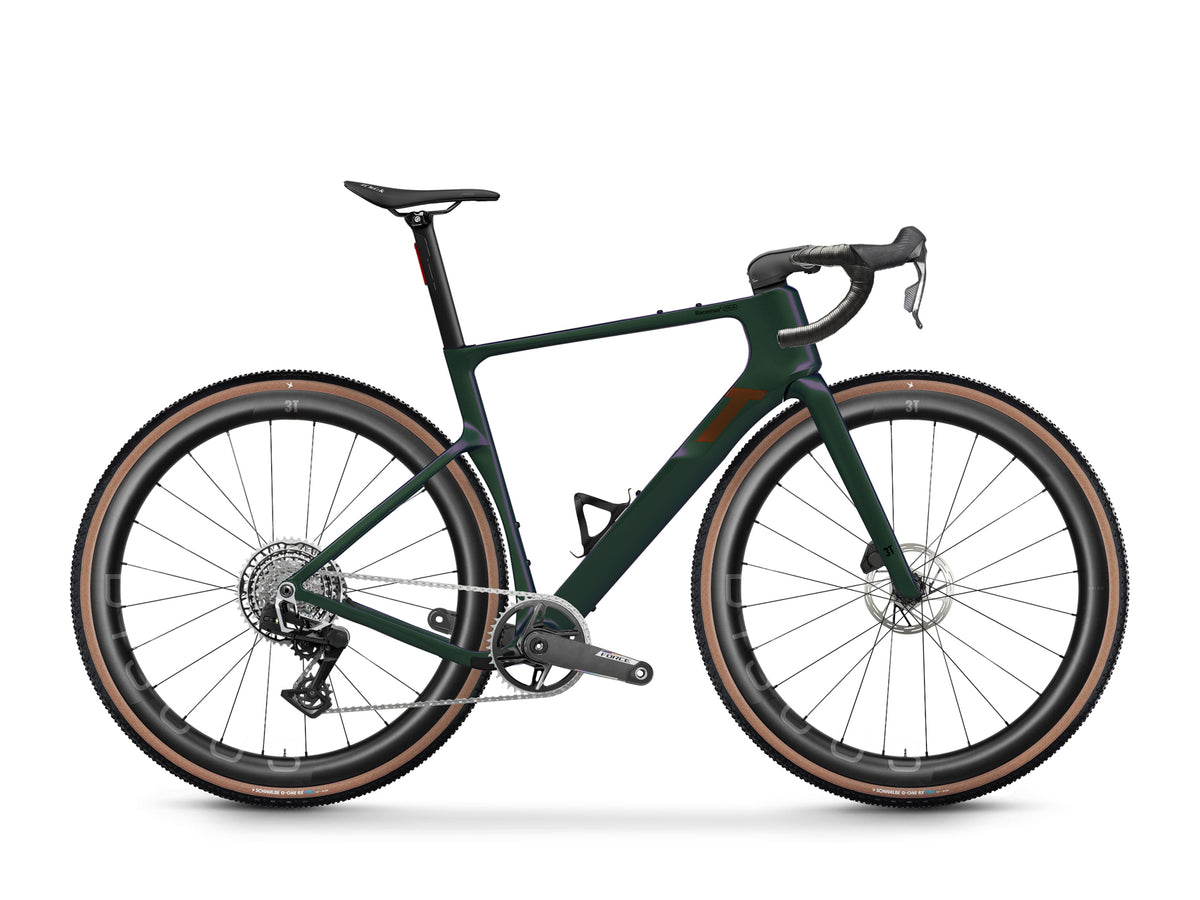

RaceMax 2 Italia Force XPLR AXS 1x13 Discus 45|40
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 589mm | 569mm | 547mm | 609mm |
| Reach | 385mm | 377mm | 367mm | 393mm |
| Headtube length | 173mm | 152mm | 138mm | 197mm |
| Headtube angle | 71.5deg | 71.5deg | 70.5deg | 71.5deg |
| BB height | — | — | — | — |
| BB drop | 79mm | 79mm | 79mm | 76mm |
| Trail | — | — | — | — |
| Fork length | 383mm | 383mm | 383mm | 383mm |
| Fork offset | — | — | — | — |
| Front center | 622mm | 607mm | 609mm | 636mm |
| Chainstay length | 420mm | 420mm | 420mm | 420mm |
| Wheelbase | 1029mm | 1015mm | 1017mm | 1045mm |
| Top tube | 552mm | 538mm | 522mm | 566mm |
| Standover height | — | — | — | — |
| Seat tube length | 510mm | 491mm | 463mm | 537mm |
| Seat tube angle | 74deg | 74deg | 74deg | 74deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | 100mm | 90mm | 80mm | 110mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Racemax2 ITALIA Integrale (UDH). Integrated storage with Fidlock closure system
Suspension
Fork
3T Fango RaceMax2 Integrale w/ compact crown
Brakes
Front brake
SRAM Force E1 AXS Hydraulic Disc
Rear brake
SRAM Force E1 AXS Hydraulic Disc
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
Sram Force AXS E1
Rear derailleur
Sram Force XPLR AXS E1 max 46T
Cassette
Sram Force XG 1371 E1 XPLR 10-46T
Chain
null
Crankset
null
Bottom bracket
null
Cockpit
Stem
3T More (K-Edge GPS mount included) - (S: 80mm - M:90mm - L: 100mm - XL: 110mm )
Handlebars
3T Aeroghiaia Integrale LTD (S&M: 40cm - L&XL: 42cm)
Saddle
Fizik Vento Argo R1 Light 140 mm
Seatpost
3T Racemax/Racemax2 ITALIA seatpost for Ritchey clamp with integrated light system
Wheels & Tires
Front wheel
3T Discus 45|40 LTD
Rear wheel
3T Discus 45|40 LTD
Front tire
Schwalbe G-One RS 700×45
Rear tire
Schwalbe G-One RS 700×45
