3T

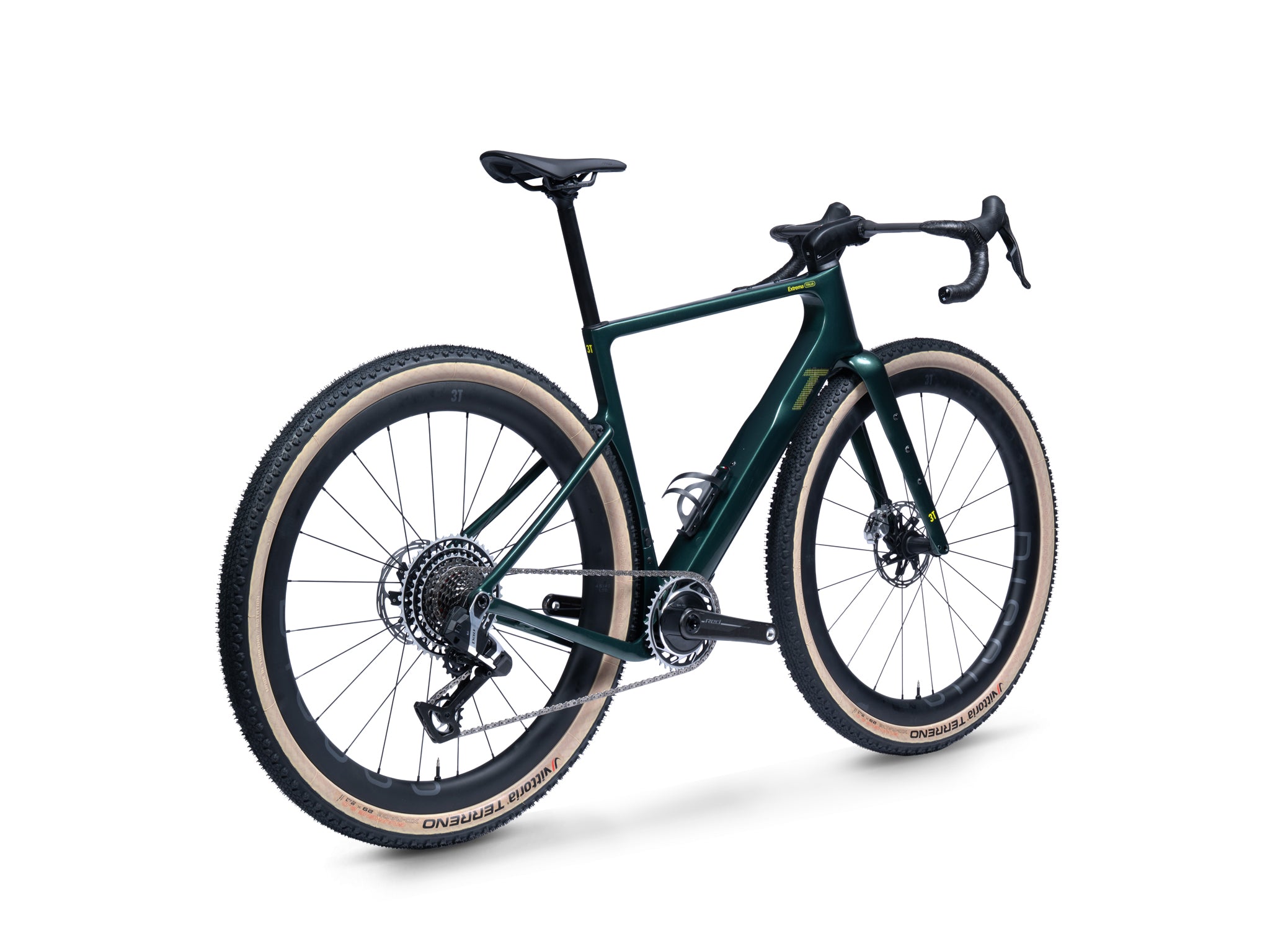

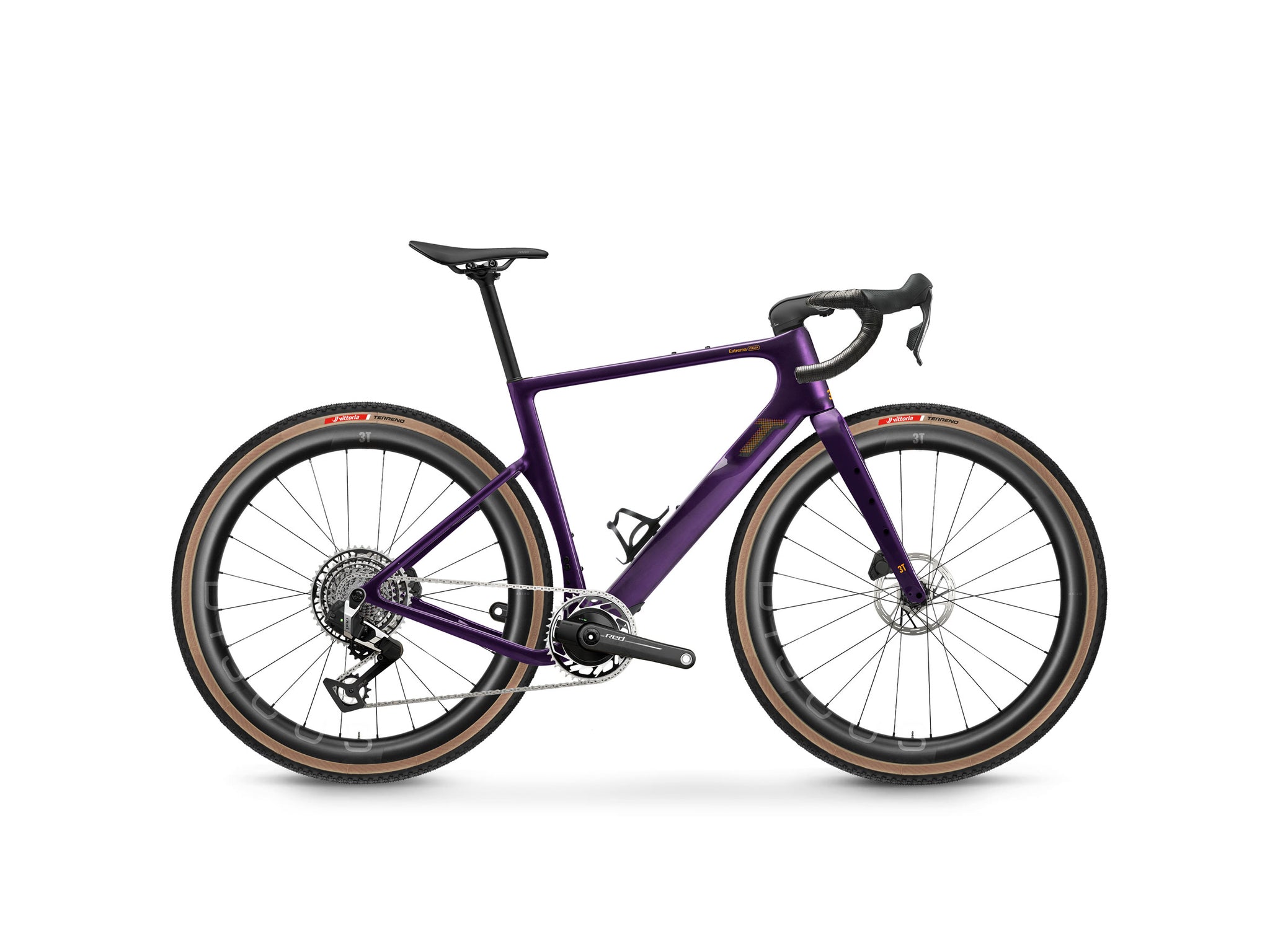

Extrema Italia SRAM Red XPLR PM AXS 1x13 Discus 45|40
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 590mm | 570mm | 547mm | 610mm |
| Reach | 376mm | 368mm | 358mm | 384mm |
| Headtube length | 175mm | 158mm | 142mm | 196mm |
| Headtube angle | 71.5deg | 70.5deg | 69.1deg | 72deg |
| BB height | 292mm | 292mm | 289mm | 294mm |
| BB drop | 76mm | 76mm | 79mm | 74mm |
| Trail | 61.5mm | 67.6mm | 63mm | 58.4mm |
| Fork length | 387mm | 387mm | 387mm | 387mm |
| Fork offset | 58.5mm | 59.1mm | 72.4mm | 58.2mm |
| Front center | 617mm | 612mm | 620mm | 626mm |
| Chainstay length | 437mm | 437mm | 437mm | 437mm |
| Wheelbase | 1040mm | 1036mm | 1044mm | 1050mm |
| Top tube | 561mm | 547mm | 529mm | 575mm |
| Standover height | — | — | — | — |
| Seat tube length | 521mm | 491mm | 466mm | 549mm |
| Seat tube angle | 73.5deg | 73.5deg | 73.5deg | 73.5deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 172.5mm | 170mm | 170mm | 172.5mm |
| Stem length | 100mm | 90mm | 80mm | 110mm |
| Handlebar width | 420mm | 400mm | 400mm | 420mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 0mm | 0mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Extrema ITALIA Integrale (UDH)
Suspension
Fork
3T Fango Extrema Integrale w/ compact crown and accessory mounts
Brakes
Front brake
Sram Red E1 Hydraulic Disc
Rear brake
Sram Red E1 Hydraulic Disc
Front rotor
Sram Paceline X 160mm
Rear rotor
Sram Paceline X 160mm
Drivetrain
Shift levers
Sram Red AXS E1 shift/brake levers
Rear derailleur
Sram Red XPLR AXS E1 max 46T
Cassette
Sram Red XG-1391 E1 XPLR 10-46T
Crankset
Sram Red E1 XPLR WIDE Power Meter 38T (S&M: 170mm - L&XL: 172.5mm)
Cockpit
Stem
3T More (K-Edge GPS mount included) - (S: 80mm - M: 90mm - L: 100mm - XL: 110mm)
Handlebars
3T Aeroghiaia Integrale LTD (S&M: 40cm - L&XL: 42cm)
Saddle
Fizik ARGO X1 140mm
Seatpost
3T Carbon 27.2 round seatpost - Zero offset
Wheels & Tires
Front wheel
3T Discus 45|40 LTD
Rear wheel
3T Discus 45|40 LTD
Front tire
Continental Terra Adventure 700x55
Rear tire
Continental Terra Adventure 700x55
